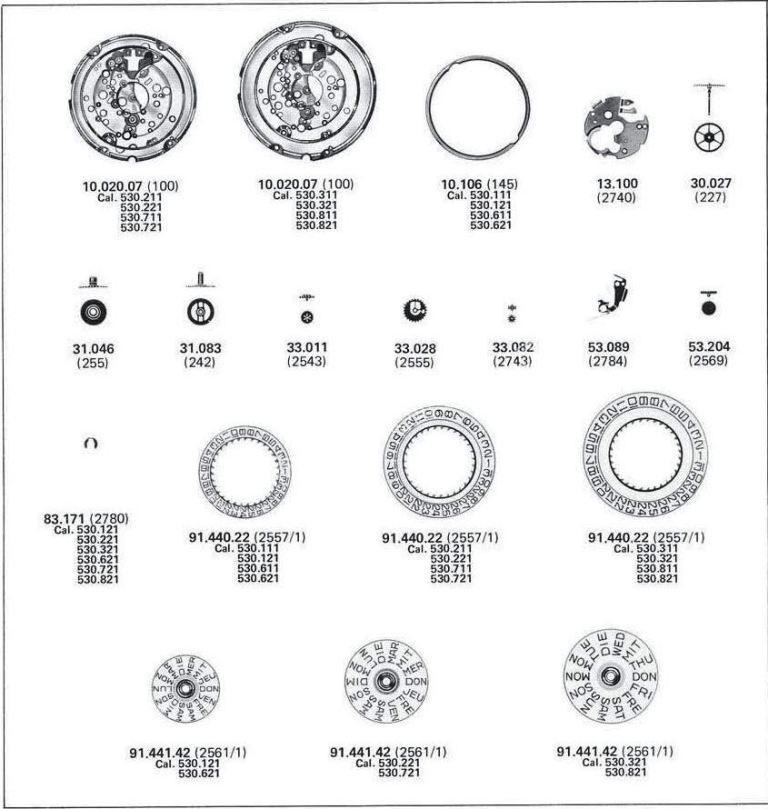

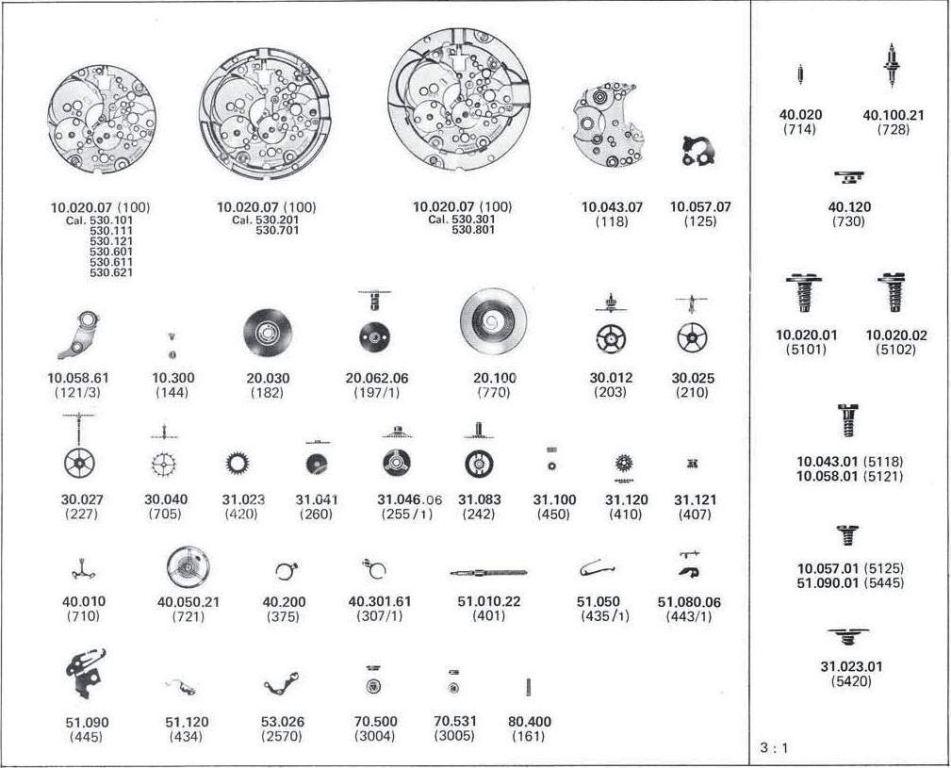

A Schild – AS Calibre 530.811 Watch spare parts
| A Schild – AS Calibre 530.811 – Part No. 100 Main plate Jewelled |
| A Schild – AS Calibre 530.811 – Part No.118 Combined bridge Jewelled |
| A Schild – AS Calibre 530.811 – Part No. 121/3 Balance bridge for Regulator |
| A Schild – AS Calibre 530.811 – Part No. 125 Pallet bridge Jewelled |
| A Schild – AS Calibre 530.811 – Part No. 144 Dial Fastener |
| A Schild – AS Calibre 530.811 – Part No. 145 Dial support |
| A Schild – AS Calibre 530.811 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 530.811 – Part No. 182 Barrel drum and cover |
| A Schild – AS Calibre 530.811 – Part No. 197/1 Barrel staff, Assembled with core and Ratchet wheel |
| A Schild – AS Calibre 530.811 – Part No. 203 Center wheel |
| A Schild – AS Calibre 530.811 – Part No. 210 Third wheel |
| A Schild – AS Calibre 530.811 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 530.811 – Part No. 242 Cannon pinion with driver |
| A Schild – AS Calibre 530.811 – Part No. 255/1 Hour wheel Assembled |
| A Schild – AS Calibre 530.811 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 530.811 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 530.811 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 530.811 – Part No. 401 Winding stem |
| A Schild – AS Calibre 530.811 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 530.811 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 530.811 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 530.811 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 530.811 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 530.811 – Part No. 434 Click spring |
| A Schild – AS Calibre 530.811 – Part No. 443 Setting lever |
| A Schild – AS Calibre 530.811 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 530.811 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 530.811 – Part No. 453 lntermediate Setting wheel |
| A Schild – AS Calibre 530.811 – Part No. 460 Crown wheel Rocker |
| A Schild – AS Calibre 530.811 – Part No. 465 Hand setting Train cover |
| A Schild – AS Calibre 530.811 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 530.811 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 530.811 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 530.811 – Part No. 770 Mainspring |
| A Schild – AS Calibre 530.811 – Part No. 2570 Double corrector operating lever |
| A Schild – AS Calibre 530.811 – Part No. 3004 Shock-Protecting device,Upper |
| A Schild – AS Calibre 530.811 – Part No. 3005 Shock-Protecting device,lower |

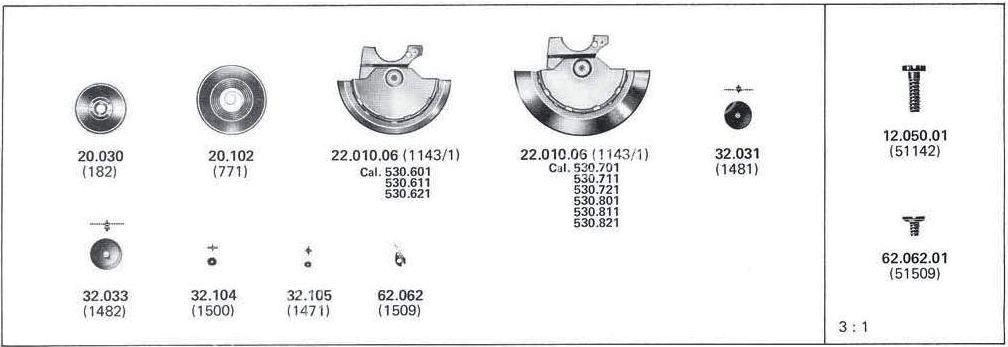

| A Schild – AS Calibre 530.811 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 530.811 – Part No. 1471 Stop pinion |
| A Schild – AS Calibre 530.811 – Part No. 1481 Reducrion Wheel |
| A Schild – AS Calibre 530.811 – Part No. 1482 Ratchet wheel Driving wheel |
| A Schild – AS Calibre 530.811 – Part No. 1500 Wig wag pinion |
| A Schild – AS Calibre 530.811 – Part No. 1509 Wig wag pinion spring |
| A Schild – AS Calibre 530.811 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 530.811 – Part No. 2555 Calender driving wheel |
| A Schild – AS Calibre 530.811 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 530.811 – Part No. 2569 Double corrector |
| A Schild – AS Calibre 530.811 – Part No. 2743 Date corrector lntermediate Setting wheel |
| A Schild – AS Calibre 530.811 – Part No. 2784 Double jumper |
A. Schild (AS) Calibre 530.811 Watch Spare Parts: Overview and Sourcing Guide
The A. Schild (AS) Calibre 530.811 is a Swiss-made manual winding mechanical movement, renowned for its precision and reliability. Operating at 21,600 vibrations per hour (3 Hz), this calibre includes a sweep seconds feature and an adjustable stud holder, popular among vintage watch collectors and horologists.
Key Technical Highlights
Calibre: AS 530.811
Movement Type: Mechanical, manual winding
Beat Rate: 21,600 vibrations per hour (3 Hz)
Functions: Sweep seconds, with adjustable stud holder
Jewels: 17 synthetic ruby jewels
Common Spare Parts and Components
Mainspring and Barrel: Genuine or New-Old-Stock (NOS) mainsprings ensure consistent power and motor function.
Balance Wheel and Balance Staff: Crucial for precision and shock protection; authentic replacements are highly recommended.
Pallet Fork and Escape Wheel: Frequently replaced escapement components that require exact fittings.
Gear Train Wheels: Minute, third, and fourth wheels typically sourced from donor movements or NOS stocks.
Setting Mechanism (Stem, Crown, Levers, Springs): Precisely fitting components ensure smooth winding and time setting.
Jewels: Synthetic ruby bearings reduce wear and friction, critical for movement longevity.
Split Winding Stem Male: Specifically designed for AS calibre 530 series, including 530.811, to guarantee proper compatibility.
Hands and Dial Components: Authentic parts maintain vintage aesthetics and preserve collector value.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts explicitly made for AS 530.811 for best results.
Handle delicate components like balance and escapement with care during servicing.
Apply synthetic lubricants minimally following standard vintage watch maintenance protocols.
Always confirm the calibre number on the movement before purchasing parts to avoid mismatches.
Donor movements offer excellent sources for hard-to-find or obsolete parts.
Importance of Genuine Spare Parts
Genuine parts ensure the calibre’s accuracy, optimal function, and durability, crucial for vintage watch performance.
Proper restoration preserves the historical integrity and increases collector appeal.
Supported by detailed documentation and active watchmaker communities, sourcing and repairs proceed more smoothly.
Maintaining your A. Schild AS 530.811 calibre with trusted spare parts guarantees long-term performance and respects its Swiss horological heritage.
