A Schild – AS Calibre 1402 Watch spare parts

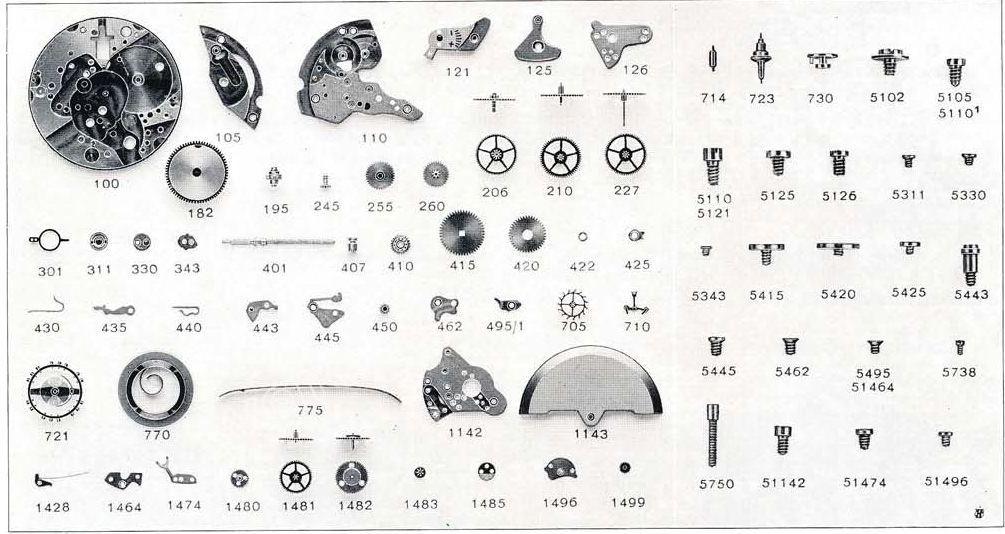

| A Schild – AS Calibre 1402 – Part No. 100 plate |
| A Schild – AS Calibre 1402 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1402 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 1402 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1402 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1402 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1402 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1402 – Part No. 201 Center wheel |
| A Schild – AS Calibre 1402 – Part No. 206 Center wheel and pinion drilled |
| A Schild – AS Calibre 1402 – Part No. 210 Third wheel and pinion |
| A Schild – AS Calibre 1402 – Part No. 227 Sweep second wheel and pinion |
| A Schild – AS Calibre 1402 – Part No. 245 Cannon pinion for sweep second |
| A Schild – AS Calibre 1402 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1402 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1402 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1402 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1402 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1402 – Part No. 343 Bearing Plate for Sweep second wheel |
| A Schild – AS Calibre 1402 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1402 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1402 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1402 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1402 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1402 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1402 – Part No. 425 Click |
| A Schild – AS Calibre 1402 – Part No. 430 Click spring |
| A Schild – AS Calibre 1402 – Part No. 435 Yoke |
| A Schild – AS Calibre 1402 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1402 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1402 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1402 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1402 – Part No. 462 Minute work cock |
| A Schild – AS Calibre 1402 – Part No. 495/1 Screw gib |
| A Schild – AS Calibre 1402 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1402 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1402 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1402 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1402 – Part No. 775 Brake spring |
| A Schild – AS Calibre 1402 – Part No. 1134 Framework for automatic device |
| A Schild – AS Calibre 1402 – Part No. 1142 Upper Bridge for automatic device |
| A Schild – AS Calibre 1402 – Part No. 1143 Oscillating weight |
| A Schild – AS Calibre 1402 – Part No. 1474 Breguet spring |
| A Schild – AS Calibre 1402 – Part No. 1481 Reduction gear |
| A Schild – AS Calibre 1402 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 1402 – Part No. 1483 Breguet pinion |
| A Schild – AS Calibre 1402 – Part No. 1485 Reverser |
| A Schild – AS Calibre 1402 – Part No. 1496 Oscillating weight axle |
| A Schild – AS Calibre 1402 – Part No. 1499 Reverser connecting wheel |

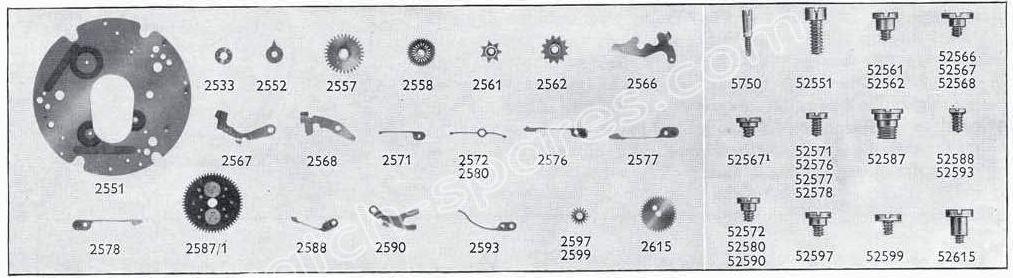

| A Schild – AS Calibre 1402 – Part No. 2533 Moonphase star seat |
| A Schild – AS Calibre 1402 – Part No. 2551 Calandar plate |
| A Schild – AS Calibre 1402 – Part No. 2552 Date finger |
| A Schild – AS Calibre 1402 – Part No. 2557 Date star |
| A Schild – AS Calibre 1402 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 1402 – Part No. 2561 Day star |
| A Schild – AS Calibre 1402 – Part No. 2562 Month star |
| A Schild – AS Calibre 1402 – Part No. 2567 Day corrector |
| A Schild – AS Calibre 1402 – Part No. 2568 Month corrector |
| A Schild – AS Calibre 1402 – Part No. 2571 Day corrector spring |
| A Schild – AS Calibre 1402 – Part No. 2572 Date corrector spring |
| A Schild – AS Calibre 1402 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 1402 – Part No. 2577 Day jumper |
| A Schild – AS Calibre 1402 – Part No. 2578 Month jumper |
| A Schild – AS Calibre 1402 – Part No. 2580 Month jcorrector spring |
| A Schild – AS Calibre 1402 – Part No. 5102 Case screw |
| A Schild – AS Calibre 1402 – Part No. 5105 Barrel Bridge screw |
| A Schild – AS Calibre 1402 – Part No. 5110 Train Wheel Bridge screw long head |
| A Schild – AS Calibre 1402 – Part No. 5110a Train Wheel Bridge screw Short head |
| A Schild – AS Calibre 1402 – Part No. 5125 Pallet cock screw |
| A Schild – AS Calibre 1402 – Part No. 5311 Upper end-piece screw, for balance |
| A Schild – AS Calibre 1402 – Part No. 5330 Lower end-piece screw, for balance |
| A Schild – AS Calibre 1402 – Part No. 5343 Bearing plate screw |
| A Schild – AS Calibre 1402 – Part No. 9505 Driving pinion on Barrel arbor |
| A Schild – AS Calibre 1402 – Part No. 9508 Connecting wheel for Driving gear |
| A Schild – AS Calibre 1402 – Part No. 9510 Driving gear for indicatar wheel |
| A Schild – AS Calibre 1402 – Part No. 9512 indicatar wheel |
| A Schild – AS Calibre 1402 – Part No. 9518 Bridge for Connecting wheel for Driving gear |
| A Schild – AS Calibre 1402 – Part No. 9520 Bridge for Driving gear for indicatar wheel |
| A Schild – AS Calibre 1402 – Part No. 9522 indicatar wheel bridge |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
A. Schild (AS) Calibre 1402 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1402 is a vintage Swiss automatic mechanical movement derived from the AS 1361 calibre, enhanced with calendar and moon phase complications. Produced around the 1950s, this movement is well-regarded for its sturdy automatic winding system combined with useful additional functions, making it a prized movement for collectors and watchmakers restoring mid-20th-century wristwatches.
Key Technical Highlights
Calibre: AS 1402
Movement Type: Automatic winding mechanical with calendar and moon phase complications
Diameter: 26 mm (11.5 lignes)
Jewels: Usually 17 or 21 synthetic ruby jewels
Beat Rate: 18,000 vibrations per hour (vph)
Power Reserve: Approximately 38 hours
Functions: Hours, minutes, sweep seconds, calendar with date display, moon phase indicator
Shock Protection: Incorporated anti-shock system typical of the era
Additional Info: Based on AS 1361 with added calendar and moon phase mechanisms
Common Spare Parts and Service Components
Mainspring and Barrel: Critical for stable power delivery; must be matched precisely for durability and consistency.
Balance Wheel and Balance Staff: Vital for timing accuracy; subject to shock damage necessitating exact replacements compatible with the movement’s shock protection.
Rotor Assembly and Bearings: Essential for automatic winding functionality; wear here affects winding efficiency and requires specialized parts.
Pallet Fork and Escape Wheel: Frequently serviced escapement components; original or compatible parts ensure smooth operation.
Calendar and Moon Phase Mechanism Parts: Date wheels, moon phase discs, springs, pushers, and cams are vital for full functional restoration of complications.
Wheels (Minute, Third, Fourth): Transmission gears prone to tooth or pivot wear; replacement parts often sourced from donor movements or new-old-stock (NOS).
Setting Mechanism (Stem, Crown, Setting Levers, Springs): Crucial for winding, time setting, and calendar adjustment; precise matching parts required.
Jewels: Synthetic ruby bearings matching the original count and position reduce friction and wear.
Hands and Dial: Period-correct hands and dials maintain authenticity and collector appeal.
Sourcing and Maintenance Tips
Prioritize original or NOS parts labeled for AS 1402 to guarantee perfect fit and maintain authenticity.
Donor AS 1402 movements are invaluable for sourcing rare components, especially calendar and moon phase parts.
Handle delicate assemblies such as the balance wheel, rotor, and calendar mechanisms carefully during servicing.
Use modern synthetic watch oils sparingly, following traditional lubrication standards to maximize longevity.
Confirm the calibre number stamped on the main plate before ordering parts to ensure compatibility.
Why AS 1402 Spare Parts Matter
Preserves Movement Complexity: Genuine parts maintain the accuracy and reliable automatic winding plus calendar and moon phase functions.
Collector and Repair Value: Authentic restoration preserves the vintage integrity and value of the watch.
Watchmaker Familiarity: The AS 1402 is well-documented, enabling effective servicing and parts sourcing in the restoration community.
The A. Schild AS 1402 calibre symbolizes a sophisticated mid-20th-century automatic Swiss movement where precise spare parts sourcing is essential for sustaining its legacy of reliability and functional elegance.
