A Schild – AS Calibre 1396 Watch spare parts
| A Schild – AS Calibre 1396 – Part No. 100 plate |
| A Schild – AS Calibre 1396 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1396 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 1396 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1396 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1396 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1396 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1396 – Part No. 201 Center wheel |
| A Schild – AS Calibre 1396 – Part No. 206 Center wheel and pinion drilled |
| A Schild – AS Calibre 1396 – Part No. 210 Third wheel and pinion |
| A Schild – AS Calibre 1396 – Part No. 227 Sweep second wheel and pinion |
| A Schild – AS Calibre 1396 – Part No. 245 Cannon pinion for sweep second |
| A Schild – AS Calibre 1396 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1396 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1396 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1396 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1396 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1396 – Part No. 343 Bearing Plate for Sweep second wheel |
| A Schild – AS Calibre 1396 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1396 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1396 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1396 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1396 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1396 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1396 – Part No. 425 Click |
| A Schild – AS Calibre 1396 – Part No. 430 Click spring |
| A Schild – AS Calibre 1396 – Part No. 435 Yoke |
| A Schild – AS Calibre 1396 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1396 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1396 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1396 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1396 – Part No. 462 Minute work cock |
| A Schild – AS Calibre 1396 – Part No. 495/1 Screw gib |
| A Schild – AS Calibre 1396 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1396 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1396 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1396 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1396 – Part No. 775 Brake spring |
| A Schild – AS Calibre 1396 – Part No. 1134 Framework for automatic device |
| A Schild – AS Calibre 1396 – Part No. 1142 Upper Bridge for automatic device |
| A Schild – AS Calibre 1396 – Part No. 1143 Oscillating weight |
| A Schild – AS Calibre 1396 – Part No. 1474 Breguet spring |
| A Schild – AS Calibre 1396 – Part No. 1481 Reduction gear |
| A Schild – AS Calibre 1396 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 1396 – Part No. 1483 Breguet pinion |
| A Schild – AS Calibre 1396 – Part No. 1485 Reverser |
| A Schild – AS Calibre 1396 – Part No. 1496 Oscillating weight axle |
| A Schild – AS Calibre 1396 – Part No. 1499 Reverser connecting wheel |

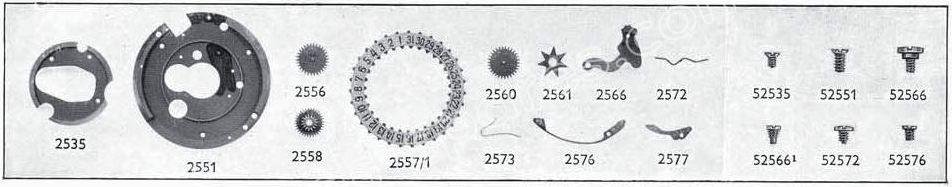

| A Schild – AS Calibre 1396 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 1396 – Part No. 2551 Calandar plate |
| A Schild – AS Calibre 1396 – Part No. 2556 Date indicator guard Driving wheel |
| A Schild – AS Calibre 1396 – Part No. 2557/1 Date indicator transferred |
| A Schild – AS Calibre 1396 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 1396 – Part No. 2530 Day star Driving wheel |
| A Schild – AS Calibre 1396 – Part No. 2561 Day star |
| A Schild – AS Calibre 1396 – Part No. 2566 Date corrector |
| A Schild – AS Calibre 1396 – Part No. 2572 Date corrector spring |
| A Schild – AS Calibre 1396 – Part No. 2573 Day jumper spring |
| A Schild – AS Calibre 1396 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 1396 – Part No. 2577 Day jumper |
| A Schild – AS Calibre 1396 – Part No. 5102 Case screw |
| A Schild – AS Calibre 1396 – Part No. 5105 Barrel Bridge screw |
| A Schild – AS Calibre 1396 – Part No. 5110 Train Wheel Bridge screw long head |
| A Schild – AS Calibre 1396 – Part No. 5110a Train Wheel Bridge screw Short head |
| A Schild – AS Calibre 1396 – Part No. 5125 Pallet cock screw |
| A Schild – AS Calibre 1396 – Part No. 5311 Upper end-piece screw, for balance |
| A Schild – AS Calibre 1396 – Part No. 5330 Lower end-piece screw, for balance |
| A Schild – AS Calibre 1396 – Part No. 5343 Bearing plate screw |
| A Schild – AS Calibre 1396 – Part No. 9505 Driving pinion on Barrel arbor |
| A Schild – AS Calibre 1396 – Part No. 9508 Connecting wheel for Driving gear |
| A Schild – AS Calibre 1396 – Part No. 9510 Driving gear for indicatar wheel |
| A Schild – AS Calibre 1396 – Part No. 9512 indicatar wheel |
| A Schild – AS Calibre 1396 – Part No. 9518 Bridge for Connecting wheel for Driving gear |
| A Schild – AS Calibre 1396 – Part No. 9520 Bridge for Driving gear for indicatar wheel |
| A Schild – AS Calibre 1396 – Part No. 9522 indicatar wheel bridge |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340

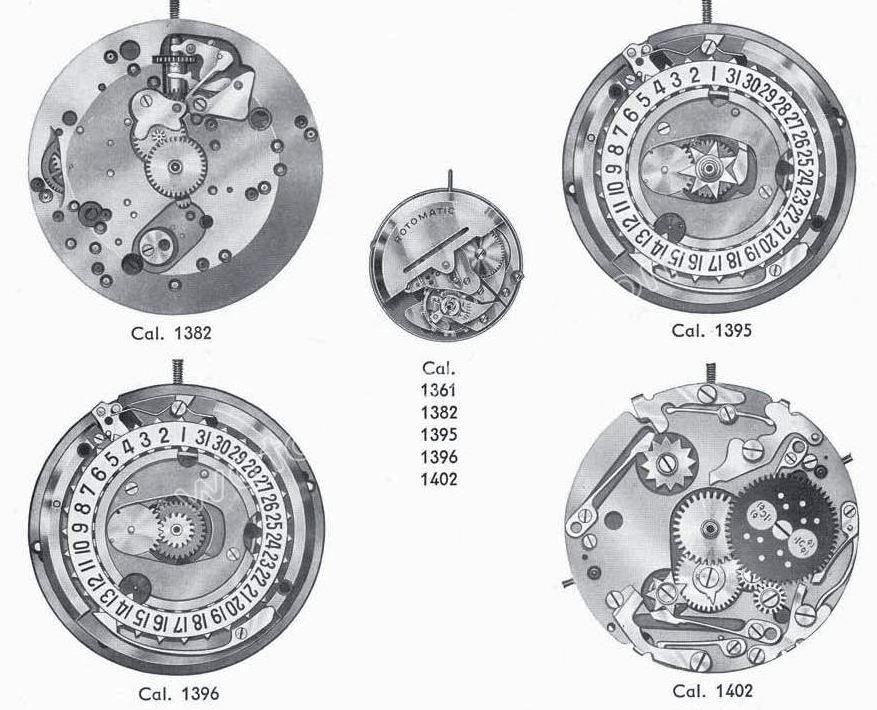

A. Schild (AS) Calibre 1396 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1396 is a vintage Swiss automatic mechanical movement, produced during the mid-20th century. It is valued for its robust construction, reliable automatic winding system, and inclusion of calendar functions often integrated alongside moon phase pushers. This calibre remains popular among collectors and watchmakers specializing in restoration of vintage Swiss watches.
Key Technical Highlights
Calibre: AS 1396
Movement Type: Automatic, self-winding mechanical
Diameter: 26 mm (11.5 lignes)
Height: Approximately 7 mm
Jewels: Typically 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (vph)
Power Reserve: Around 45 hours
Functions: Hours, minutes, sweep seconds, calendar functions including date and potentially moon phase (with pushers on case side)
Shock Protection: Basic anti-shock features typical of the era
Stem and Crown: Specific to movement size and function, exact fit required
Common Spare Parts and Service Components
Mainspring and Barrel: Essential for consistent power delivery; fatigue or breakage necessitates replacement with exact fit parts.
Balance Wheel and Balance Staff: Precision parts that affect timekeeping accuracy and must be replaced with compatible units.
Rotor Assembly: Integral to automatic winding; worn rotor bearings or axles impair winding efficiency and need servicing or replacement.
Pallet Fork and Escape Wheel: Escapement components prone to regular wear; sourcing genuine or compatible parts ensures smooth running.
Calendar and Moon Phase Mechanism Components: Includes pushers, date wheels, day disks, springs, and cams necessary for proper calendar and moon phase operation.
Wheels (Minute, Third, Fourth): Common wear points, often replaced using donor movements or NOS parts.
Setting Mechanism (Stem, Crown, Levers): Critical for winding, time and calendar setting; must fit precisely for reliable function.
Jewels: Synthetic ruby bearings matched to original positions to reduce friction and wear.
Hands and Dial: Period-correct items to maintain authenticity during restoration.
Sourcing and Maintenance Tips
Use original or NOS parts explicitly made for AS 1396 to guarantee fit and authenticity.
Donor AS 1396 movements are valuable for rare parts, including calendar modules and rotor assemblies.
Handle the balance and automatic winding assemblies with care due to their delicate nature.
Lubricate sparingly with modern synthetic oils while respecting vintage servicing standards.
Confirm the calibre number stamped on the main plate before ordering parts.
Why AS 1396 Spare Parts Matter
Preserving the movement’s automatic winding reliability and accurate calendar complications depends on authentic, quality parts.
Maintains the collector and repair value of vintage Swiss watches containing this calibre.
Well-documented within watchmaker communities, allowing effective servicing and parts sourcing.
The A. Schild AS 1396 is a classic mid-20th-century Swiss automatic calibre with calendar features, where sourcing accurate spare parts is essential to preserving its reliability, authenticity, and lasting heritage.
