A Schild – AS Calibre 530.601 Watch spare parts

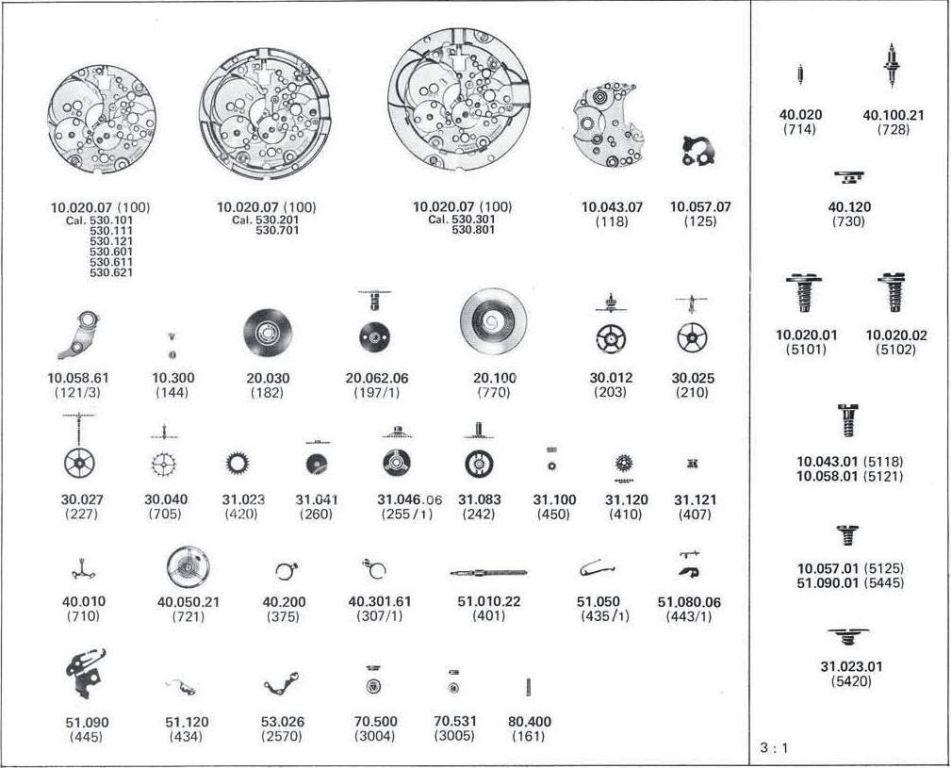

| A Schild – AS Calibre 530.601 – Part No. 100 Main plate Jewelled |
| A Schild – AS Calibre 530.601 – Part No.118 Combined bridge Jewelled |
| A Schild – AS Calibre 530.601 – Part No. 121/3 Balance bridge for Regulator |
| A Schild – AS Calibre 530.601 – Part No. 125 Pallet bridge Jewelled |
| A Schild – AS Calibre 530.601 – Part No. 144 Dial Fastener |
| A Schild – AS Calibre 530.601 – Part No. 145 Dial support |
| A Schild – AS Calibre 530.601 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 530.601 – Part No. 182 Barrel drum and cover |
| A Schild – AS Calibre 530.601 – Part No. 197/1 Barrel staff, Assembled with core and Ratchet wheel |
| A Schild – AS Calibre 530.601 – Part No. 203 Center wheel |
| A Schild – AS Calibre 530.601 – Part No. 210 Third wheel |
| A Schild – AS Calibre 530.601 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 530.601 – Part No. 242 Cannon pinion with driver |
| A Schild – AS Calibre 530.601 – Part No. 255/1 Hour wheel Assembled |
| A Schild – AS Calibre 530.601 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 530.601 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 530.601 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 530.601 – Part No. 401 Winding stem |
| A Schild – AS Calibre 530.601 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 530.601 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 530.601 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 530.601 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 530.601 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 530.601 – Part No. 434 Click spring |
| A Schild – AS Calibre 530.601 – Part No. 443 Setting lever |
| A Schild – AS Calibre 530.601 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 530.601 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 530.601 – Part No. 453 lntermediate Setting wheel |
| A Schild – AS Calibre 530.601 – Part No. 460 Crown wheel Rocker |
| A Schild – AS Calibre 530.601 – Part No. 465 Hand setting Train cover |
| A Schild – AS Calibre 530.601 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 530.601 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 530.601 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 530.601 – Part No. 770 Mainspring |
| A Schild – AS Calibre 530.601 – Part No. 2570 Double corrector operating lever |
| A Schild – AS Calibre 530.601 – Part No. 3004 Shock-Protecting device,Upper |
| A Schild – AS Calibre 530.601 – Part No. 3005 Shock-Protecting device,lower |

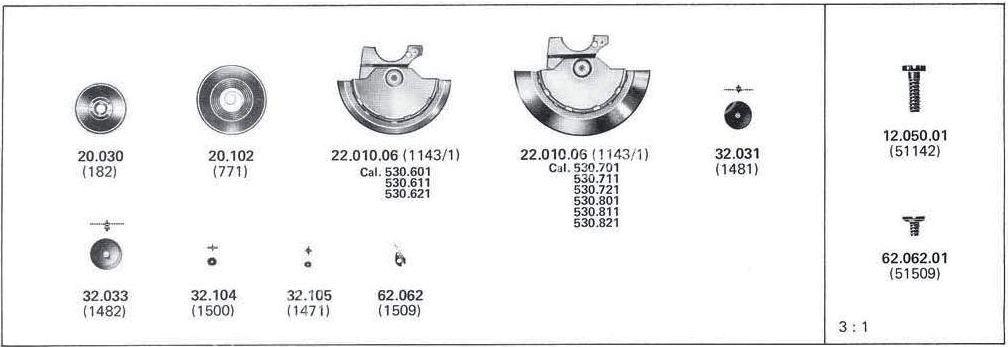

| A Schild – AS Calibre 530.601 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 530.601 – Part No. 1471 Stop pinion |
| A Schild – AS Calibre 530.601 – Part No. 1481 Reducrion Wheel |
| A Schild – AS Calibre 530.601 – Part No. 1482 Ratchet wheel Driving wheel |
| A Schild – AS Calibre 530.601 – Part No. 1500 Wig wag pinion |
| A Schild – AS Calibre 530.601 – Part No. 1509 Wig wag pinion spring |

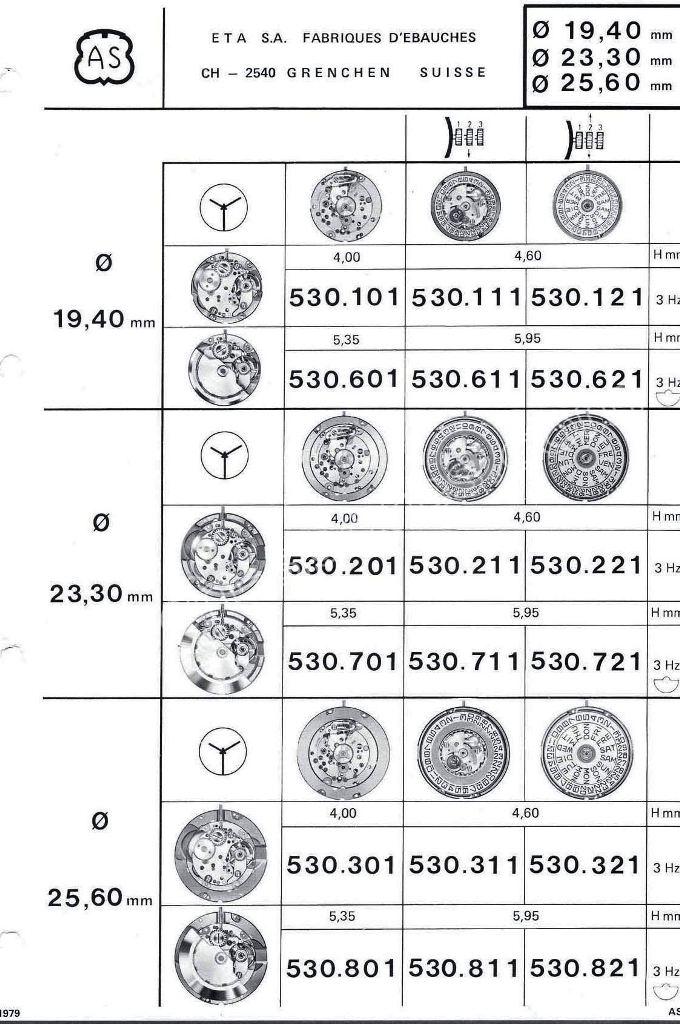

A. Schild (AS) Calibre 530.601 Watch Spare Parts: Overview and Sourcing Guide
The A. Schild (AS) Calibre 530.601 is a Swiss automatic mechanical movement revered for its reliability, precision, and versatile features. With a sweep seconds hand and automatic winding capability, it runs at a beat rate of 21,600 vibrations per hour (3 Hz), making it a popular choice for vintage watches requiring robust and accurate performance.
Key Technical Highlights
Calibre: AS 530.601
Movement Type: Automatic, mechanical
Beat Rate: 21,600 vibrations per hour (3 Hz)
Functions: Sweep seconds, automatic winding
Adjustment: Adjustable stud holder for fine regulation
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings ensure consistent power delivery and durability.
Balance Wheel and Balance Staff: Essential parts for timekeeping accuracy and shock resistance; genuine replacements recommended.
Pallet Fork and Escape Wheel: Wear-prone escapement components requiring quality replacements for smooth operation.
Gear Train Wheels: Minute, third, and fourth wheels replaced as needed; sourced from NOS or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Precisely fitting components are critical for smooth winding and setting.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must conform to original design.
Split Winding Stem Male: Specialized winding stems compatible with AS calibres, including 530.601, ensure reliable fit and operation.
Hands and Dial Components: Authentic parts preserve original aesthetics and enhance collector value.
Sourcing and Maintenance Tips
Always source original, NOS, or donor parts specifically for AS 530.601 to guarantee quality and compatibility.
Handle delicate components like the balance and escapement carefully during servicing.
Use synthetic lubricants sparingly and follow vintage watch maintenance standards.
Verify the calibre number on the movement before ordering parts to avoid incompatibility.
Donor movements provide excellent resources for rare or hard-to-find components.
Importance of Genuine Spare Parts
Authentic components maintain the calibre’s accuracy, durability, and smooth automatic operation, crucial for trusted vintage watch functioning.
Proper restorations protect the historical significance and enhance collector appeal of timepieces.
Supported by detailed documentation and watchmaker communities, repair and sourcing are made easier.
Maintaining your A. Schild AS 530.601 calibre with genuine spare parts ensures lasting reliability and pays homage to traditional Swiss craftsmanship.
