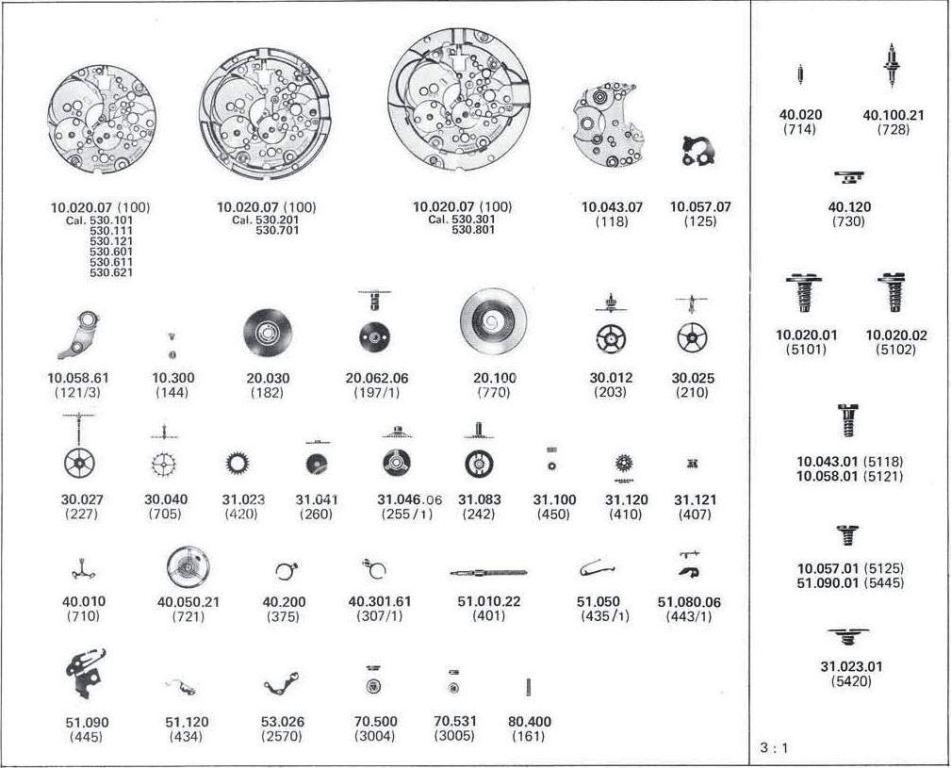

A Schild – AS Calibre 530.311 Watch spare parts
| A Schild – AS Calibre 530.311 – Part No. 100 Main plate Jewelled |
| A Schild – AS Calibre 530.311 – Part No.118 Combined bridge Jewelled |
| A Schild – AS Calibre 530.311 – Part No. 121/3 Balance bridge for Regulator |
| A Schild – AS Calibre 530.311 – Part No. 125 Pallet bridge Jewelled |
| A Schild – AS Calibre 530.311 – Part No. 144 Dial Fastener |
| A Schild – AS Calibre 530.311 – Part No. 145 Dial support |
| A Schild – AS Calibre 530.311 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 530.311 – Part No. 182 Barrel drum and cover |
| A Schild – AS Calibre 530.311 – Part No. 197/1 Barrel staff, Assembled with core and Ratchet wheel |
| A Schild – AS Calibre 530.311 – Part No. 203 Center wheel |
| A Schild – AS Calibre 530.311 – Part No. 210 Third wheel |
| A Schild – AS Calibre 530.311 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 530.311 – Part No. 242 Cannon pinion with driver |
| A Schild – AS Calibre 530.311 – Part No. 255/1 Hour wheel Assembled |
| A Schild – AS Calibre 530.311 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 530.311 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 530.311 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 530.311 – Part No. 401 Winding stem |
| A Schild – AS Calibre 530.311 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 530.311 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 530.311 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 530.311 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 530.311 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 530.311 – Part No. 434 Click spring |
| A Schild – AS Calibre 530.311 – Part No. 443 Setting lever |
| A Schild – AS Calibre 530.311 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 530.311 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 530.311 – Part No. 453 lntermediate Setting wheel |
| A Schild – AS Calibre 530.311 – Part No. 460 Crown wheel Rocker |
| A Schild – AS Calibre 530.311 – Part No. 465 Hand setting Train cover |
| A Schild – AS Calibre 530.311 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 530.311 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 530.311 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 530.311 – Part No. 770 Mainspring |
| A Schild – AS Calibre 530.311 – Part No. 2570 Double corrector operating lever |
| A Schild – AS Calibre 530.311 – Part No. 3004 Shock-Protecting device,Upper |
| A Schild – AS Calibre 530.311 – Part No. 3005 Shock-Protecting device,lower |

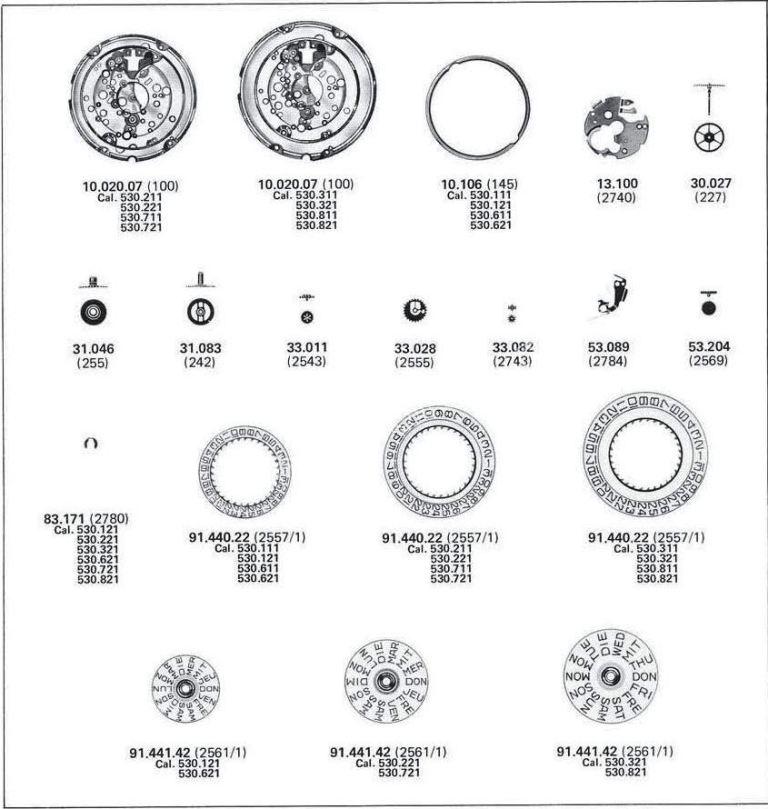

| A Schild – AS Calibre 530.311 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 530.311 – Part No. 2555 Calender driving wheel |
| A Schild – AS Calibre 530.311 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 530.311 – Part No. 2569 Double corrector |
| A Schild – AS Calibre 530.311 – Part No. 2740 Day mechanism maintaining plate |
| A Schild – AS Calibre 530.311 – Part No. 2743 Date corrector lntermediate Setting wheel |
| A Schild – AS Calibre 530.311 – Part No. 2784 Double jumper |
A. Schild (AS) Calibre 530.311 Watch Spare Parts: Overview and Sourcing Guide
The A. Schild (AS) Calibre 530.311 is a Swiss mechanical manual winding movement recognized for its reliable timekeeping and solid construction. This calibre runs at 21,600 vibrations per hour (3 Hz) and features an adjustable stud holder with a sweep seconds function, making it a popular choice in vintage watches.
Key Technical Highlights
Calibre: AS 530.311
Movement Type: Mechanical, manual winding
Beat Rate: 21,600 vibrations per hour (3 Hz)
Functions: Sweep seconds, adjustable stud holder
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings for consistent power and longevity.
Balance Wheel and Balance Staff: Critical for precision and shock absorption; genuine replacements ensure reliability.
Pallet Fork and Escape Wheel: Wear-prone parts that require authentic or NOS replacements for smooth functioning.
Gear Train Wheels: Minute, third, and fourth wheels sourced from NOS or donor movements when needed.
Setting Mechanism (Stem, Crown, Levers, Springs): Exactly fitting components ensure smooth winding and setting.
Jewels: Synthetic ruby bearings reduce friction; replacements must conform to original layout.
Winding Stem: Split winding stems for AS series, including 530.311, ensure proper fit and function.
Hands and Dial Components: Authentic parts maintain vintage aesthetics and collector value.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specifically for AS 530.311 to ensure compatibility and optimal performance.
Handle delicate components such as the balance and escapement carefully during servicing.
Apply synthetic lubricants sparingly according to best practices for vintage watch maintenance.
Verify the calibre number on the movement before ordering parts to avoid errors.
Donor movements provide valuable sources for rare or discontinued parts.
Importance of Genuine Parts
Genuine components maintain the calibre’s accuracy, durability, and smooth operation, crucial for vintage watch reliability.
Proper restorations protect the historical significance and enhance collector appeal.
Strong technical documentation and watchmaker communities aid efficient repairs and sourcing.
Proper maintenance of your A. Schild AS 530.311 calibre using genuine spare parts assures lasting performance and preserves its horological legacy.
