A Schild – AS Calibre 530.221 Watch spare parts

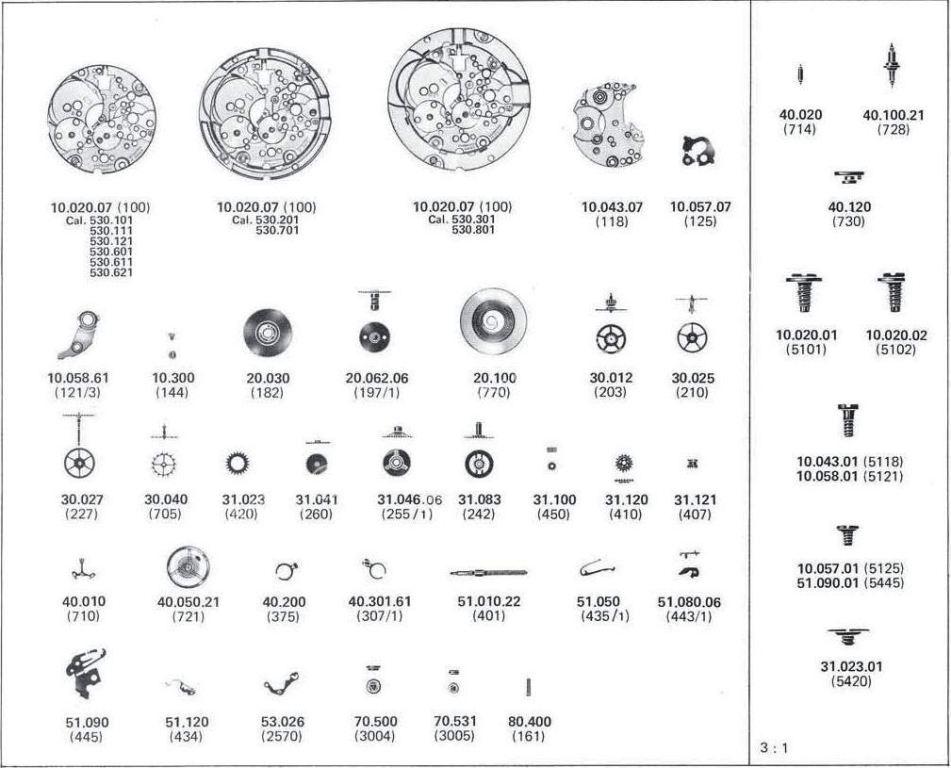

| A Schild – AS Calibre 530.221 – Part No. 100 Main plate Jewelled |
| A Schild – AS Calibre 530.221 – Part No.118 Combined bridge Jewelled |
| A Schild – AS Calibre 530.221 – Part No. 121/3 Balance bridge for Regulator |
| A Schild – AS Calibre 530.221 – Part No. 125 Pallet bridge Jewelled |
| A Schild – AS Calibre 530.221 – Part No. 144 Dial Fastener |
| A Schild – AS Calibre 530.221 – Part No. 145 Dial support |
| A Schild – AS Calibre 530.221 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 530.221 – Part No. 182 Barrel drum and cover |
| A Schild – AS Calibre 530.221 – Part No. 197/1 Barrel staff, Assembled with core and Ratchet wheel |
| A Schild – AS Calibre 530.221 – Part No. 203 Center wheel |
| A Schild – AS Calibre 530.221 – Part No. 210 Third wheel |
| A Schild – AS Calibre 530.221 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 530.221 – Part No. 242 Cannon pinion with driver |
| A Schild – AS Calibre 530.221 – Part No. 255/1 Hour wheel Assembled |
| A Schild – AS Calibre 530.221 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 530.221 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 530.221 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 530.221 – Part No. 401 Winding stem |
| A Schild – AS Calibre 530.221 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 530.221 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 530.221 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 530.221 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 530.221 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 530.221 – Part No. 434 Click spring |
| A Schild – AS Calibre 530.221 – Part No. 443 Setting lever |
| A Schild – AS Calibre 530.221 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 530.221 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 530.221 – Part No. 453 lntermediate Setting wheel |
| A Schild – AS Calibre 530.221 – Part No. 460 Crown wheel Rocker |
| A Schild – AS Calibre 530.221 – Part No. 465 Hand setting Train cover |
| A Schild – AS Calibre 530.221 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 530.221 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 530.221 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 530.221 – Part No. 770 Mainspring |
| A Schild – AS Calibre 530.221 – Part No. 2570 Double corrector operating lever |
| A Schild – AS Calibre 530.221 – Part No. 3004 Shock-Protecting device,Upper |
| A Schild – AS Calibre 530.221 – Part No. 3005 Shock-Protecting device,lower |

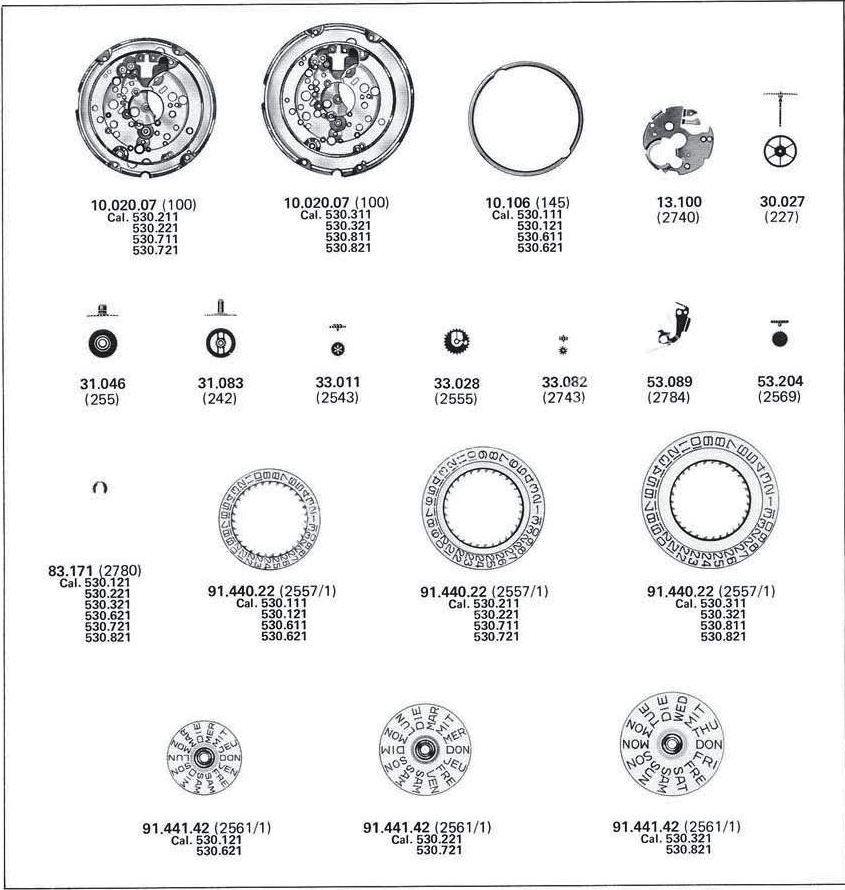

| A Schild – AS Calibre 530.221 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 530.221 – Part No. 2555 Calender driving wheel |
| A Schild – AS Calibre 530.221 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 530.221 – Part No. 2561/1 Day indicator |
| A Schild – AS Calibre 530.221 – Part No. 2569 Double corrector |
| A Schild – AS Calibre 530.221 – Part No. 2740 Day mechanism maintaining plate |
| A Schild – AS Calibre 530.221 – Part No. 2743 Date corrector lntermediate Setting wheel |
| A Schild – AS Calibre 530.221 – Part No. 2784 Double jumper |
A. Schild (AS) Calibre 530.221 Watch Spare Parts: Overview and Sourcing Guide

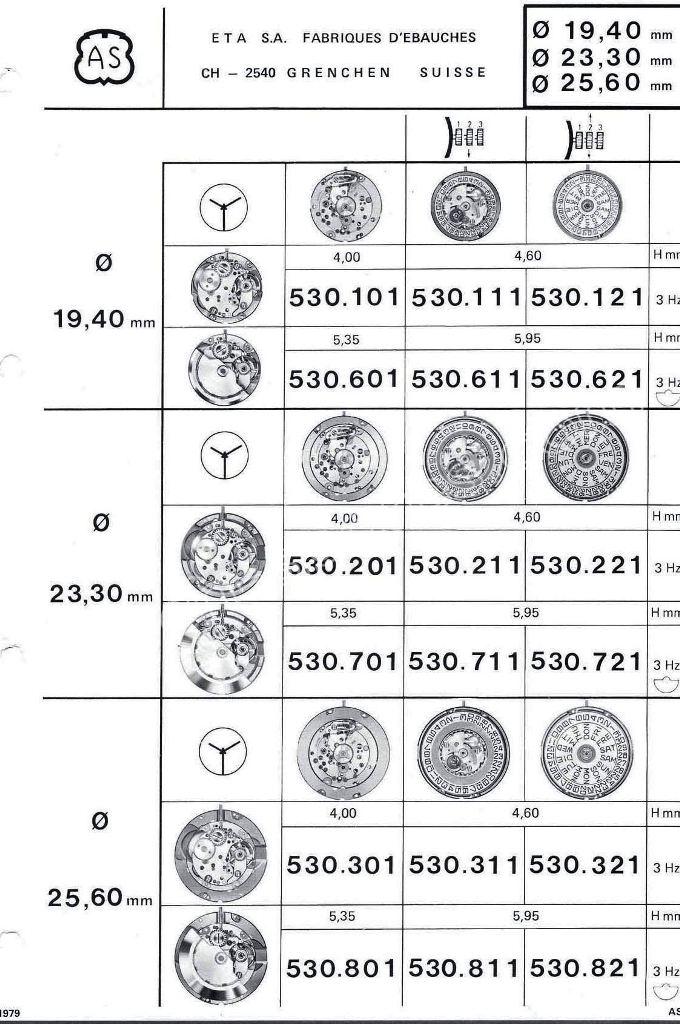

The A. Schild (AS) Calibre 530.221 is a trusted Swiss mechanical movement known for its reliable manual winding and precise timekeeping. As part of the broad calibre 530 series, it features robust engineering suited to vintage watches with sweep seconds functionality.
Key Technical Highlights
Calibre: AS 530.221
Movement Type: Mechanical, manual winding
Beat Rate: 21,600 vibrations per hour (3 Hz)
Jewels: 17 synthetic ruby jewels
Functions: Sweep seconds
Size: Approximately 8.75 lignes (about 19.7 mm)
Essential Spare Parts
Mainspring and Barrel: Use genuine or New-Old-Stock (NOS) parts for consistent power and durability.
Balance Wheel and Balance Staff: Critical for reliable time accuracy and shock resistance.
Pallet Fork and Escape Wheel: Wear-prone escapement parts requiring quality replacements for smooth operation.
Gear Train Wheels: Minute, third, and fourth wheels often need replacement; NOS or donor sourced.
Setting Mechanism (Stems, Crowns, Levers, Springs): Precisely fitting parts are essential for smooth winding and time setting.
Jewels: Synthetic ruby bearings reduce wear and friction; replacements must match original specifications.
Split Winding Stem Male: Specific to AS calibre 530 series including 530.221, ensuring proper fit and winding function.
Hands and Dial Components: Authentic parts maintain vintage watch aesthetics and collector value.
Sourcing and Maintenance Advice
Source original, NOS, or donor components made for AS 530.221 for compatibility and reliability.
Handle delicate balance and escapement parts with care during servicing.
Apply synthetic lubricants sparingly and follow standard vintage watch maintenance methods.
Confirm the calibre number engraved on the movement before ordering parts.
Donor movements serve as excellent sources for rare or discontinued spare parts.
Importance of Authentic Spare Parts
Genuine parts maintain the calibre’s accuracy, longevity, and smooth mechanism operation, essential for trusted vintage watch performance.
Authentic restoration preserves historical value and collector appeal.
Well-documented and supported by watchmaker networks for effective repair and sourcing.
Maintaining your A. Schild AS 530.221 calibre with genuine spare parts safeguards its performance and honors its place in Swiss watchmaking history.
