A Schild – AS Calibre 530.101 Watch spare parts

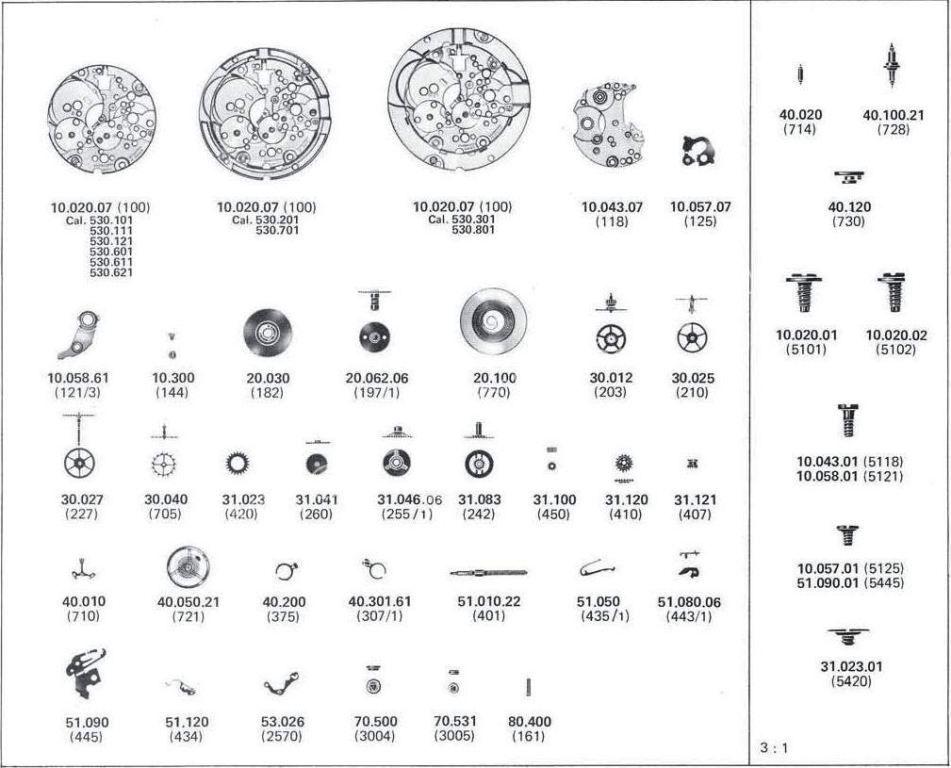

| A Schild-AS- Calibre 530.101 – Part No. 100 Main plate Jewelled |
| A Schild-AS- Calibre 530.101 – Part No.118 Combined bridge Jewelled |
| A Schild-AS- Calibre 530.101 – Part No. 121/3 Balance bridge for Regulator |
| A Schild-AS- Calibre 530.101 – Part No. 125 Pallet bridge Jewelled |
| A Schild-AS- Calibre 530.101 – Part No. 144 Dial Fastener |
| A Schild-AS- Calibre 530.101 – Part No. 145 Dial support |
| A Schild-AS- Calibre 530.101 – Part No. 161 Center Pipe |
| A Schild-AS- Calibre 530.101 – Part No. 182 Barrel drum and cover |
| A Schild-AS- Calibre 530.101 – Part No. 197/1 Barrel staff, Assembled with core and Ratchet wheel |
| A Schild-AS- Calibre 530.101 – Part No. 203 Center wheel |
| A Schild-AS- Calibre 530.101 – Part No. 210 Third wheel |
| A Schild-AS- Calibre 530.101 – Part No. 227 Sweep Second Wheel |
| A Schild-AS- Calibre 530.101 – Part No. 242 Cannon pinion with driver |
| A Schild-AS- Calibre 530.101 – Part No. 255/1 Hour wheel Assembled |
| A Schild-AS- Calibre 530.101 – Part No. 260 Minute wheel |
| A Schild-AS- Calibre 530.101 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild-AS- Calibre 530.101 – Part No. 375 Adjustable Stud Holder |
| A Schild-AS- Calibre 530.101 – Part No. 401 Winding stem |
| A Schild-AS- Calibre 530.101 – Part No. 407 Clutch wheel |
| A Schild-AS- Calibre 530.101 – Part No. 410 Winding pinion |
| A Schild-AS- Calibre 530.101 – Part No. 415 Ratchet wheel |
| A Schild-AS- Calibre 530.101 – Part No. 420 Crown wheel |
| A Schild-AS- Calibre 530.101 – Part No. 422 Crown wheel ring |
| A Schild-AS- Calibre 530.101 – Part No. 434 Click spring |
| A Schild-AS- Calibre 530.101 – Part No. 443 Setting lever |
| A Schild-AS- Calibre 530.101 – Part No. 445 Setting Iever spring |
| A Schild-AS- Calibre 530.101 – Part No. 450 Setting wheel |
| A Schild-AS- Calibre 530.101 – Part No. 453 lntermediate Setting wheel |
| A Schild-AS- Calibre 530.101 – Part No. 460 Crown wheel Rocker |
| A Schild-AS- Calibre 530.101 – Part No. 465 Hand setting Train cover |
| A Schild-AS- Calibre 530.101 – Part No. 705 Escape wheel and pinion |
| A Schild-AS- Calibre 530.101 – Part No. 710 Jewelled pallet fork |
| A Schild-AS- Calibre 530.101 – Part No. 721 Complete Balance |
| A Schild-AS- Calibre 530.101 – Part No. 770 Mainspring |
| A Schild-AS- Calibre 530.101 – Part No. 2570 Double corrector operating lever |
| A Schild-AS- Calibre 530.101 – Part No. 3004 Shock-Protecting device,Upper |
| A Schild-AS- Calibre 530.101 – Part No. 3005 Shock-Protecting device,lower |
A. Schild (AS) Calibre 530.101 Watch Spare Parts: Overview and Sourcing Guide
The A. Schild (AS) Calibre 530.101 is a Swiss automatic mechanical watch movement popular for its reliable timekeeping and precision engineering. Measuring 8.75 lignes (approximately 19.7 mm) with 17 jewels and operating at 21,600 vibrations per hour, this calibre is favored in vintage watches for its smooth operation and durability.
Key Technical Highlights
Calibre: 530.101
Movement Type: Automatic, mechanical
Jewels: 17 synthetic rubies
Beat Rate: 21,600 vibrations per hour (3 Hz)
Diameter: 8.75 lignes (about 19.7 mm)
Functions: Hours, minutes, seconds, automatic winding
Common Spare Parts and Components
Mainspring and Barrel: Use original or New-Old-Stock (NOS) mainsprings for optimal power consistency.
Balance Wheel and Staff: Crucial parts for precise timekeeping and shock absorption; genuine replacements preferred.
Escape Wheel and Pallet Fork: Escapement components that may need replacement for smooth functioning.
Gear Train Wheels: Include minute, third, and fourth wheels sourced from NOS or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit precisely for smooth winding and setting.
Jewels: Synthetic ruby bearings reduce friction; replacements must match original design.
Hands and Dial Components: Authentic parts help preserve vintage watch aesthetics and collector value.
Winding Stem: Split winding stem male parts are available specific to calibre 530.101 for accurate fitting.
Sourcing and Maintenance Tips
Always source original, NOS, or donor parts specifically for AS 530.101 to ensure compatibility and durability.
Handle sensitive components like the balance and escapement carefully during repairs.
Use modern synthetic lubricants sparingly following vintage watch service standards.
Verify the calibre number on the movement before ordering parts.
Donor movements are excellent sources for rare or hard-to-find parts.
Why Genuine Parts Matter
Genuine spare parts maintain the calibre’s accuracy, durability, and reliable automatic function.
Authentic restoration preserves both the historical integrity and collector’s value of vintage timepieces.
Available documentation and watchmaker networks help ensure efficient repairs and parts sourcing.
Maintaining your A. Schild AS 530.101 calibre with quality spare parts protects its reliability and pays homage to traditional Swiss craftsmanship.
