A Schild – AS Calibre 5202 Watch spare parts

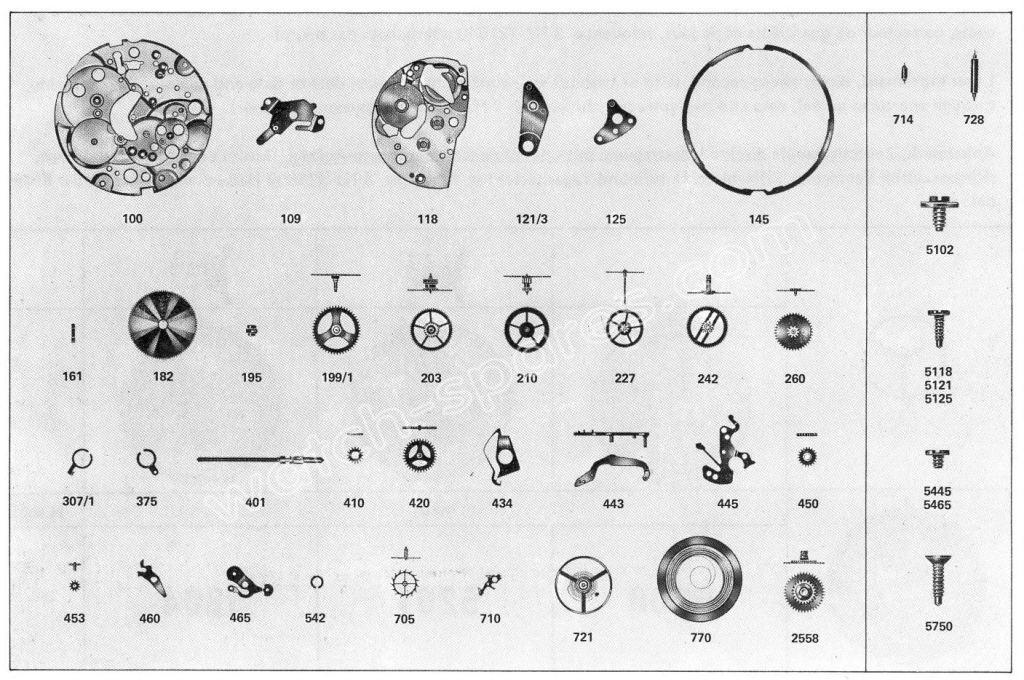

| A Schild – AS Calibre 5202 – Part No. 100 plate |
| A Schild – AS Calibre 5202 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5202 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 5202 – Part No. 121/3 Balance cock |
| A Schild – AS Calibre 5202 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5202 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 5202 – Part No. 166 Casing clamp |
| A Schild – AS Calibre 5202 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5202 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5202 – Part No. 203 Center wheel |
| A Schild – AS Calibre 5202 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5202 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 5202 – Part No. 242 Cannon pinion driving wheel |
| A Schild – AS Calibre 5202 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5202 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 5202 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 5202 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5202 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5202 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5202 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5202 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5202 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5202 – Part No. 434 Click spring |
| A Schild – AS Calibre 5202 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5202 – Part No. 445/1 Setting Iever spring |
| A Schild – AS Calibre 5202 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5202 – Part No. 453 lntermediate Setting wheel |
| A Schild – AS Calibre 5202 – Part No. 460 Crown wheel Rocker |
| A Schild – AS Calibre 5202 – Part No. 465 Hand setting Train cover |
| A Schild – AS Calibre 5202 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5202 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5202 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5202 – Part No. 770 Mainspring |
| A Schild – AS Calibre 5202 – Part No. 2558 Hour wheel mounted |

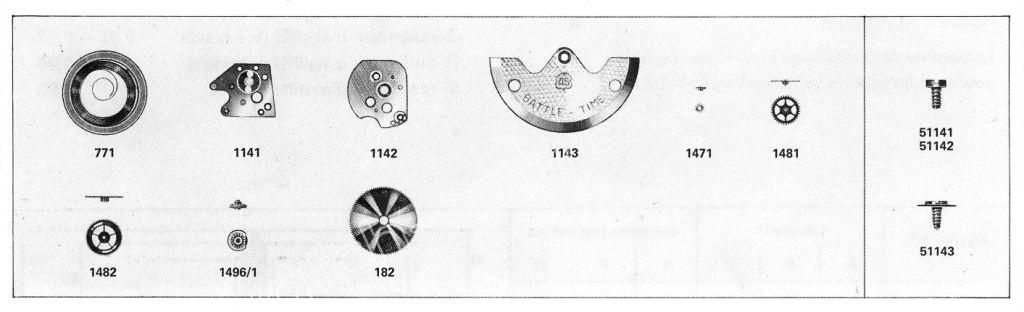

| A Schild – AS Calibre 5202 – Part No. 1141 Lower bridge for automatic device |
| A Schild – AS Calibre 5202 – Part No. 1142 Bridge for automatic device |
| A Schild – AS Calibre 5202 – Part No. 1143 Oscillating weight |
| A Schild – AS Calibre 5202 – Part No. 1471 Stop pinion |
| A Schild – AS Calibre 5202 – Part No. 1481 Reduction gear |
| A Schild – AS Calibre 5202 – Part No. 1482 Driving gear for Ratchet wheel |
| A Schild – AS Calibre 5202 – Part No. 1496/1 Oscillating weight axle mounted |
A. Schild (AS) Calibre 5202 Watch Spare Parts: Technical Overview and Sourcing Guide

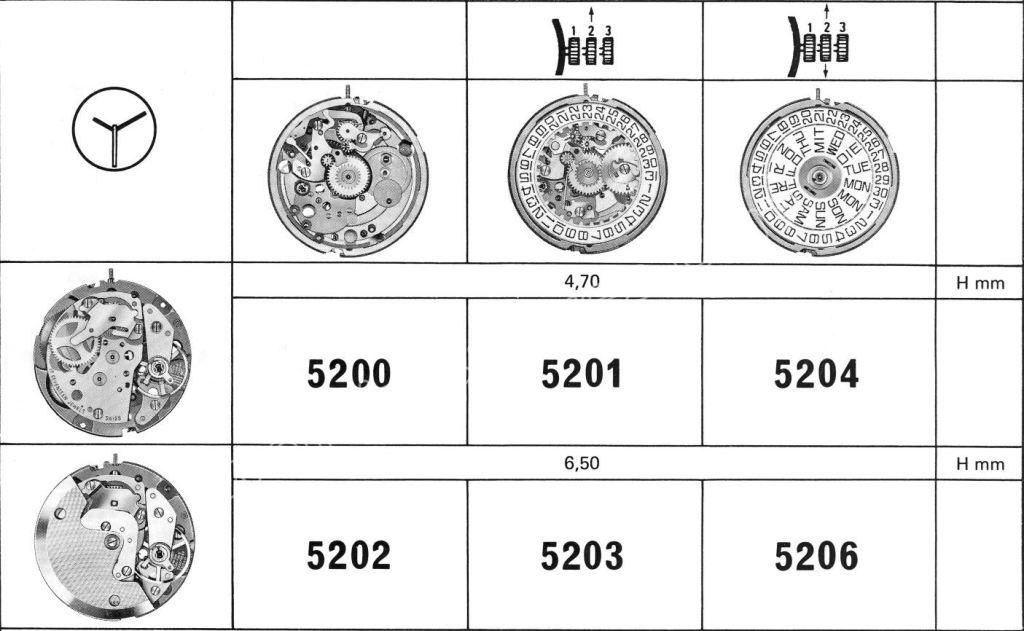

A. Schild (AS) Calibre 5202 is a Swiss automatic mechanical watch movement known for its precision, robustness, and reliability. Introduced around 1975, it is a trusted calibre that features a diameter of 27.6 mm and operates at 21,600 vibrations per hour (3 Hz), with a power reserve of approximately 39 hours. These qualities make the AS 5202 a popular choice among vintage watch enthusiasts and professional watchmakers.
Key Technical Highlights
Calibre: AS 5202
Type: Automatic, mechanical
Diameter: 27.6 mm (12 lignes)
Jewels: 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 39 hours
Lift Angle: 50°
Era: Circa 1975
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings and barrels maintain power consistency and durability.
Balance Wheel and Balance Staff: Critical for precise timekeeping and shock protection; genuine replacements ensure reliability.
Pallet Fork and Escape Wheel: Wear-prone escapement components require NOS or original replacements for smooth operation.
Gear Train Wheels: Minute, third, and fourth wheels commonly replaced; sourced from NOS stock or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Proper fitting parts are necessary for smooth setting and winding.
Jewels: Synthetic ruby bearings used to reduce friction; replacements must match original layout.
Hands and Dial Components: Authentic parts maintain vintage aesthetics and preserve watch value.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts designed for AS 5202 to ensure compatibility and optimal function.
Handle delicate components such as the balance and escapement with care to avoid damage during servicing.
Use appropriate synthetic lubricants sparingly, following vintage watch servicing practices.
Verify the calibre number on the movement before ordering parts to avoid errors.
Donor AS 5202 movements are excellent sources for rare or obsolete parts.
Why AS 5202 Spare Parts Matter
Genuine parts maintain the movement’s accuracy, durability, and smooth automatic winding, essential for vintage watch reliability.
Authentic restoration preserves the historical significance and collector appeal of this classic Swiss calibre.
Rich technical documentation and active watchmaker communities aid efficient sourcing and repairs.
Maintaining your A. Schild AS 5202 calibre with quality spare parts guarantees lasting performance and honors its horological heritage.
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
