A Schild – AS Calibre 5156 Watch spare parts

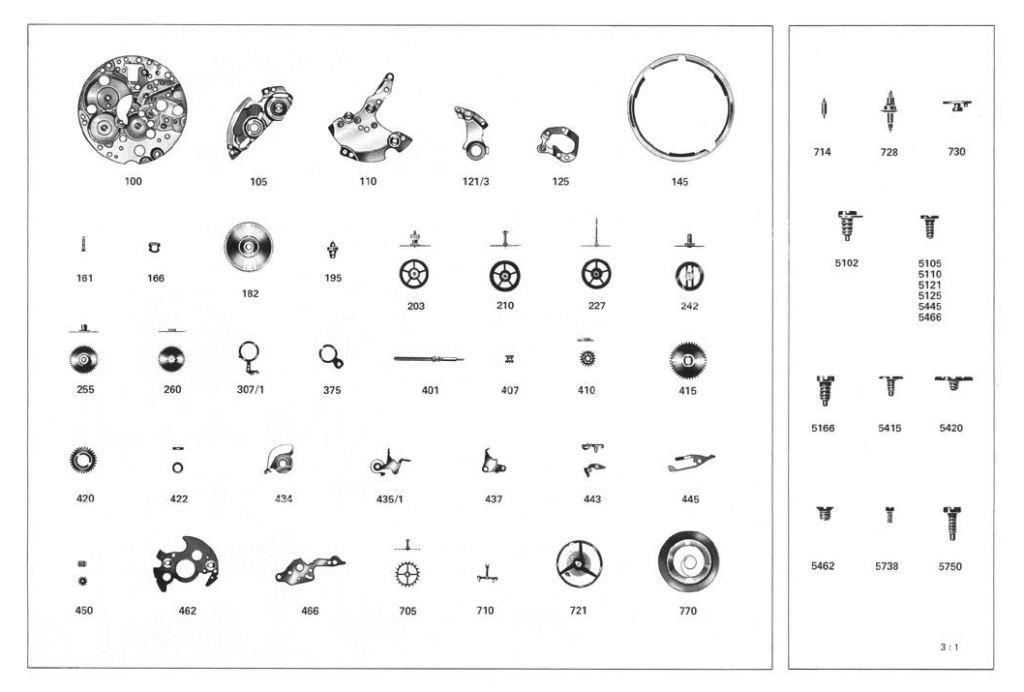

| A Schild – AS Calibre 5156 – Part No. 100 plate |
| A Schild – AS Calibre 5156 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5156 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 5156 – Part No. 121/3 Balance cock |
| A Schild – AS Calibre 5156 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5156 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 5156 – Part No. 166 Casing clamp |
| A Schild – AS Calibre 5156 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5156 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5156 – Part No. 203 Center wheel |
| A Schild – AS Calibre 5156 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5156 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 5156 – Part No. 242 Cannon pinion driving wheel |
| A Schild – AS Calibre 5156 – Part No. 255 Hour wheel for Sweep Second |
| A Schild – AS Calibre 5156 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5156 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 5156 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 5156 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5156 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5156 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5156 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5156 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5156 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5156 – Part No. 434 Click spring |
| A Schild – AS Calibre 5156 – Part No. 435/1 spring Yoke |
| A Schild – AS Calibre 5156 – Part No. 437 Racking bar |
| A Schild – AS Calibre 5156 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5156 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 5156 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5156 – Part No. 462 Minute work cock |
| A Schild – AS Calibre 5156 – Part No. 466 Lit for Winding and Setting machaniams |

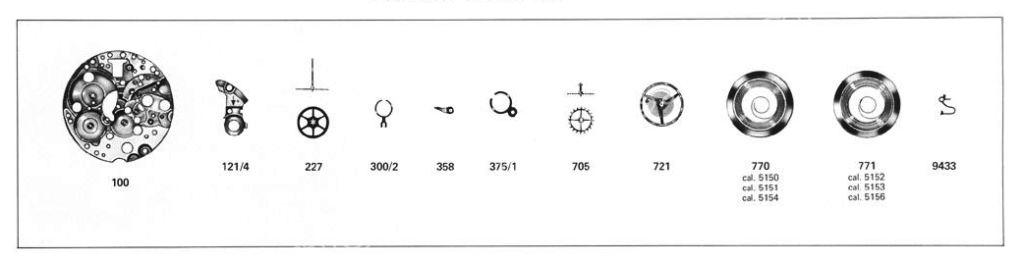

| A Schild – AS Calibre 5156 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5156 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5156 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5156 – Part No. 770 Mainspring |

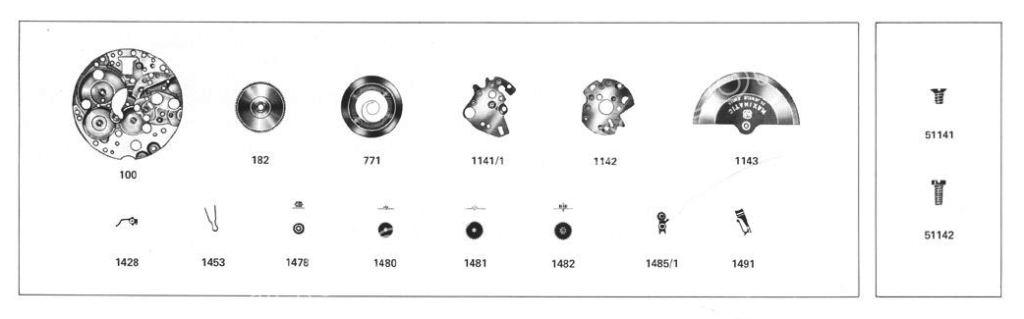

| A Schild – AS Calibre 5156 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 5156 – Part No. 1142 Bridge for automatic device |
| A Schild – AS Calibre 5156 – Part No. 1143 Oscillating weight |
| A Schild – AS Calibre 5156 – Part No. 1428 Stop click |
| A Schild – AS Calibre 5156 – Part No. 1453 Double function Automatic Device Spring |
| A Schild – AS Calibre 5156 – Part No. 1478 Oscillating weight pinion |
| A Schild – AS Calibre 5156 – Part No. 1480 Winding-up wheel |
| A Schild – AS Calibre 5156 – Part No. 1482 Driving gear for Ratchet wheel |
| A Schild – AS Calibre 5156 – Part No. 1485/1 Reverser mounted |
| A Schild – AS Calibre 5156 – Part No. 1491Oscillating weight bolt |

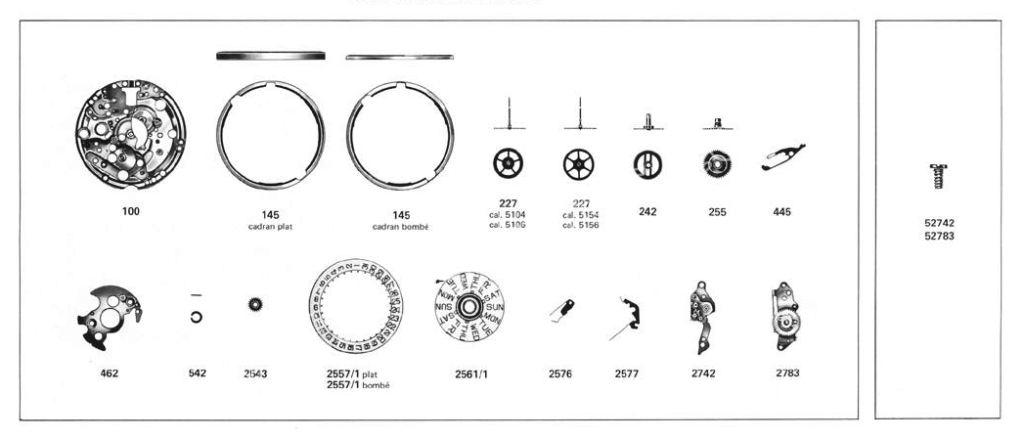

| A Schild – AS Calibre 5156 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 5156 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 5156 – Part No. 2561/1 Day indicator |
| A Schild – AS Calibre 5156 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 5156 – Part No. 2577 Day Jumper |
| A Schild – AS Calibre 5156 – Part No. 2742 Corrector module |
| A Schild – AS Calibre 5156 – Part No. 2783 Instantaneous Unlocking module |
A. Schild (AS) Calibre 5156 Watch Spare Parts: Technical Overview and Sourcing Guide

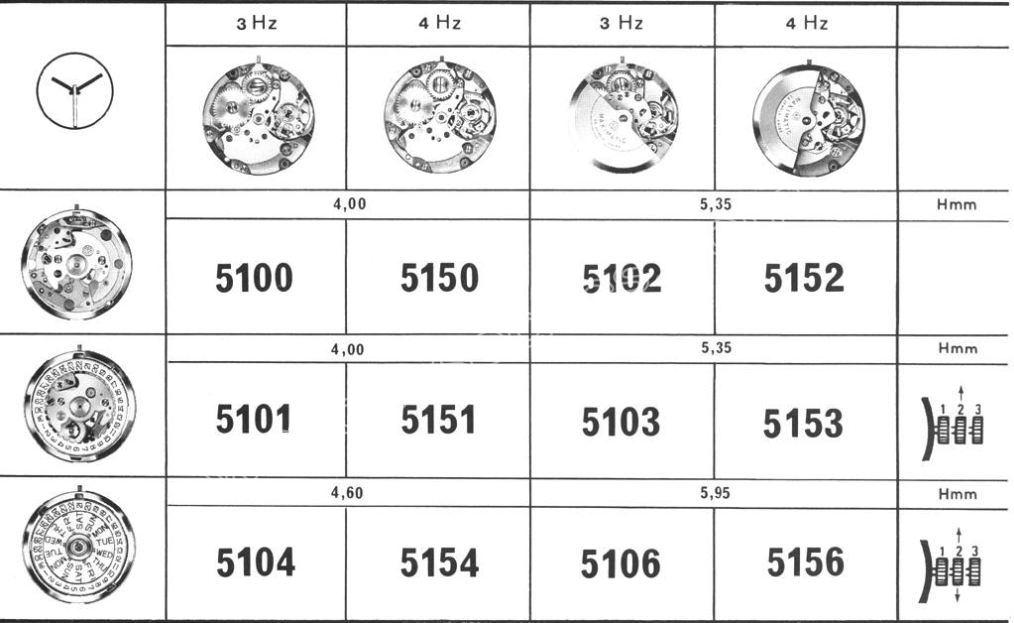

A. Schild (AS) Calibre 5156 is a Swiss automatic mechanical movement known for its reliability and functionality. With a high beat rate of 28,800 vibrations per hour (4 Hz), this calibre features day and date display alongside sweep seconds, making it a versatile and sought-after movement in vintage watches.
Key Technical Highlights
Calibre: AS 5156
Movement Type: Automatic, mechanical
Beat Rate: 28,800 vibrations per hour (4 Hz)
Jewels: 17 synthetic ruby jewels
Lift Angle: 53°
Functions: Hour, minute, sweep seconds, day and date display
Shock Protection: Incabloc
Balance: Nickel annular balance with clockwise hairspring
Adjustments: Moveable stud, hairspring key adjuster
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainspring and barrel to ensure power consistency and durability.
Balance Wheel and Balance Staff: Essential for precise timekeeping and shock resistance; genuine replacements are necessary.
Pallet Fork and Escape Wheel: Critical escapement parts prone to wear; NOS or original parts guarantee smooth function.
Gear Train Wheels: Replacement wheels such as minute, third, and fourth wheels are often needed; sourced from NOS or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Well-fitted components are vital for accurate time and date setting.
Jewels: Synthetic ruby bearings reduce friction; replacements must align with the original design.
Hands and Dial Components: Authentic parts maintain the movement’s vintage aesthetic and collector value.
Sourcing and Maintenance Tips
Procure original, NOS, or donor parts specifically for AS 5156 to ensure perfect compatibility and performance.
Handle delicate balance and escapement components carefully during servicing.
Lubricate with modern synthetic oils sparingly, adhering to vintage watch maintenance standards.
Confirm the calibre number on the movement before ordering parts to avoid errors.
Donor AS 5156 movements are excellent spares sources for rare or discontinued parts.
Why AS 5156 Spare Parts Matter
Genuine parts maintain the calibre’s accuracy, durability, and reliable automatic winding and complication function, crucial for dependable vintage watch operation.
Authentic restoration safeguards the historical value and collector appeal of classic Swiss movements.
Detailed technical information and active watchmaker communities facilitate efficient repairs and parts sourcing.
Maintaining your A. Schild AS 5156 calibre with quality spare parts ensures lasting performance and honors its legacy in horology.
