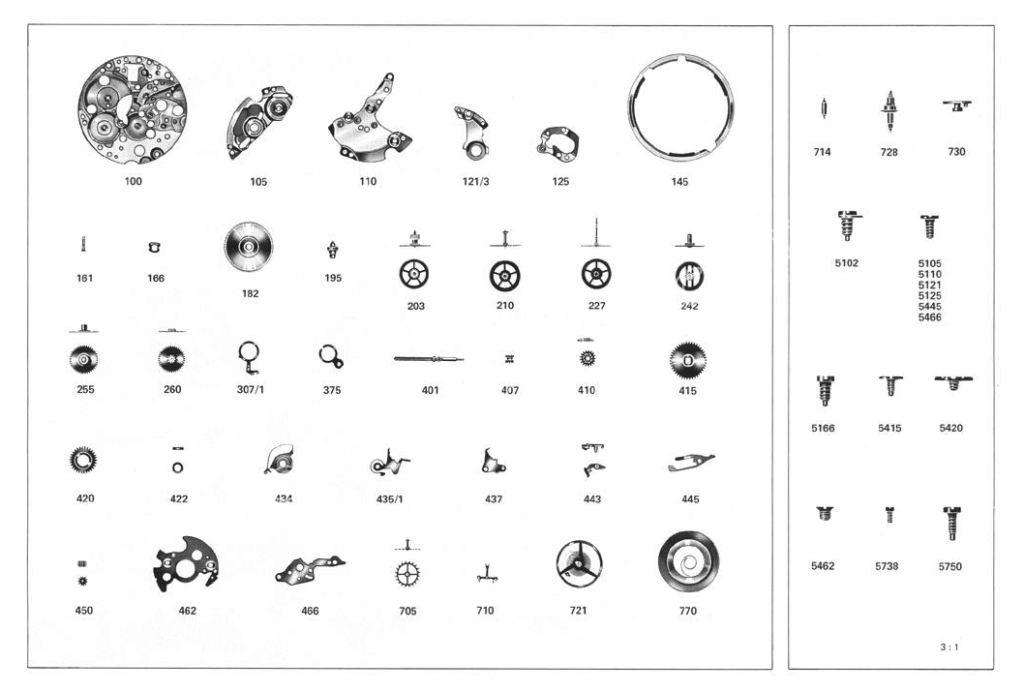

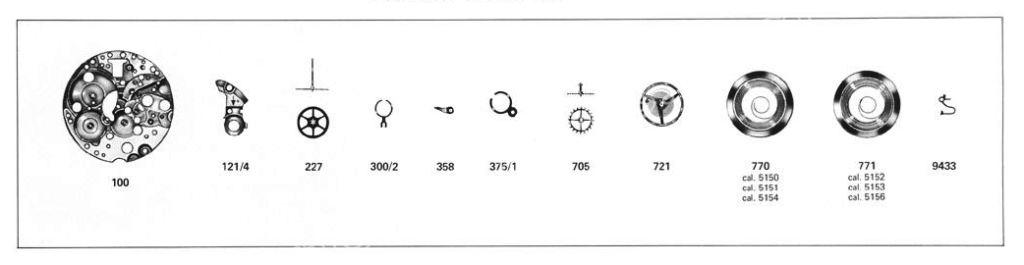

A Schild – AS Calibre 5152 Watch spare parts
| A Schild – AS Calibre 5152 – Part No. 100 plate |
| A Schild – AS Calibre 5152 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5152 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 5152 – Part No. 121/3 Balance cock |
| A Schild – AS Calibre 5152 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5152 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 5152 – Part No. 166 Casing clamp |
| A Schild – AS Calibre 5152 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5152 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5152 – Part No. 203 Center wheel |
| A Schild – AS Calibre 5152 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5152 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 5152 – Part No. 242 Cannon pinion driving wheel |
| A Schild – AS Calibre 5152 – Part No. 255 Hour wheel for Sweep Second |
| A Schild – AS Calibre 5152 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5152 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 5152 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 5152 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5152 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5152 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5152 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5152 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5152 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5152 – Part No. 434 Click spring |
| A Schild – AS Calibre 5152 – Part No. 435/1 spring Yoke |
| A Schild – AS Calibre 5152 – Part No. 437 Racking bar |
| A Schild – AS Calibre 5152 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5152 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 5152 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5152 – Part No. 462 Minute work cock |
| A Schild – AS Calibre 5152 – Part No. 466 Lit for Winding and Setting machaniams |
| A Schild – AS Calibre 5152 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5152 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5152 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5152 – Part No. 770 Mainspring |

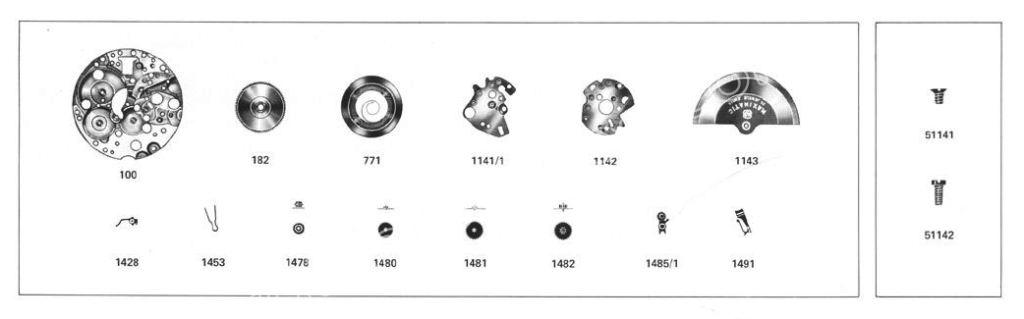

| A Schild – AS Calibre 5152 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 5152 – Part No. 1142 Bridge for automatic device |
| A Schild – AS Calibre 5152 – Part No. 1143 Oscillating weight |
| A Schild – AS Calibre 5152 – Part No. 1428 Stop click |
| A Schild – AS Calibre 5152 – Part No. 1453 Double function Automatic Device Spring |
| A Schild – AS Calibre 5152 – Part No. 1478 Oscillating weight pinion |
| A Schild – AS Calibre 5152 – Part No. 1480 Winding-up wheel |
| A Schild – AS Calibre 5152 – Part No. 1482 Driving gear for Ratchet wheel |
| A Schild – AS Calibre 5152 – Part No. 1485/1 Reverser mounted |
| A Schild – AS Calibre 5152 – Part No. 1491Oscillating weight bolt |
A. Schild (AS) Calibre 5152 Watch Spare Parts: Technical Overview and Sourcing Guide

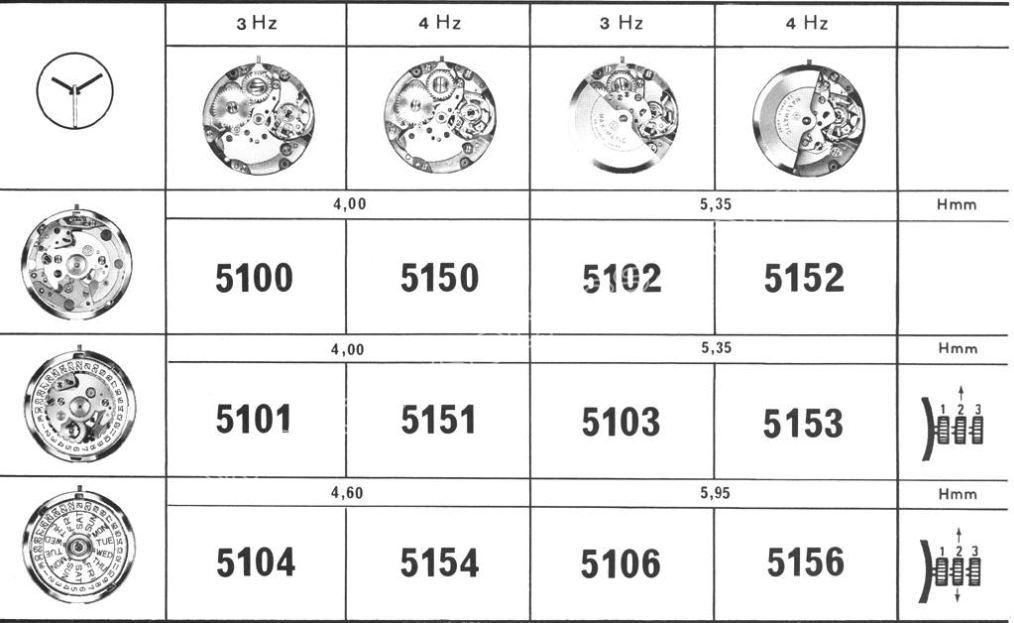

A. Schild (AS) Calibre 5152 is a Swiss automatic mechanical movement widely valued for its reliability and precision. Part of the well-known AS 5100 series, this calibre delivers robust performance, making it a favored option for vintage watch repairs and collectors seeking authentic parts.
Key Technical Highlights
Calibre: AS 5152
Movement Type: Automatic, mechanical
Jewels: Typically 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 50 hours
Functions: Hours, minutes, sweep seconds, day-date complications
Lift Angle: Approximately 52°
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings ensure steady power transmission and longevity.
Balance Wheel and Balance Staff: Precision parts vital for accurate timekeeping and shock absorption; exact replacements required.
Pallet Fork and Escape Wheel: Critical escapement parts prone to wear; use genuine or NOS parts for optimal function.
Gear Train Wheels: Minute, third, and fourth wheels often replaced, sourced from NOS or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Well-fitting components necessary for smooth winding and time/date setting.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must adhere to original layout.
Hands and Dial Components: Authentic parts preserve the vintage aesthetics and boost collector value.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts designed explicitly for AS 5152 to ensure perfect fit and quality.
Handle balance and escapement parts with care during servicing to prevent damage.
Apply modern synthetic oils sparingly, following best practices in vintage watch lubrication.
Confirm the calibre number on the movement before ordering parts to avoid compatibility issues.
Donor AS 5152 movements are valuable parts sources for rare or discontinued components.
Why AS 5152 Spare Parts Matter
Genuine spare parts maintain the calibre’s accuracy, durability, and smooth automatic winding and complication function, key for reliable vintage watch performance.
Authentic restorations protect the historical importance and collector appeal of Swiss mechanical watches.
Comprehensive technical documentation and watchmaker networks facilitate efficient repairs and sourcing.
Maintaining your A. Schild AS 5152 calibre with quality spare parts ensures reliable operation and honors its place in Swiss horology.
