A Schild – AS Calibre 5101 Watch spare parts

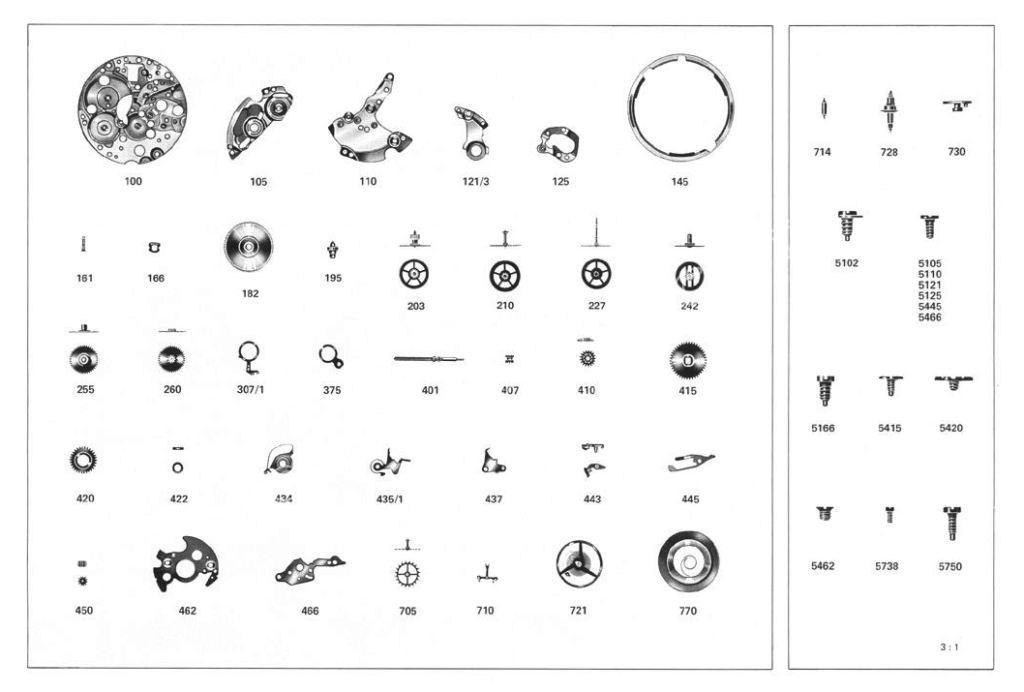

| A Schild – AS Calibre 5101 – Part No. 100 plate |
| A Schild – AS Calibre 5101 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5101 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 5101 – Part No. 121/3 Balance cock |
| A Schild – AS Calibre 5101 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5101 – Part No. 161 Center Pipe |
| A Schild – AS Calibre 5101 – Part No. 166 Casing clamp |
| A Schild – AS Calibre 5101 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5101 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5101 – Part No. 203 Center wheel |
| A Schild – AS Calibre 5101 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5101 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 5101 – Part No. 242 Cannon pinion driving wheel |
| A Schild – AS Calibre 5101 – Part No. 255 Hour wheel for Sweep Second |
| A Schild – AS Calibre 5101 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5101 – Part No. 307/1 Regulator for Adjustable Stud Holder |
| A Schild – AS Calibre 5101 – Part No. 375 Adjustable Stud Holder |
| A Schild – AS Calibre 5101 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5101 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5101 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5101 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5101 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5101 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5101 – Part No. 434 Click spring |
| A Schild – AS Calibre 5101 – Part No. 435/1 spring Yoke |
| A Schild – AS Calibre 5101 – Part No. 437 Racking bar |
| A Schild – AS Calibre 5101 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5101 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 5101 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5101 – Part No. 462 Minute work cock |
| A Schild – AS Calibre 5101 – Part No. 466 Lit for Winding and Setting machaniams |
| A Schild – AS Calibre 5101 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5101 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5101 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5101 – Part No. 770 Mainspring |

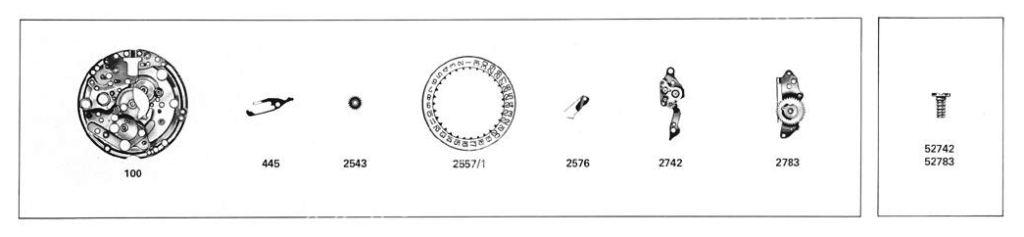

| A Schild – AS Calibre 5101 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 5101 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 5101 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 5101 – Part No. 2742 Corrector module |
| A Schild – AS Calibre 5101 – Part No. 2783 Instantaneous Unlocking module |

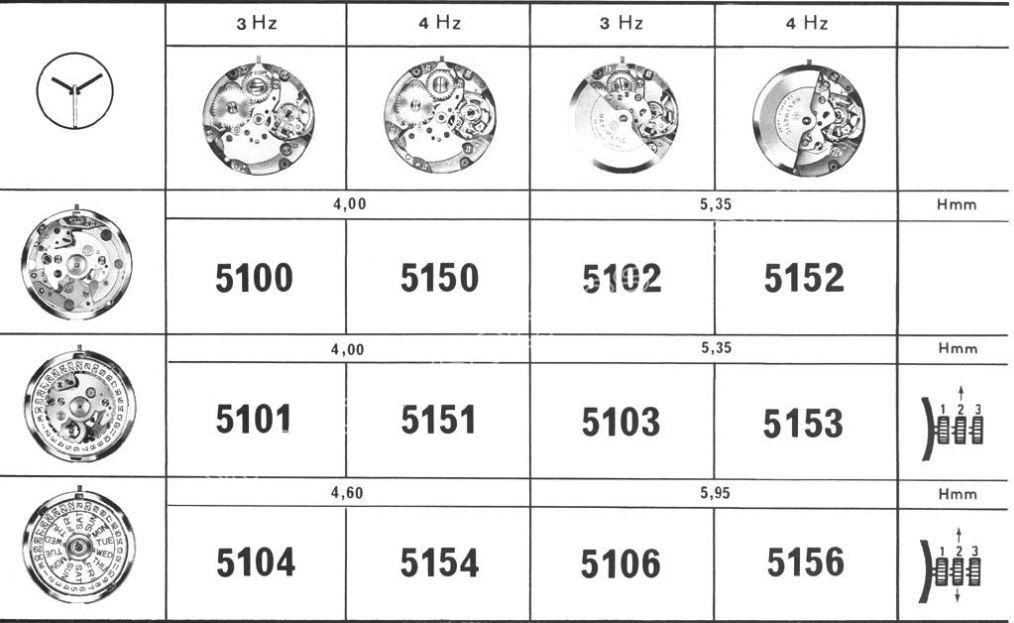

A. Schild (AS) Calibre 5101 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 5101 is a classic Swiss manual-wind mechanical movement, known for its precision, durability, and reliable performance. This calibre measures 19.7 mm in diameter (8.75 lignes) and features 17 jewels and a beat rate of 21,600 vibrations per hour. Popular during the early 1970s, the AS 5101 offers a power reserve of approximately 50 hours, making it a favored choice for vintage watch collectors and horology enthusiasts.
Key Technical Highlights
Calibre: AS 5101
Movement Type: Manual winding, mechanical
Diameter: 19.7 mm (8.75 lignes)
Jewels: 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 50 hours
Lift Angle: 53°
Period Used: Circa 1972 onwards
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings ensure consistent power and movement longevity.
Balance Wheel and Balance Staff: Precision parts essential for accurate timekeeping and shock resistance; accurate replacements are critical.
Pallet Fork and Escape Wheel: Escapement components prone to wear; genuine or NOS replacements ensure smooth operation.
Gear Train Wheels: Minute, third, and fourth wheels may require replacement sourced from NOS or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Well-fitting parts are vital for smooth winding and time setting.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must match original positions.
Hands and Dial Components: Authentic parts maintain vintage aesthetic and collector value.
Sourcing and Maintenance Tips
Always procure original, NOS, or donor parts designed specifically for AS 5101 to ensure proper fit and performance.
Handle delicate components like the balance and escapement carefully during servicing.
Apply modern synthetic lubricants sparingly following vintage watch maintenance standards.
Confirm the calibre number engraved on the movement before ordering parts to avoid incompatibility.
Donor AS 5101 movements are valuable sources for rare or discontinued parts.
Why AS 5101 Spare Parts Matter
Genuine parts preserve the calibre’s accuracy, durability, and smooth manual winding, essential for reliable vintage watch operation.
Authentic restoration safeguards the historical significance and boosts collector appeal of this classic Swiss movement.
Extensive technical documentation and watchmaker networks support efficient repairs and parts sourcing.
Maintaining your A. Schild AS 5101 calibre with quality spare parts guarantees longevity and honors its place in horology.
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
