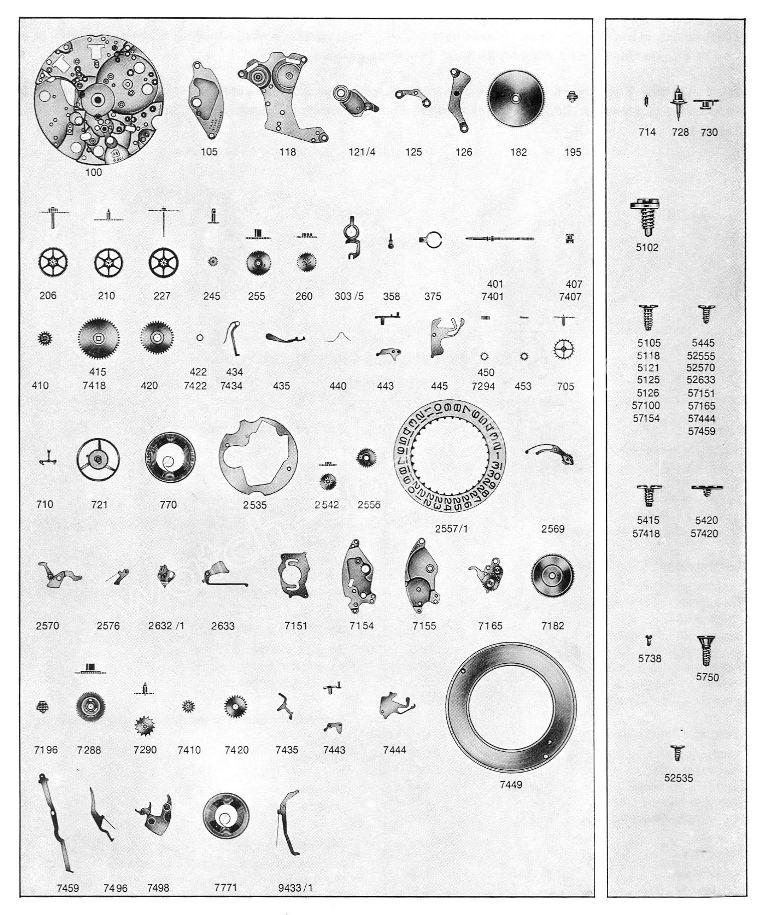

A Schild – AS Calibre 5008 Watch spare parts
| A Schild – AS Calibre 5008 – Part No. 100 plate |
| A Schild – AS Calibre 5008 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5008 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 5008 – Part No. 121/4 Balance cock For Stud Holder for flat hairspring |
| A Schild – AS Calibre 5008 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5008 – Part No. 126 Center Wheel cock |
| A Schild – AS Calibre 5008 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5008 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5008 – Part No. 206 Center wheel |
| A Schild – AS Calibre 5008 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5008 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 5008 – Part No. 245 Cannon pinion with clam notch |
| A Schild – AS Calibre 5008 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 5008 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5008 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 5008 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 5008 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 5008 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5008 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5008 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5008 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5008 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5008 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5008 – Part No. 434 Click spring |
| A Schild – AS Calibre 5008 – Part No. 435 Yoke |
| A Schild – AS Calibre 5008 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 5008 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5008 – Part No. 445 Setting lever spring |
| A Schild – AS Calibre 5008 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5008 – Part No. 453lntermediate date wheel |
| A Schild – AS Calibre 5008 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5008 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5008 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 5008 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5008 – Part No. 770 Mainspring |
| A Schild – AS Calibre 5008 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 5008 – Part No. 2542 Date Setting wheel |
| A Schild – AS Calibre 5008 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 5008 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 5008 – Part No. 2569 Double Corrector |
| A Schild – AS Calibre 5008 – Part No. 2570 Lever for Double Corrector |
| A Schild – AS Calibre 5008 – Part No. 2576 Date Jumper,mounted |
| A Schild – AS Calibre 5008 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 5008 – Part No. 2633 Unlocking yoke for date indicator |
| A Schild – AS Calibre 5008 – Part No. 7151 Unlocking wheel holder |
| A Schild – AS Calibre 5008 – Part No. 7154 Bridge for Alarm device |
| A Schild – AS Calibre 5008 – Part No. 7155 Lower Bridge for Alarm device |
| A Schild – AS Calibre 5008 – Part No. 7165 Alarm setting device |
| A Schild – AS Calibre 5008 – Part No. 7182 Alarm Barrel and cover |
| A Schild – AS Calibre 5008 – Part No. 7196 Alarm Barrel arbor |
| A Schild – AS Calibre 5008 – Part No. 7288 Unlocking Wheel |
| A Schild – AS Calibre 5008 – Part No. 7290 Alarm Wheel |
| A Schild – AS Calibre 5008 – Part No. 7294 Alarm Setting connection Wheel |
| A Schild – AS Calibre 5008 – Part No. 7401 Alarm Winding stem |
| A Schild – AS Calibre 5008 – Part No. 7407 Alarm Clutch wheel |
| A Schild – AS Calibre 5008 – Part No. 7410 Alarm Winding pinion |
| A Schild – AS Calibre 5008 – Part No. 7418 Alarm Ratchet wheel |
| A Schild – AS Calibre 5008 – Part No. 7420 Alarm Crown wheel |
| A Schild – AS Calibre 5008 – Part No. 7422 Alarm Crown wheel ring |
| A Schild – AS Calibre 5008 – Part No. 7434 Alarm Clicking spring |
| A Schild – AS Calibre 5008 – Part No. 7435 Alarm Yoke |
| A Schild – AS Calibre 5008 – Part No. 7443 Alarm Setting lever |
| A Schild – AS Calibre 5008 – Part No. 7444 Alarm Setting Iever spring |
| A Schild – AS Calibre 5008 – Part No. 7449 Alarm ring |
| A Schild – AS Calibre 5008 – Part No. 7459 Disconnector |
| A Schild – AS Calibre 5008 – Part No. 7496 Alarm Bolt |
| A Schild – AS Calibre 5008 – Part No. 7498 Alarm Hammer |
| A Schild – AS Calibre 5008 – Part No. 7771 Alarm Mainspring |
| A Schild – AS Calibre 5008 – Part No. 9433/1 Stop lever mounted |
A. Schild (AS) Calibre 5008 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 5008 is a notable Swiss automatic alarm movement produced between 1973 and 1977. Renowned for its sophisticated dual-barrel system, it features automatic winding for both the timekeeping and alarm barrels using a unidirectional rotor with a unique mechanism that winds each barrel in opposite directions. With its advanced day-date complication and alarm function, the calibre remains highly sought after by collectors and watchmakers specializing in vintage alarm watches.
Key Technical Highlights
Calibre: AS 5008
Movement Type: Automatic, mechanical
Diameter: 30.00 mm (13.25 lignes)
Height: 7.60 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Power Reserve: Approximately 49 hours
Functions: Sweep seconds, alarm, day and date with quickset, hacking seconds, hand winding
Special Features: Dual barrels with rotor winding both alarm and time barrels in opposite directions; unique gong placement for alarm sound amplification.
Era: 1970s
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings provide consistent power for both barrels.
Balance Wheel and Balance Staff: Precision parts essential for accurate timekeeping and shock resistance.
Alarm Module Components: Includes alarm barrels, hammers, ratchets, gongs placed between movement and dial for sound amplification.
Pallet Fork and Escape Wheel: Escapement parts prone to wear; genuine NOS parts recommended.
Gear Train Wheels: Minute, third, and fourth wheels are frequently replaced due to wear, typically sourced from NOS or donor movements.
Setting Mechanism (Stem, Crowns, Levers, Springs): Two crowns control time/date and alarm setting; exact-fit parts ensure smooth operation.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must maintain original layout.
Hands and Dial Components: Authentic parts preserve vintage aesthetics and maintain collector appeal.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts designed specifically for AS 5008 to maintain compatibility and reliability.
Handle delicate alarm and escapement components with care during maintenance.
Apply modern synthetic lubricants sparingly in accordance with vintage servicing standards.
Verify the calibre number on the movement before ordering parts to avoid mismatches.
Donor AS 5008 and compatible family movements are excellent sources for rare and discontinued parts.
Why AS 5008 Spare Parts Matter
Genuine components sustain the calibre’s exacting precision, dual-barrel automatic winding, reliable alarm, and day-date functions, essential for maintaining vintage watch performance.
Authentic restoration protects the historical significance and collector value of this classic Swiss movement.
Comprehensive technical documentation and watchmaker communities aid efficient repairs and parts sourcing.
Maintaining your A. Schild AS 5008 calibre with quality spare parts guarantees enduring performance and honors its Swiss horological heritage.
