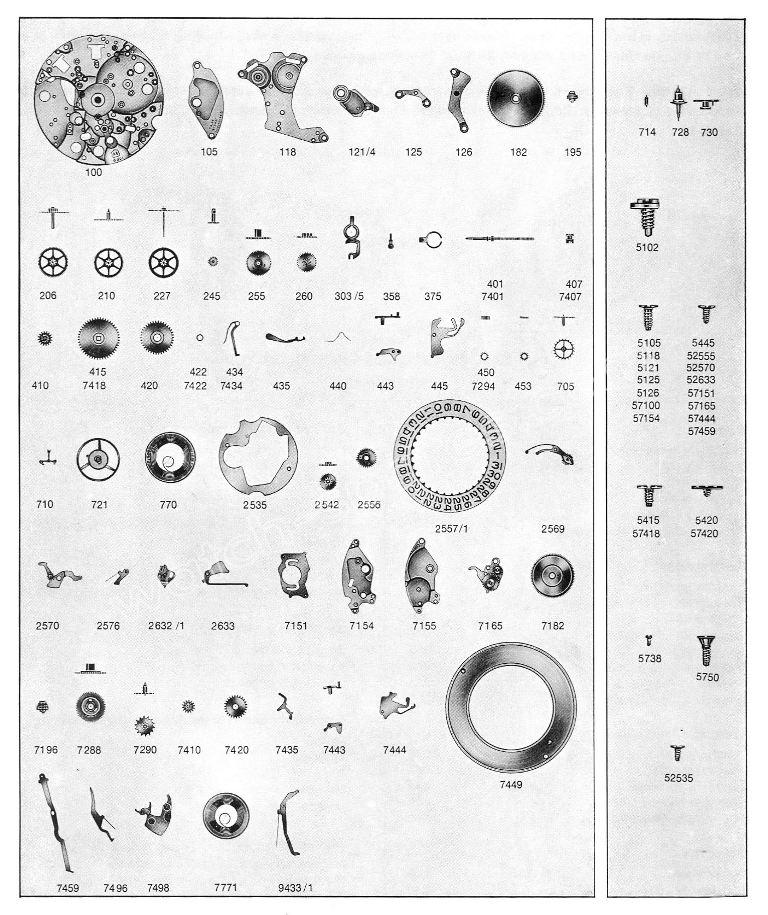

A Schild – AS Calibre 5005 Watch spare parts
| A Schild – AS Calibre 5005 – Part No. 100 plate |
| A Schild – AS Calibre 5005 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5005 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 5005 – Part No. 121/4 Balance cock For Stud Holder for flat hairspring |
| A Schild – AS Calibre 5005 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5005 – Part No. 126 Center Wheel cock |
| A Schild – AS Calibre 5005 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5005 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5005 – Part No. 206 Center wheel |
| A Schild – AS Calibre 5005 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5005 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 5005 – Part No. 245 Cannon pinion with clam notch |
| A Schild – AS Calibre 5005 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 5005 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5005 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 5005 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 5005 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 5005 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5005 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5005 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5005 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5005 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5005 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5005 – Part No. 434 Click spring |
| A Schild – AS Calibre 5005 – Part No. 435 Yoke |
| A Schild – AS Calibre 5005 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 5005 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5005 – Part No. 445 Setting lever spring |
| A Schild – AS Calibre 5005 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5005 – Part No. 453lntermediate date wheel |
| A Schild – AS Calibre 5005 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5005 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5005 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 5005 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5005 – Part No. 770 Mainspring |
| A Schild – AS Calibre 5005 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 5005 – Part No. 2542 Date Setting wheel |
| A Schild – AS Calibre 5005 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 5005 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 5005 – Part No. 2569 Double Corrector |
| A Schild – AS Calibre 5005 – Part No. 2570 Lever for Double Corrector |
| A Schild – AS Calibre 5005 – Part No. 2576 Date Jumper,mounted |
| A Schild – AS Calibre 5005 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 5005 – Part No. 2633 Unlocking yoke for date indicator |
| A Schild – AS Calibre 5005 – Part No. 7151 Unlocking wheel holder |
| A Schild – AS Calibre 5005 – Part No. 7154 Bridge for Alarm device |
| A Schild – AS Calibre 5005 – Part No. 7155 Lower Bridge for Alarm device |
| A Schild – AS Calibre 5005 – Part No. 7165 Alarm setting device |
| A Schild – AS Calibre 5005 – Part No. 7182 Alarm Barrel and cover |
| A Schild – AS Calibre 5005 – Part No. 7196 Alarm Barrel arbor |
| A Schild – AS Calibre 5005 – Part No. 7288 Unlocking Wheel |
| A Schild – AS Calibre 5005 – Part No. 7290 Alarm Wheel |
| A Schild – AS Calibre 5005 – Part No. 7294 Alarm Setting connection Wheel |
| A Schild – AS Calibre 5005 – Part No. 7401 Alarm Winding stem |
| A Schild – AS Calibre 5005 – Part No. 7407 Alarm Clutch wheel |
| A Schild – AS Calibre 5005 – Part No. 7410 Alarm Winding pinion |
| A Schild – AS Calibre 5005 – Part No. 7418 Alarm Ratchet wheel |
| A Schild – AS Calibre 5005 – Part No. 7420 Alarm Crown wheel |
| A Schild – AS Calibre 5005 – Part No. 7422 Alarm Crown wheel ring |
| A Schild – AS Calibre 5005 – Part No. 7434 Alarm Clicking spring |
| A Schild – AS Calibre 5005 – Part No. 7435 Alarm Yoke |
| A Schild – AS Calibre 5005 – Part No. 7443 Alarm Setting lever |
| A Schild – AS Calibre 5005 – Part No. 7444 Alarm Setting Iever spring |
| A Schild – AS Calibre 5005 – Part No. 7449 Alarm ring |
| A Schild – AS Calibre 5005 – Part No. 7459 Disconnector |
| A Schild – AS Calibre 5005 – Part No. 7496 Alarm Bolt |
| A Schild – AS Calibre 5005 – Part No. 7498 Alarm Hammer |
| A Schild – AS Calibre 5005 – Part No. 7771 Alarm Mainspring |
| A Schild – AS Calibre 5005 – Part No. 9433/1 Stop lever mounted |
A. Schild (AS) Calibre 5005 Watch Spare Parts: Technical Overview and Sourcing Guide

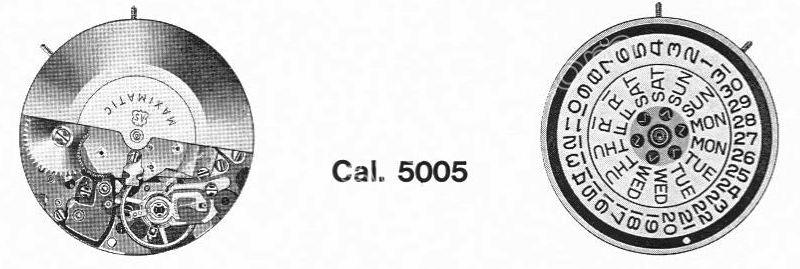

A. Schild (AS) Calibre 5005 is a distinguished Swiss automatic mechanical movement featuring a day-date complication along with an alarm function. Part of the notable AS 5000 family produced in the 1970s, the calibre is recognized for its reliability, high frequency, and multiple crown functions designed for precise time and alarm setting.
Key Technical Highlights
Calibre: AS 5005
Movement Type: Automatic, mechanical
Diameter: 30.00 mm (13.25 lignes)
Height: Approximately 6.00 mm
Jewels: Usually 17, 21, or 25 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Functions: Hours, minutes, sweep seconds, alarm, day and date display, hacking seconds
Power Reserve: Approx. 40-49 hours
Era: 1970s
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) parts to maintain consistent power delivery.
Balance Wheel and Balance Staff: Crucial for precision timekeeping and shock resistance; exact fits needed.
Alarm Mechanism Parts: Specialized alarm barrels, hammers, ratchets, and gongs unique to AS 5005’s alarm system.
Pallet Fork and Escape Wheel: Key escapement components that require genuine or NOS replacements.
Gear Train Wheels: Minute, third, and fourth wheels often replaced, commonly sourced from NOS or donor movements.
Setting Mechanism (Stems, Crowns, Levers, Springs): Accurate fit crucial for smooth setting of time, alarm, day, and date.
Jewels: Synthetic ruby bearings that reduce friction and wear; replacements need to match original layout.
Hands and Dial Components: Authentic parts preserve vintage aesthetics and collector value.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts specifically intended for AS 5005 for guaranteed compatibility and performance.
Handle alarm mechanism and balance components with care during repair and servicing.
Follow vintage lubrication protocols using modern synthetic oils sparingly.
Confirm the calibre number on the movement before ordering parts to avoid mistakes.
Donor movements from the AS 5000 family serve as excellent parts sources.
Why AS 5005 Spare Parts Matter
Genuine parts retain the calibre’s accuracy, reliable alarm function, and day-date complications, vital for dependable vintage watch operation.
Proper restoration protects the historical significance and enhances collector appeal of these sought-after Swiss movements.
Comprehensive technical archives and watchmaker communities facilitate efficient parts sourcing and expert servicing.
Maintaining your A. Schild AS 5005 calibre with authentic spare parts ensures reliable performance and honors Swiss horological craftsmanship.
