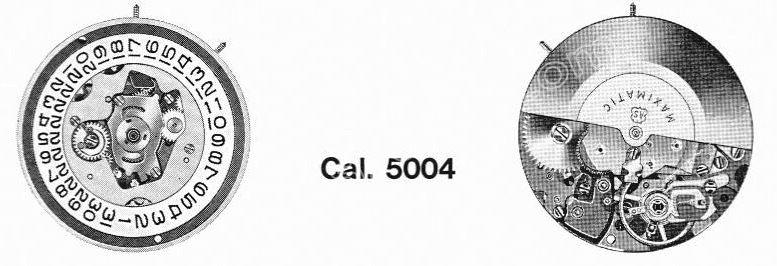

A Schild – AS Calibre 5004 Watch spare parts

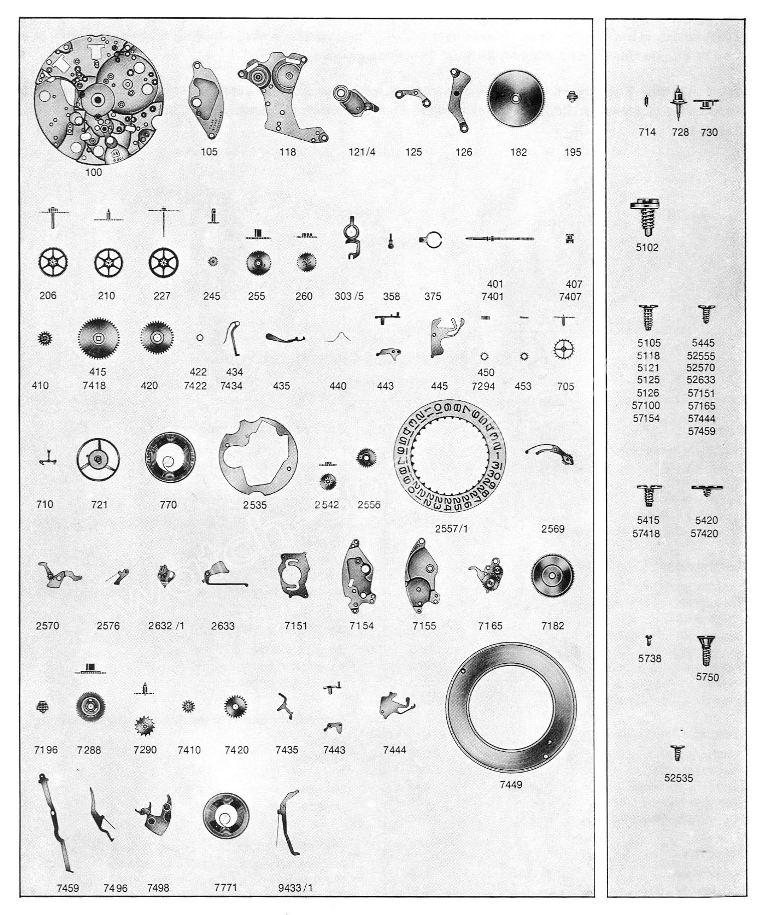

| A Schild – AS Calibre 5004 – Part No. 100 plate |
| A Schild – AS Calibre 5004 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5004 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 5004 – Part No. 121/4 Balance cock For Stud Holder for flat hairspring |
| A Schild – AS Calibre 5004 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5004 – Part No. 126 Center Wheel cock |
| A Schild – AS Calibre 5004 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5004 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5004 – Part No. 206 Center wheel |
| A Schild – AS Calibre 5004 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5004 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 5004 – Part No. 245 Cannon pinion with clam notch |
| A Schild – AS Calibre 5004 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 5004 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5004 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 5004 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 5004 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 5004 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5004 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5004 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5004 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5004 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5004 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5004 – Part No. 434 Click spring |
| A Schild – AS Calibre 5004 – Part No. 435 Yoke |
| A Schild – AS Calibre 5004 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 5004 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5004 – Part No. 445 Setting lever spring |
| A Schild – AS Calibre 5004 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5004 – Part No. 453lntermediate date wheel |
| A Schild – AS Calibre 5004 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5004 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5004 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 5004 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5004 – Part No. 770 Mainspring |
| A Schild – AS Calibre 5004 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 5004 – Part No. 2542 Date Setting wheel |
| A Schild – AS Calibre 5004 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 5004 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 5004 – Part No. 2569 Double Corrector |
| A Schild – AS Calibre 5004 – Part No. 2570 Lever for Double Corrector |
| A Schild – AS Calibre 5004 – Part No. 2576 Date Jumper,mounted |
| A Schild – AS Calibre 5004 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 5004 – Part No. 2633 Unlocking yoke for date indicator |
| A Schild – AS Calibre 5004 – Part No. 7151 Unlocking wheel holder |
| A Schild – AS Calibre 5004 – Part No. 7154 Bridge for Alarm device |
| A Schild – AS Calibre 5004 – Part No. 7155 Lower Bridge for Alarm device |
| A Schild – AS Calibre 5004 – Part No. 7165 Alarm setting device |
| A Schild – AS Calibre 5004 – Part No. 7182 Alarm Barrel and cover |
| A Schild – AS Calibre 5004 – Part No. 7196 Alarm Barrel arbor |
| A Schild – AS Calibre 5004 – Part No. 7288 Unlocking Wheel |
| A Schild – AS Calibre 5004 – Part No. 7290 Alarm Wheel |
| A Schild – AS Calibre 5004 – Part No. 7294 Alarm Setting connection Wheel |
| A Schild – AS Calibre 5004 – Part No. 7401 Alarm Winding stem |
| A Schild – AS Calibre 5004 – Part No. 7407 Alarm Clutch wheel |
| A Schild – AS Calibre 5004 – Part No. 7410 Alarm Winding pinion |
| A Schild – AS Calibre 5004 – Part No. 7418 Alarm Ratchet wheel |
| A Schild – AS Calibre 5004 – Part No. 7420 Alarm Crown wheel |
| A Schild – AS Calibre 5004 – Part No. 7422 Alarm Crown wheel ring |
| A Schild – AS Calibre 5004 – Part No. 7434 Alarm Clicking spring |
| A Schild – AS Calibre 5004 – Part No. 7435 Alarm Yoke |
| A Schild – AS Calibre 5004 – Part No. 7443 Alarm Setting lever |
| A Schild – AS Calibre 5004 – Part No. 7444 Alarm Setting Iever spring |
| A Schild – AS Calibre 5004 – Part No. 7449 Alarm ring |
| A Schild – AS Calibre 5004 – Part No. 7459 Disconnector |
| A Schild – AS Calibre 5004 – Part No. 7496 Alarm Bolt |
| A Schild – AS Calibre 5004 – Part No. 7498 Alarm Hammer |
| A Schild – AS Calibre 5004 – Part No. 7771 Alarm Mainspring |
| A Schild – AS Calibre 5004 – Part No. 9433/1 Stop lever mounted |
A. Schild (AS) Calibre 5004 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 5004 is a Swiss automatic mechanical movement celebrated for its reliability, precision, and range of functions, including an alarm complication. This movement shares similarities with the AS 5008 but is distinguished by the absence of a calendar module. It was widely used in the 1970s and is coveted by collectors and watchmakers restoring vintage alarm watches.
Key Technical Highlights
Calibre: AS 5004
Movement Type: Automatic, mechanical
Diameter: 30 mm (13.25 lignes)
Height: 6.85 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Functions: Sweep seconds, hacking seconds, alarm function, automatic winding
Power Reserve: Approximately 49 hours
Features: Screw-in alarm components, manual alarm set, stop seconds function
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings provide consistent power delivery and durability.
Balance Wheel and Balance Staff: Precision components for accurate timekeeping and shock resistance; genuine replacements necessary.
Alarm Module Parts: Specialized parts including alarm barrels, hammers, ratchets, and gongs unique to the AS 5004’s alarm mechanism.
Pallet Fork and Escape Wheel: Key escapement parts that require authentic or NOS parts for optimal operation.
Gear Train Wheels: Replacement minute, third, and fourth wheels commonly sourced from NOS stock or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fit is vital for smooth time and alarm adjustments.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must match original layout.
Hands and Dial Components: Authentic parts maintain the vintage look and enhance collector value.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specifically intended for AS 5004 calibres to ensure proper fit and function.
Handle alarm components carefully during servicing to avoid damage.
Lubricate with modern synthetic oils sparingly, following vintage servicing standards.
Confirm the calibre number on the movement before ordering to avoid errors.
Donor movements are ideal sources for rare or discontinued parts.
Why AS 5004 Spare Parts Matter
Genuine parts maintain the calibre’s precision, robust alarm function, and reliable automatic winding, essential for high-quality vintage watch restoration.
Authentic restorations protect the historical and collector value of AS 5004-equipped timepieces.
Strong technical resources and watchmaker communities support accurate repairs and efficient parts sourcing.
Maintaining your A. Schild AS 5004 calibre with quality spare parts preserves its unique functionality and honors its place in Swiss horology.
