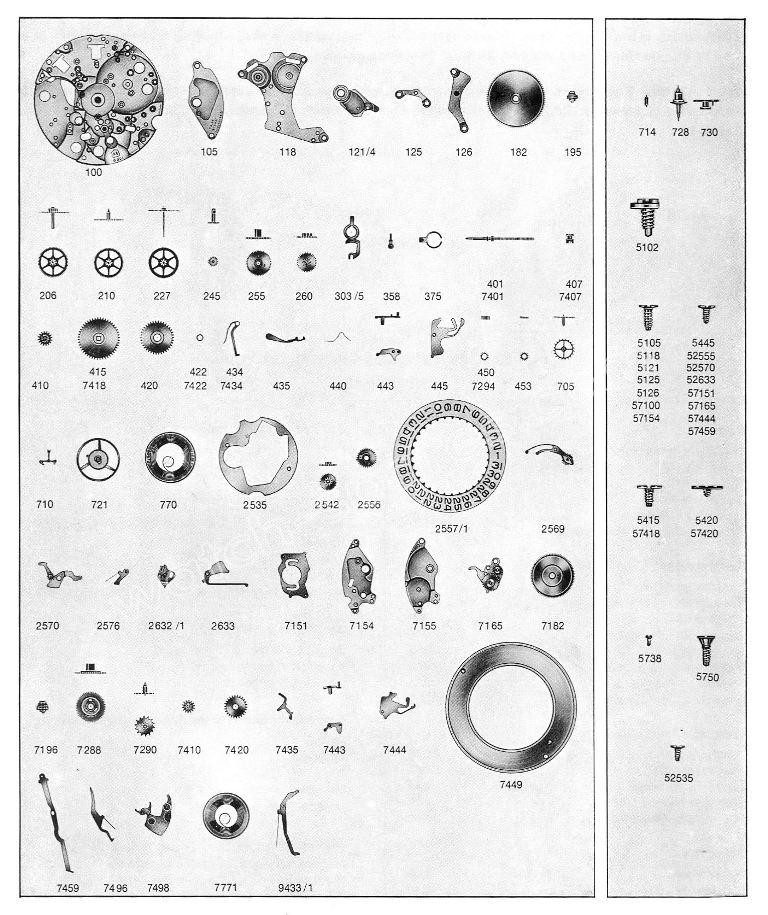

A Schild – AS Calibre 5001 Watch spare parts
| A Schild – AS Calibre 5001 – Part No. 100 plate |
| A Schild – AS Calibre 5001 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 5001 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 5001 – Part No. 121/4 Balance cock For Stud Holder for flat hairspring |
| A Schild – AS Calibre 5001 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 5001 – Part No. 126 Center Wheel cock |
| A Schild – AS Calibre 5001 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 5001 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 5001 – Part No. 206 Center wheel |
| A Schild – AS Calibre 5001 – Part No. 210 Third wheel |
| A Schild – AS Calibre 5001 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 5001 – Part No. 245 Cannon pinion with clam notch |
| A Schild – AS Calibre 5001 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 5001 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 5001 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 5001 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 5001 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 5001 – Part No. 401 Winding stem |
| A Schild – AS Calibre 5001 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 5001 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 5001 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 5001 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 5001 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 5001 – Part No. 434 Click spring |
| A Schild – AS Calibre 5001 – Part No. 435 Yoke |
| A Schild – AS Calibre 5001 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 5001 – Part No. 443 Setting lever |
| A Schild – AS Calibre 5001 – Part No. 445 Setting lever spring |
| A Schild – AS Calibre 5001 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 5001 – Part No. 453lntermediate date wheel |
| A Schild – AS Calibre 5001 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 5001 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 5001 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 5001 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 5001 – Part No. 770 Mainspring |
| A Schild – AS Calibre 5001 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 5001 – Part No. 2542 Date Setting wheel |
| A Schild – AS Calibre 5001 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 5001 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 5001 – Part No. 2569 Double Corrector |
| A Schild – AS Calibre 5001 – Part No. 2570 Lever for Double Corrector |
| A Schild – AS Calibre 5001 – Part No. 2576 Date Jumper,mounted |
| A Schild – AS Calibre 5001 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 5001 – Part No. 2633 Unlocking yoke for date indicator |
| A Schild – AS Calibre 5001 – Part No. 7151 Unlocking wheel holder |
| A Schild – AS Calibre 5001 – Part No. 7154 Bridge for Alarm device |
| A Schild – AS Calibre 5001 – Part No. 7155 Lower Bridge for Alarm device |
| A Schild – AS Calibre 5001 – Part No. 7165 Alarm setting device |
| A Schild – AS Calibre 5001 – Part No. 7182 Alarm Barrel and cover |
| A Schild – AS Calibre 5001 – Part No. 7196 Alarm Barrel arbor |
| A Schild – AS Calibre 5001 – Part No. 7288 Unlocking Wheel |
| A Schild – AS Calibre 5001 – Part No. 7290 Alarm Wheel |
| A Schild – AS Calibre 5001 – Part No. 7294 Alarm Setting connection Wheel |
| A Schild – AS Calibre 5001 – Part No. 7401 Alarm Winding stem |
| A Schild – AS Calibre 5001 – Part No. 7407 Alarm Clutch wheel |
| A Schild – AS Calibre 5001 – Part No. 7410 Alarm Winding pinion |
| A Schild – AS Calibre 5001 – Part No. 7418 Alarm Ratchet wheel |
| A Schild – AS Calibre 5001 – Part No. 7420 Alarm Crown wheel |
| A Schild – AS Calibre 5001 – Part No. 7422 Alarm Crown wheel ring |
| A Schild – AS Calibre 5001 – Part No. 7434 Alarm Clicking spring |
| A Schild – AS Calibre 5001 – Part No. 7435 Alarm Yoke |
| A Schild – AS Calibre 5001 – Part No. 7443 Alarm Setting lever |
| A Schild – AS Calibre 5001 – Part No. 7444 Alarm Setting Iever spring |
| A Schild – AS Calibre 5001 – Part No. 7449 Alarm ring |
| A Schild – AS Calibre 5001 – Part No. 7459 Disconnector |
| A Schild – AS Calibre 5001 – Part No. 7496 Alarm Bolt |
| A Schild – AS Calibre 5001 – Part No. 7498 Alarm Hammer |
| A Schild – AS Calibre 5001 – Part No. 7771 Alarm Mainspring |
| A Schild – AS Calibre 5001 – Part No. 9433/1 Stop lever mounted |
A. Schild (AS) Calibre 5001 Watch Spare Parts: Technical Overview and Sourcing Guide

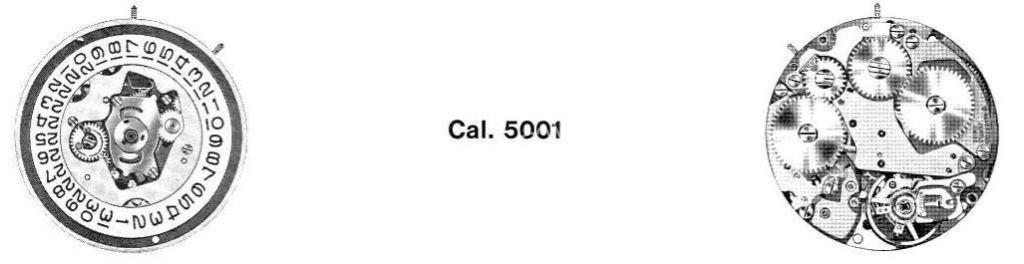

A. Schild (AS) Calibre 5001 is a sophisticated Swiss manual wind movement, part of the famous AS 5000 family. Known for its alarm complication and robust architecture, it is popular with collectors and watchmakers seeking vintage and specialty timepieces. The calibre measures 30 mm in diameter (13.25 lignes), 5.25 mm in height, and is available in both 17 and 21 jewel versions.
Key Technical Highlights
Movement Type: Manual winding, mechanical
Diameter: 30.00 mm (13.25 lignes)
Height: 5.25 mm
Jewels: 17 or 21 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Functions: Sweep seconds, alarm complication, time, date-only (no day)
Lift Angle: 52°
Era: 1970s
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings ensure consistent power delivery and longevity.
Balance Wheel and Balance Staff: Precision components essential to accurate timekeeping and shock absorption.
Alarm Module Parts: Includes specialized alarm barrels, hammers, and gongs unique to the 5001’s alarm function.
Pallet Fork and Escape Wheel: Critical for escapement; genuine and NOS parts recommended for smooth performance.
Gear Train Wheels: Replacement minute, third, and fourth wheels typically sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fit is vital for manual winding, alarm setting, and date correction.
Jewels: Synthetic ruby bearings minimize friction and wear, extending movement life.
Hands and Dial Components: Authentic parts are essential for maintaining collector appeal and proper function.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specifically made for AS 5001 to maintain performance and compatibility.
Confirm the calibre number on the main plate before ordering to avoid mismatches.
Handle delicate alarm components and balance parts with great care during repairs.
Donor AS 5001 and compatible family movements serve as excellent sources for rare and discontinued spare parts.
Why AS 5001 Spare Parts Matter
Genuine spares preserve the movement’s renowned alarm function, timing precision, and long-term reliability.
Proper restoration ensures value for collectors and the integrity of vintage watches.
Strong global communities and technical archives help streamline sourcing and expert servicing.
