A Schild – AS Calibre 2184 Watch spare parts

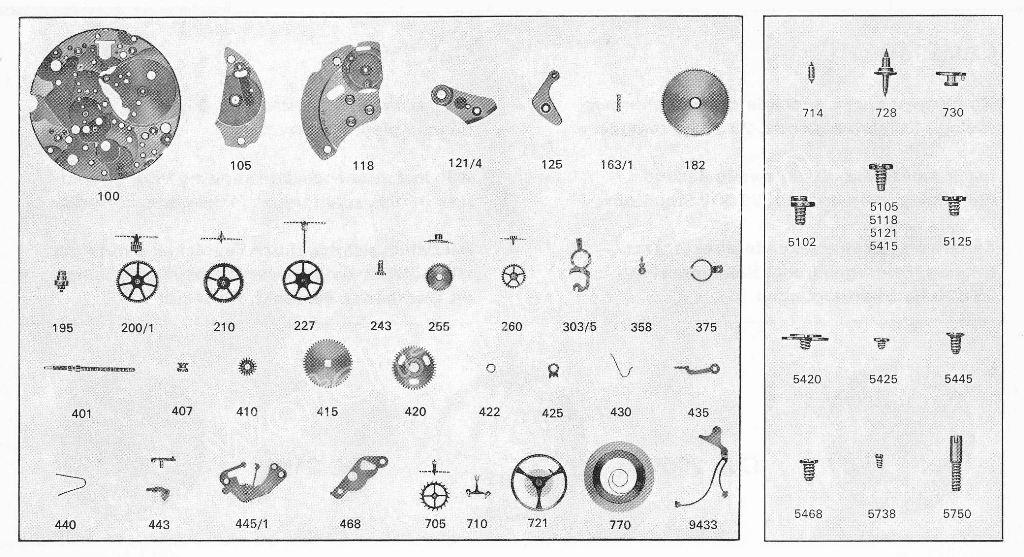

| A Schild – AS Calibre 2164 – Part No. 100 plate |
| A Schild – AS Calibre 2164 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 2164 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 2164 – Part No. 121/4 Balance cock |
| A Schild – AS Calibre 2164 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 2164 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 2164 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 2164 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 2164 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 2164 – Part No. 210 Third wheel |
| A Schild – AS Calibre 2164 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 2164 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 2164 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 2164 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 2164 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 2164 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 2164 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 2164 – Part No. 401 Winding stem |
| A Schild – AS Calibre 2164 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 2164 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 2164 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 2164 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 2164 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 2164 – Part No. 425 Click |
| A Schild – AS Calibre 2164 – Part No. 430 Click spring |
| A Schild – AS Calibre 2164 – Part No. 435 Yoke |
| A Schild – AS Calibre 2164 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 2164 – Part No. 443/1 Setting lever, mounted |
| A Schild – AS Calibre 2164 – Part No. 445/1 Setting lever spring, mounted |
| A Schild – AS Calibre 2164 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 2164 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 2164 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 2164 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 2164 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 2164 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 2164 – Part No. 770 Mainspring |
| A Schild – AS Calibre 2164 – Part No. 9433 Stop lever |

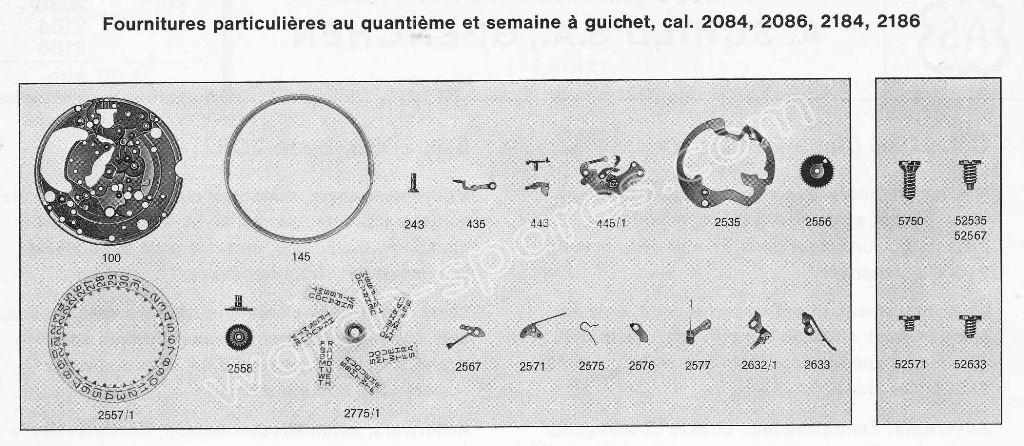

| A Schild – AS Calibre 2164 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 2164 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 2164 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 2164 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 2164 – Part No. 2561 Day star with disk not transferred |
| A Schild – AS Calibre 2164 – Part No. 2567 Day corrector |
| A Schild – AS Calibre 2164 – Part No. 2571 Day corrector spring |
| A Schild – AS Calibre 2164 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 2164 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 2164 – Part No. 2577 Day jumper |
| A Schild – AS Calibre 2164 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 2164 – Part No. 2633 Unlocking yoke for date indicator |
A. Schild (AS) Calibre 2184 Watch Spare Parts: Technical Overview and Sourcing Guide

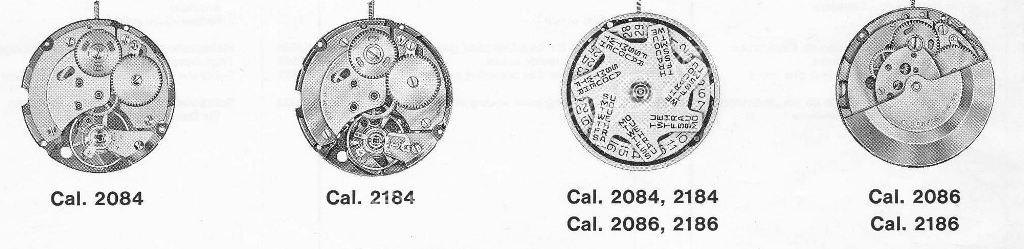

A. Schild (AS) Calibre 2184 is a respected Swiss manual-winding mechanical movement known for its robust design and practical features. Measuring 26 mm in diameter with a height of 5.2 mm, the calibre operates at 21,600 vibrations per hour (3 Hz) and offers reliable performance, making it popular among vintage watch collectors and professional watchmakers.
Key Technical Highlights
Calibre: AS 2184
Movement Type: Manual winding, mechanical
Diameter: 26 mm (11.5 lignes)
Height: 5.20 mm
Jewels: 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 50 hours
Functions: Hours, minutes, sweep seconds
Shock Protection: Incabloc or equivalent
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings ensure steady power delivery and longevity.
Balance Wheel and Balance Staff: Precision parts critical for accurate timekeeping and shock resistance; exact matches required.
Pallet Fork and Escape Wheel: Essential escapement elements susceptible to wear; genuine or NOS replacements preserve movement integrity.
Gear Train Wheels: Minute, third, and fourth wheels often replaced due to wear and sourced from NOS or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Well-fitting parts necessary for smooth winding and precise time setting.
Jewels: Synthetic ruby bearings reduce friction; replacements must adhere to the original layout.
Hands and Dial Components: Authentic parts maintain vintage watch aesthetics and collector value.
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
