A Schild – AS Calibre 2163 Watch spare parts

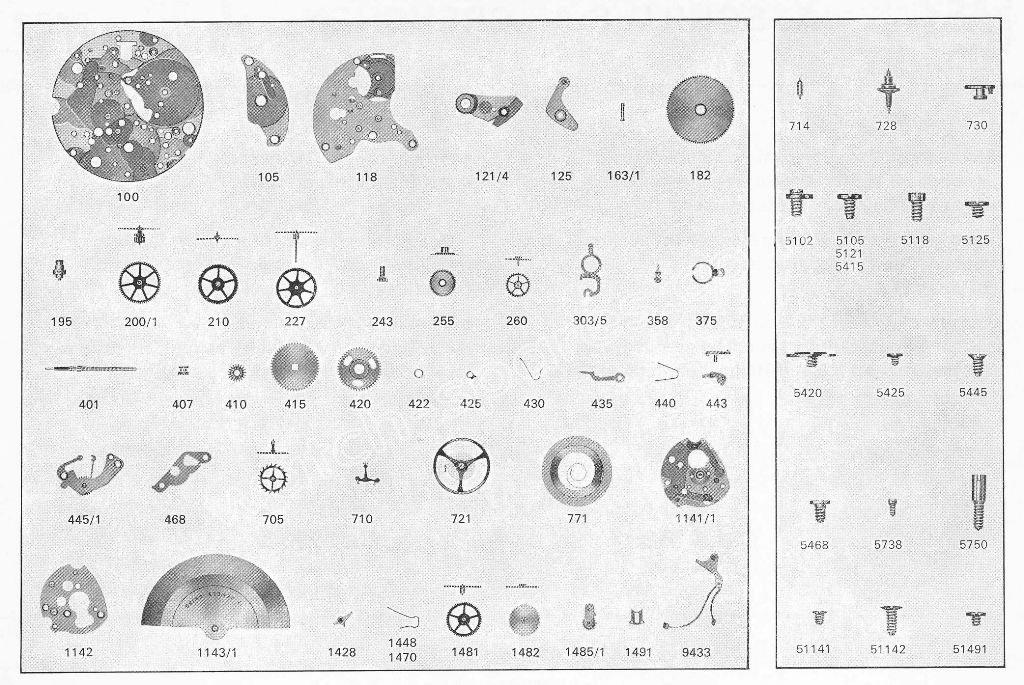

| A Schild – AS Calibre 2163 – Part No. 100 plate |
| A Schild – AS Calibre 2163 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 2163 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 2163 – Part No. 121/4 Balance cock |
| A Schild – AS Calibre 2163 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 2163 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 2163 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 2163 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 2163 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 2163 – Part No. 210 Third wheel |
| A Schild – AS Calibre 2163 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 2163 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 2163 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 2163 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 2163 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 2163 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 2163 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 2163 – Part No. 401 Winding stem |
| A Schild – AS Calibre 2163 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 2163 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 2163 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 2163 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 2163 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 2163 – Part No. 425 Click |
| A Schild – AS Calibre 2163 – Part No. 430 Click spring |
| A Schild – AS Calibre 2163 – Part No. 435 Yoke |
| A Schild – AS Calibre 2163 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 2163 – Part No. 443/1 Setting lever, mounted |
| A Schild – AS Calibre 2163 – Part No. 445/1 Setting lever spring, mounted |
| A Schild – AS Calibre 2163 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 2163 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 2163 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 2163 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 2163 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 2163 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 2163 – Part No. 770 Mainspring |
| A Schild – AS Calibre 2163 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 2163 – Part No. 1142 Upper bridge for automatic device |
| A Schild – AS Calibre 2163 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 2163 – Part No. 1155 Lower cock for reduclion gear |
| A Schild – AS Calibre 2163 – Part No. 1428 Stop click |
| A Schild – AS Calibre 2163 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 2163 – Part No. 1470 Reverser spring |
| A Schild – AS Calibre 2163 – Part No. 1481 Reducrion gear |
| A Schild – AS Calibre 2163 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 2163 – Part No. 1485/1 Reverser, mounled |
| A Schild – AS Calibre 2163 – Part No. 1491 Oscillating weight bolt |
| A Schild – AS Calibre 2163 – Part No. 9433 Stop lever |

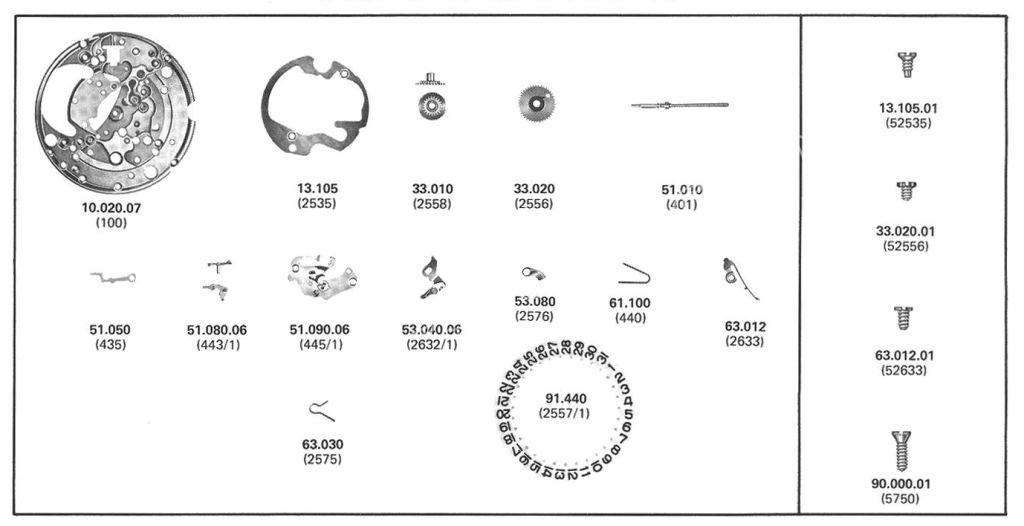

| A Schild – AS Calibre 2163 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 2163 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 2163 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 2163 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 2163 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 2163 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 2163 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 2163 – Part No. 2633 Unlocking yoke for date indicator |

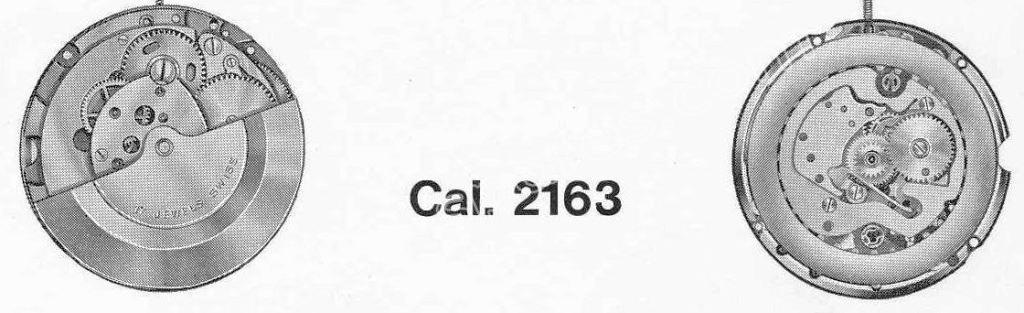

A. Schild (AS) Calibre 2163 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 2163 is a Swiss automatic movement distinguished by its 28,800 vibrations per hour high beat rate, robust build, and practical quickset date function. Produced in the 1970s, this calibre is favored for its accuracy, durability, and smooth automatic winding system, sought after by collectors and watchmakers restoring vintage timepieces.
Key Technical Highlights
Calibre: AS 2163
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: Approximately 5.20 mm
Jewels: 25 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Power Reserve: About 46 hours
Functions: Hours, minutes, sweep seconds, quickset date
Shock Protection: Typically Incabloc or equivalent
Lift Angle: 54°
Period Used: Around 1970
Common Spare Parts and Components
Mainspring and Barrel: New-old-stock (NOS) or original mainsprings key to reliable power and torque.
Balance Wheel and Balance Staff: Precision parts vital for timekeeping accuracy and durability; must fit exactly.
Pallet Fork and Escape Wheel: Durable escapement components that wear out and require genuine or NOS replacement parts.
Gear Train Wheels: Minute, third, fourth wheels commonly replaced, often sourced from NOS stock or donors.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate and well-fitting to ensure smooth winding and date setting.
Jewels: Synthetic ruby bearings reduce wear; replacements must adhere to original layout.
Hands and Dial Components: Proper period parts maintain vintage watch authenticity and value.
Sourcing and Maintenance Tips
Ensure use of original, NOS, or donor parts designed specifically for AS 2163 movements.
Take care in handling delicate components during cleaning and servicing.
Use modern synthetic oils sparingly following appropriate vintage watch protocols.
Confirm calibre number on the movement before ordering parts to avoid mistakes.
Donor AS 2163 movements are excellent parts sources for hard-to-find or worn components.
Why AS 2163 Spare Parts Matter
Genuine components maintain the calibre’s precision, smooth winding, and reliable quickset date, essential for vintage watch performance.
Authentic restoration supports the historical value and collector appeal of classic Swiss movements.
Detailed technical data and watchmaker communities aid efficient repairs and parts sourcing.
Maintaining your A. Schild AS 2163 calibre with quality spare parts ensures its reliable function and honors its horological heritage.
