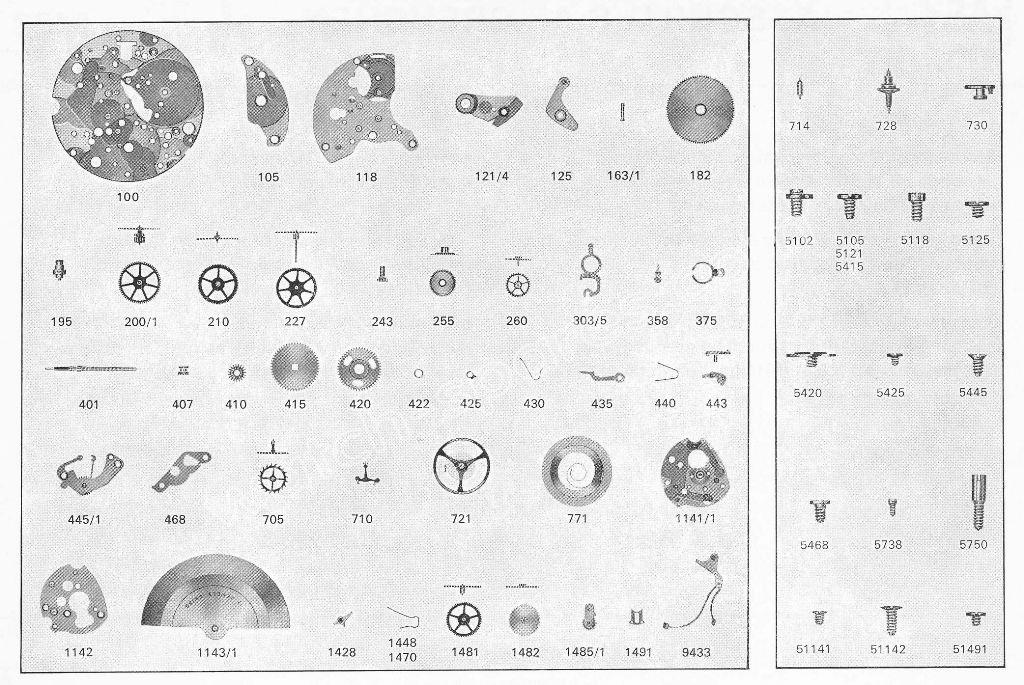

A Schild – AS Calibre 2162 Watch spare parts
| A Schild – AS Calibre 2162 – Part No. 100 plate |
| A Schild – AS Calibre 2162 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 2162 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 2162 – Part No. 121/4 Balance cock |
| A Schild – AS Calibre 2162 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 2162 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 2162 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 2162 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 2162 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 2162 – Part No. 210 Third wheel |
| A Schild – AS Calibre 2162 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 2162 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 2162 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 2162 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 2162 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 2162 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 2162 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 2162 – Part No. 401 Winding stem |
| A Schild – AS Calibre 2162 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 2162 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 2162 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 2162 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 2162 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 2162 – Part No. 425 Click |
| A Schild – AS Calibre 2162 – Part No. 430 Click spring |
| A Schild – AS Calibre 2162 – Part No. 435 Yoke |
| A Schild – AS Calibre 2162 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 2162 – Part No. 443/1 Setting lever, mounted |
| A Schild – AS Calibre 2162 – Part No. 445/1 Setting lever spring, mounted |
| A Schild – AS Calibre 2162 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 2162 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 2162 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 2162 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 2162 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 2162 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 2162 – Part No. 770 Mainspring |
| A Schild – AS Calibre 2062 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 2062 – Part No. 1142 Upper bridge for automatic device |
| A Schild – AS Calibre 2062 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 2062 – Part No. 1428 Stop click |
| A Schild – AS Calibre 2062 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 2062 – Part No. 1470 Reverser spring |
| A Schild – AS Calibre 2062 – Part No. 1481 Reducrion gear |
| A Schild – AS Calibre 2062 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 2062 – Part No. 1485/1 Reverser, mounled |
| A Schild – AS Calibre 2062 – Part No. 1491 Oscillating weight bolt |
| A Schild – AS Calibre 2162 – Part No. 9433 Stop lever |
| A Schild – AS Calibre 2162– Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 2162 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 2162 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 2162 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 2162 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 2162 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 2162 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 2162 – Part No. 2633 Unlocking yoke for date indicator |

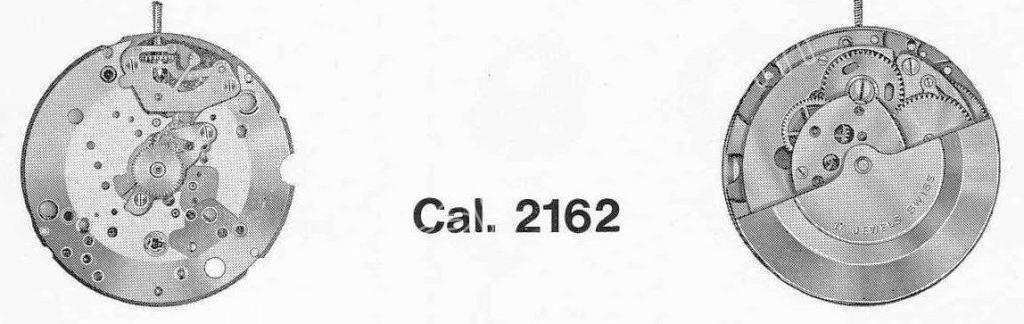

A. Schild (AS) Calibre 2162 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 2162 is a highly reliable Swiss automatic mechanical movement, appreciated for its precision, robustness, and modern high beat rate. Widely used in vintage watches during the 1970s, the calibre features a hack seconds function, smooth sweep second hand, and a strong power reserve, making it popular for collectors and watchmakers alike.
Key Technical Highlights
Calibre: AS 2162
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 5.20 mm
Jewels: 25 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Power Reserve: Approximately 46 hours
Features: Sweep seconds, hacking seconds function
Lift Angle: 54°
Era: Around 1970
Common Spare Parts and Components
Mainspring and Barrel: New-old-stock (NOS) or genuine mainsprings provide consistent power and durability.
Balance Wheel and Balance Staff: Precision parts essential to accuracy and shock resistance; must be perfectly matched.
Pallet Fork and Escape Wheel: Critical escapement components subject to wear; sourcing genuine or NOS parts is recommended.
Gear Train Wheels: Minute, third, and fourth wheels often replaced due to normal wear; NOS or donor parts typically used.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate and well-fitting parts ensure smooth winding and time setting.
Jewels: Synthetic ruby bearings reduce friction; replacements must conform to original design for longevity.
Hands and Dial Components: Period-correct parts maintain the watch’s vintage authenticity and collector appeal.
Sourcing and Maintenance Tips
Use only original, NOS, or donor parts designed for AS 2162 to ensure reliability and proper fit.
Handle delicate components like the balance assembly and escapement with care during servicing.
Apply modern synthetic lubricants sparingly consistent with vintage servicing methods.
Confirm the calibre number on the movement before ordering parts to avoid incompatibility.
Donor AS 2162 movements offer excellent sources for rare or worn parts.
Why AS 2162 Spare Parts Matter
Genuine parts uphold the calibre’s accuracy, high beat precision, and smooth automatic winding, essential for long-lasting vintage watches.
Authentic restoration preserves the historical value and collector interest of these Swiss mechanical movements.
Comprehensive technical documentation and an active watchmaker network support expert restoration and parts sourcing.
Maintaining your A. Schild AS 2162 calibre with quality spare parts ensures reliable operation and celebrates its place in Swiss watchmaking heritage.
