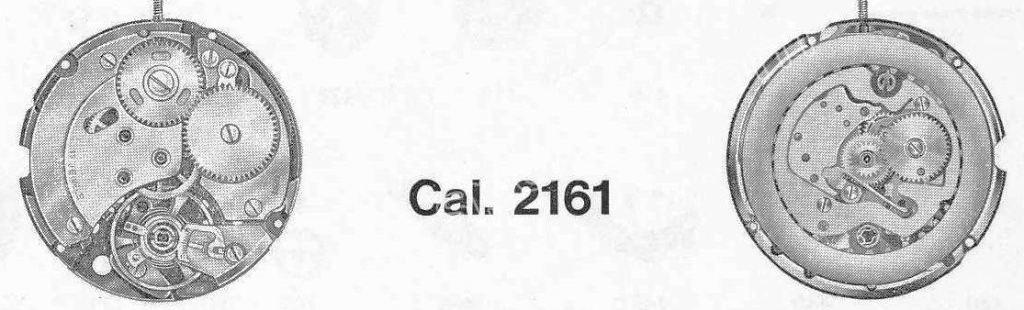

A Schild – AS Calibre 2161 Watch spare parts

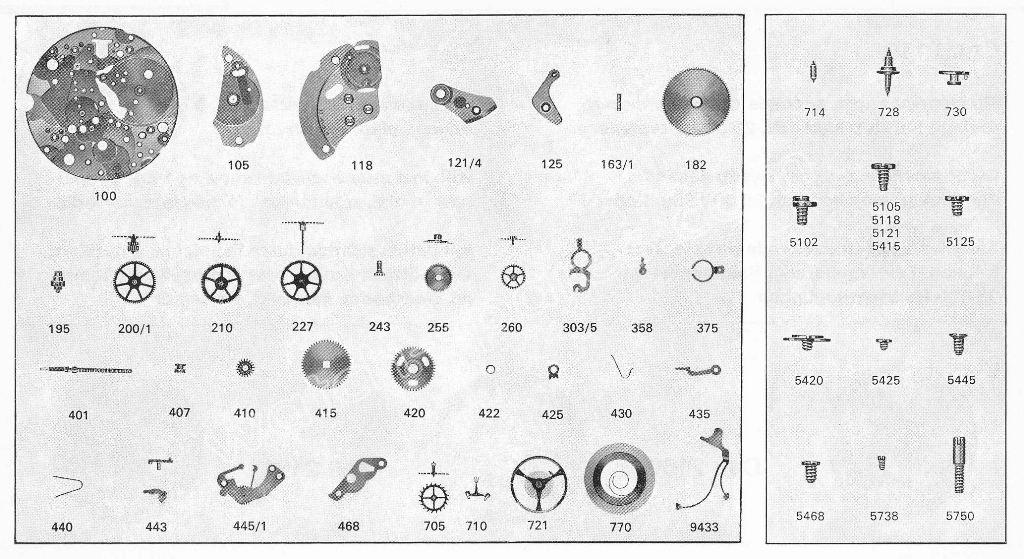

| A Schild – AS Calibre 2161 – Part No. 100 plate |
| A Schild – AS Calibre 2161 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 2161 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 2161 – Part No. 121/4 Balance cock |
| A Schild – AS Calibre 2161 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 2161 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 2161 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 2161 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 2161 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 2161 – Part No. 210 Third wheel |
| A Schild – AS Calibre 2161 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 2161 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 2161 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 2161 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 2161 – Part No. 303/5 Regulator for adjustable stud holder |
| A Schild – AS Calibre 2161 – Part No. 358 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 2161 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 2161 – Part No. 401 Winding stem |
| A Schild – AS Calibre 2161 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 2161 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 2161 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 2161 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 2161 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 2161 – Part No. 425 Click |
| A Schild – AS Calibre 2161 – Part No. 430 Click spring |
| A Schild – AS Calibre 2161 – Part No. 435 Yoke |
| A Schild – AS Calibre 2161 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 2161 – Part No. 443/1 Setting lever, mounted |
| A Schild – AS Calibre 2161 – Part No. 445/1 Setting lever spring, mounted |
| A Schild – AS Calibre 2161 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 2161 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 2161 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 2161 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 2161 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 2161 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 2161 – Part No. 770 Mainspring |
| A Schild – AS Calibre 2161 – Part No. 9433 Stop lever |

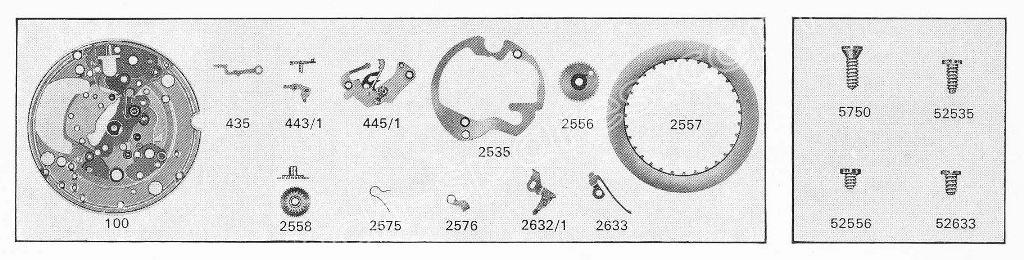

| A Schild – AS Calibre 2161 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 2161 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 2161 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 2161 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 2161 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 2161 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 2161 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 2161 – Part No. 2633 Unlocking yoke for date indicator |
A. Schild (AS) Calibre 2161 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 2161 is a well-regarded Swiss automatic mechanical movement known for its precision, robust construction, and smooth automatic winding. Widely used in vintage wristwatches, it offers a balanced combination of durability and performance, making it a favorite among watchmakers and collectors.
Key Technical Highlights
Calibre: AS 2161
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Jewels: 17 to 25 synthetic ruby jewels
Beat Rate: 28,800 vibrations per hour (4 Hz)
Lift Angle: 54°
Power Reserve: Approximately 50 hours
Functions: Hours, minutes, sweep seconds, quickset date (in some models)
Shock Protection: Typically Incabloc or equivalent
Common Spare Parts and Components
Mainspring and Barrel: NOS (New Old Stock) or original mainsprings provide consistent power delivery and torque stability.
Balance Wheel and Balance Staff: Precision components essential for timekeeping accuracy and shock absorption; must be exact replacements.
Pallet Fork and Escape Wheel: Escapement parts that wear over time; authentic or NOS parts ensure reliable function.
Gear Train Wheels: Minute, third, and fourth wheels may require replacement depending on wear; NOS or donor movement parts are typical sources.
Setting Mechanism (Stem, Crown, Levers, Springs): Essential for smooth winding and time setting; correct fit is critical.
Jewels: Synthetic ruby bearings reduce friction and wear, replacement jewels should match original layout.
Hands and Dial Components: Period-appropriate parts are critical for maintaining vintage watch aesthetics and value.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts specifically made for the AS 2161 to ensure compatibility and maintain movement integrity.
Carefully handle delicate components like the balance assembly and escapement during servicing.
Apply modern synthetic lubricants sparingly, following vintage watch servicing protocols.
Verify the calibre number on the movement before ordering parts to avoid incompatibility issues.
Donor AS 2161 movements can be valuable sources for rare or worn parts.
Why AS 2161 Spare Parts Matter
Authentic parts preserve the calibre’s accuracy, high beat precision, and smooth automatic winding, key for reliable vintage watch performance.
Genuine restoration maintains the historical significance and collector appeal of these Swiss-made mechanical movements.
Detailed technical documentation and watchmaker networks facilitate expert repairs and parts sourcing.
Proper maintenance of the A. Schild AS 2161 calibre with quality spare parts ensures continued reliable operation and respect for Swiss horological tradition.
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
