A Schild – AS Calibre 2086 Watch spare parts

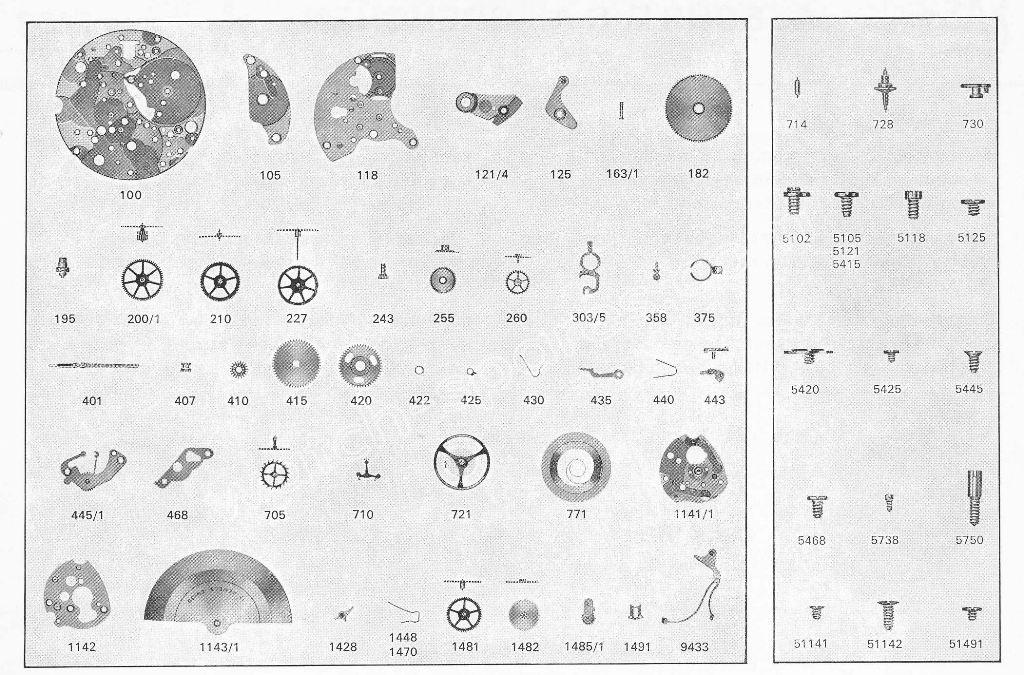

| A Schild – AS Calibre 2086 – Part No. 100 plate |
| A Schild – AS Calibre 2086 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 2086 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 2086 – Part No. 121 Balance cock |
| A Schild – AS Calibre 2086 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 2086 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 2086 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 2086 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 2086 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 2086 – Part No. 210 Third wheel |
| A Schild – AS Calibre 2086 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 2086 – Part No. 240 Cannon pinion with clam notch |
| A Schild – AS Calibre 2086 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 2086 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 2086 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 2086 – Part No. 307/1 Regulator for adjustable stud holder |
| A Schild – AS Calibre 2086 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 2086 – Part No. 401 Winding stem |
| A Schild – AS Calibre 2086 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 2086 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 2086 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 2086 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 2086 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 2086 – Part No. 425 Click |
| A Schild – AS Calibre 2086 – Part No. 430 Click spring |
| A Schild – AS Calibre 2086 – Part No. 435 Yoke |
| A Schild – AS Calibre 2086 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 2086 – Part No. 443/1 Setting lever |
| A Schild – AS Calibre 2086 – Part No. 445/1 Setting Iever spring |
| A Schild – AS Calibre 2086 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 2086 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 2086 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 2086 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 2086 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 2086 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 2086 – Part No. 730 Roller |
| A Schild – AS Calibre 2086 – Part No. 770 Mainspring |
| A Schild – AS Calibre 2086 – Part No. 775 Brake spring |
| A Schild – AS Calibre 2086 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 2086 – Part No. 1142 Upper bridge for automatic device |
| A Schild – AS Calibre 2086 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 2086 – Part No. 1155 Lower cock for reduclion gear |
| A Schild – AS Calibre 2086 – Part No. 1428 Stop click |
| A Schild – AS Calibre 2086 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 2086 – Part No. 1470 Reverser spring |
| A Schild – AS Calibre 2086 – Part No. 1481 Reducrion gear |
| A Schild – AS Calibre 2086 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 2086 – Part No. 1485/1 Reverser, mounled |
| A Schild – AS Calibre 2086 – Part No. 1491 Oscillating weight bolt |

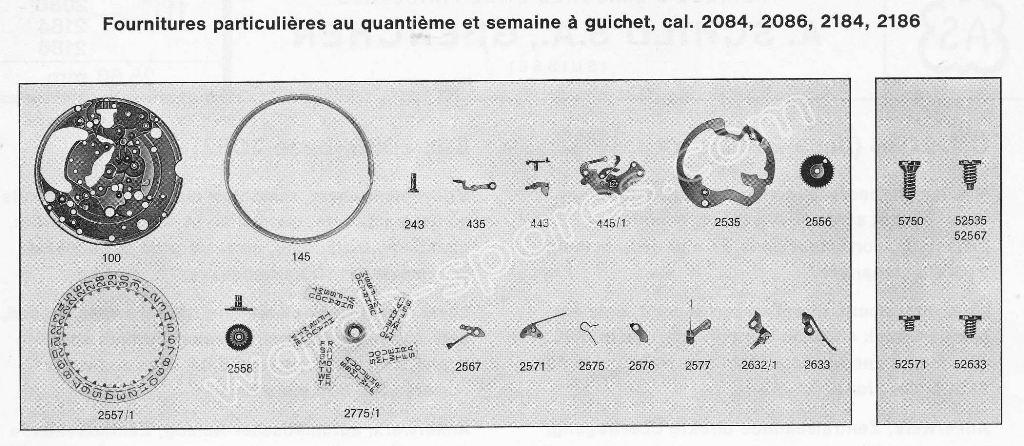

| A Schild – AS Calibre 2086 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 2086 – Part No. 2556 Date indicator Driving wheel |
| A Schild – AS Calibre 2086 – Part No. 2557/1 Date indicator |
| A Schild – AS Calibre 2086 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 2086 – Part No. 2775/1 Hebdomadal indicator, translerred |
| A Schild – AS Calibre 2086 – Part No. 2567 Day corrector |
| A Schild – AS Calibre 2086 – Part No. 2571 Day corrector spring |
| A Schild – AS Calibre 2086 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 2086 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 2086 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 2086 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 2086 – Part No. 2633 Unlocking yoke for date indicator |
A. Schild (AS) Calibre 2086 Watch Spare Parts: Technical Overview and Sourcing Guide

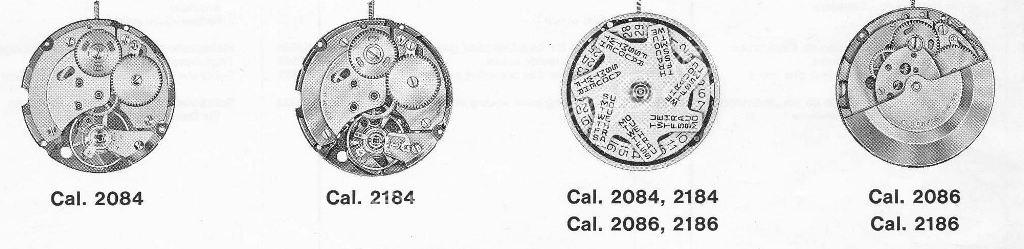

A. Schild (AS) Calibre 2086 is a renowned Swiss automatic mechanical movement known for its durability, precision, and practical calendar functions. Introduced in the late 1960s and widely used through the 1970s, it features a sweep seconds hand, quickset date, and month calendar, making it a versatile and sought-after calibre among collectors and watchmakers.
Key Technical Highlights
Calibre: AS 2086
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 5.05 mm
Jewels: 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 50 hours
Functions: Hours, minutes, sweep seconds, quickset date, month calendar
Shock Protection: Typically Incabloc or equivalent
Common Spare Parts and Components
Mainspring and Barrel: New-Old-Stock (NOS) or original mainsprings and barrels for consistent power and durability.
Balance Wheel and Balance Staff: Precision engineered parts essential for accuracy and shock resistance; exact replacements necessary.
Pallet Fork and Escape Wheel: Key escapement components prone to wear; genuine or NOS parts ensure smooth operation.
Gear Train Wheels: Minute, third, and fourth wheels often replaced; sourcing from NOS stock or donor movements is common.
Setting Mechanism (Stem, Crown, Levers, Springs): Essential parts for smooth winding, time-setting, and date/month adjustments.
Jewels: Synthetic ruby bearings reduce friction; replacements must match the original configuration.
Hands and Dial Components: Period-appropriate parts maintain vintage authenticity and collector value.
Calendar Mechanism Parts: Includes date jumpers, unlocking yokes, and month indicators crucial for functional calendar quickset.
Sourcing and Maintenance Tips
Use only original, NOS, or donor parts designed for AS 2086 to guarantee compatibility and quality.
Handle delicate balance assembly, escapement, and calendar components carefully during repairs.
Apply modern synthetic lubricants sparingly, following vintage lubrication guidelines for longevity.
Always verify the calibre number on the main plate before ordering parts to avoid incompatibility.
Donor AS 2086 movements are valuable for sourcing rare or worn components.
Why AS 2086 Spare Parts Matter
Genuine components preserve the calibre’s accuracy, robust automatic winding, and reliable calendar functions, ensuring dependable vintage watch performance.
Authentic restoration safeguards the historical significance and collector appeal essential to Swiss horology.
Technical documentation and watchmaker communities facilitate expert repairs and parts sourcing.
Maintaining your A. Schild AS 2086 calibre with quality spare parts guarantees reliable operation and honors its place in Swiss watchmaking heritage.
