A Schild – AS Calibre 2064 Watch spares Parts List

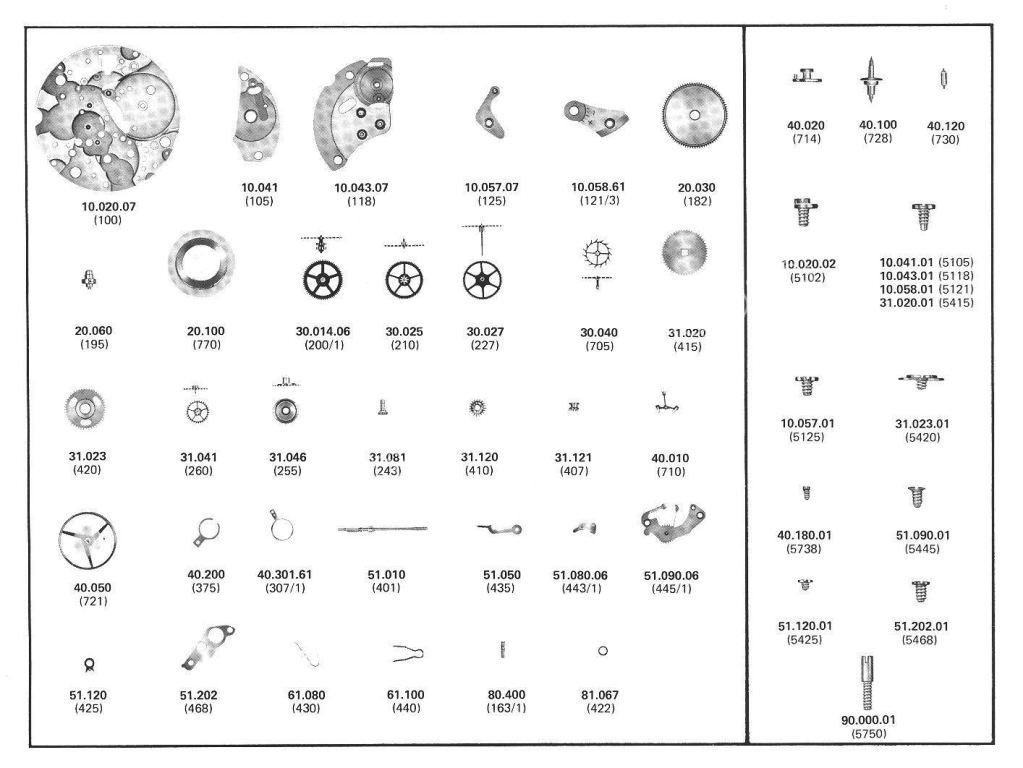

| A Schild – AS Calibre 2064 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 2064 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 2064 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 2064 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 2064 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 2064 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 2064 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 2064 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 2064 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 2064 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 2064 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 307/1 Regulator for adjustable stud holder (NOS) |
| A Schild – AS Calibre 2064 – Part No. 375 Adlustable stud holder (NOS) |
| A Schild – AS Calibre 2064 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 2064 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 2064 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 2064 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 2064 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 443/1 Setting lever (NOS) |
| A Schild – AS Calibre 2064 – Part No. 445/1 Setting Iever spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 2064 – Part No. 705 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 2064 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 2064 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 2064 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 2064 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 2064 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1155 Lower cock for reduclion gear (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 2064 – Part No. 1470 Reverser spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1481 Reducrion gear (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1485/1 Reverser, mounled (NOS) |
| A Schild – AS Calibre 2064 – Part No. 1491 Oscillating weight bolt (NOS) |

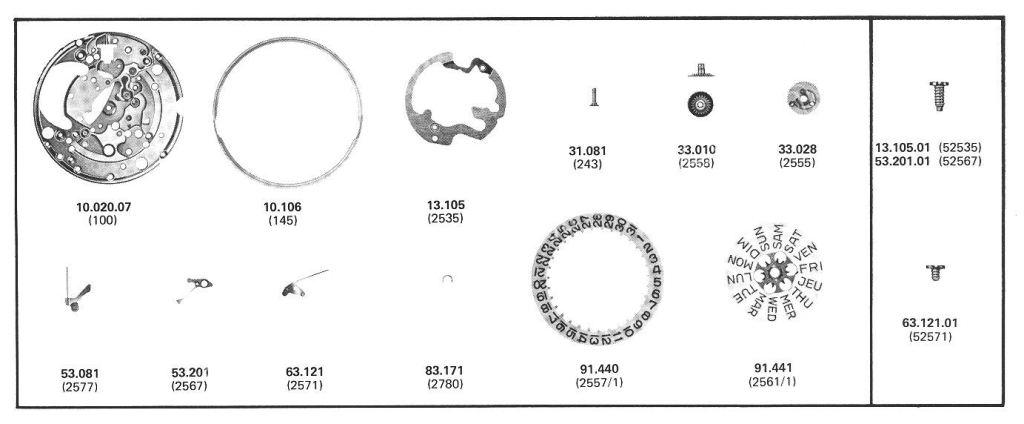

| A Schild – AS Calibre 2064 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2555 Date indicator guard (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2567 Day corrector (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2571 Day corrector spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2608 Unlocking yoke lever (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
| A Schild – AS Calibre 2064 – Part No. 2780 Day indiector spring clip (NOS) |
A. Schild (AS) Calibre 2064 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 2064 is a Swiss manual-winding mechanical movement renowned for its precision, robust construction, and practical day-date complication. Produced predominantly between the late 1960s to the 1970s, this calibre remains popular among watch collectors and professional watchmakers for restoration and maintenance of vintage timepieces.
Key Technical Highlights
Calibre: AS 2064
Movement Type: Manual winding, mechanical
Diameter: 26 mm (11.5 lignes)
Height: 4.75 mm
Jewels: 17 or 21 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 50 hours
Functions: Hours, minutes, sweep seconds, quickset day (one or two languages), quickset date
Shock Protection: Typically Incabloc or equivalent
Period Used: circa 1969 to 1978
Common Spare Parts and Components
Mainspring and Barrel: New-old-stock (NOS) or original mainsprings and barrels provide consistent power delivery and reliability.
Balance Wheel and Balance Staff: Precision parts essential for accurate timekeeping and shock resistance; authentic replacements are necessary.
Pallet Fork and Escape Wheel: Escapement components prone to wear; replacement with original or NOS components maintains performance.
Gear Train Wheels: Minute, third, and fourth wheels are commonly replaced; sourcing from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fitment of stems, crowns, and associated parts is essential for smooth winding, time setting, and calendar functions.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must match original layout to preserve movement integrity.
Hands and Dial Components: Period-correct parts preserve authenticity and increase collector value.
Day-Date Mechanism: Components including date jumpers, unlocking yokes, and day discs ensuring reliable quickset calendar operation.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts tailored for AS 2064 for guaranteed compatibility and quality.
Exercise caution with delicate balance wheels, escapements, and setting assemblies during servicing.
Follow vintage lubrication standards using modern synthetic oils sparingly for longevity.
Confirm the calibre number on the main plate when ordering parts to avoid compatibility issues.
Donor AS 2064 movements are excellent sources of rare or worn parts.
Why AS 2064 Spare Parts Matter
Authentic parts maintain the movement’s accuracy, durability, and reliable quickset day-date function, crucial for lasting vintage watch performance.
Genuine restoration preserves the historical significance and enhances the collector appeal of these classic Swiss movements.
Extensive technical data and an active watchmaker community facilitate expert repairs and efficient parts sourcing.
Maintaining the A. Schild AS 2064 calibre with high-quality spare parts helps ensure reliable operation and loyalty to Swiss watchmaking traditions.
