A Schild – AS Calibre 2063 Watch spares Parts List

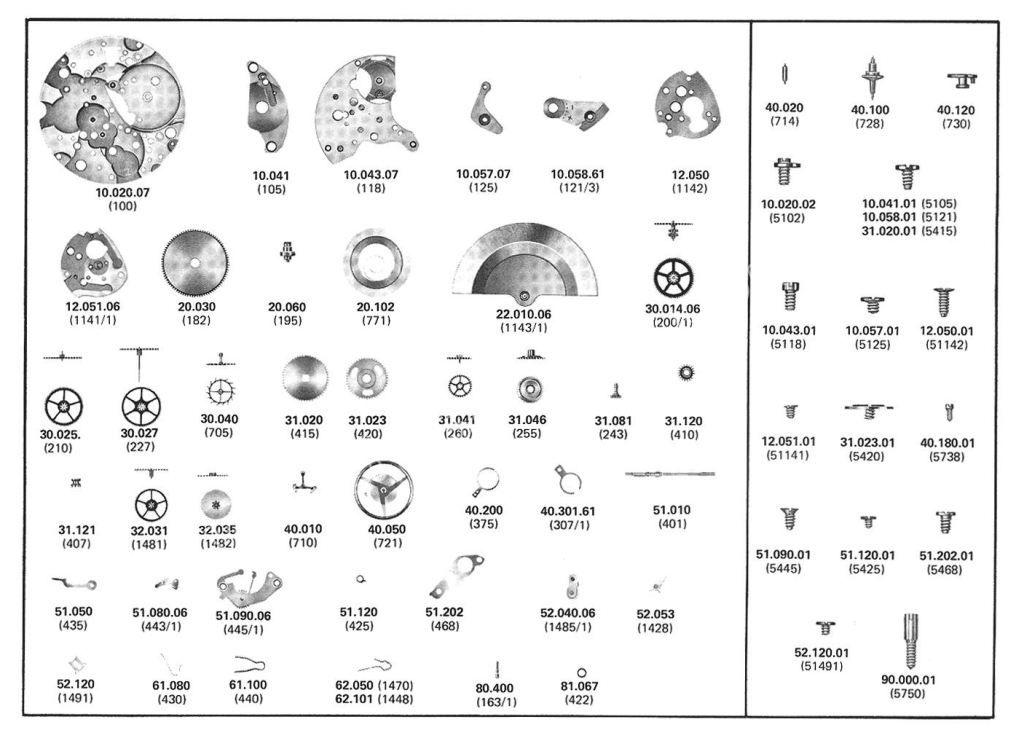

| A Schild – AS Calibre 2063 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 2063 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 2063 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 2063 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 2063 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 2063 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 2063 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 2063 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 2063 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 2063 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 2063 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 307/1 Regulator for adjustable stud holder (NOS) |
| A Schild – AS Calibre 2063 – Part No. 375 Adlustable stud holder (NOS) |
| A Schild – AS Calibre 2063 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 2063 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 2063 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 2063 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 2063 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 443/1 Setting lever (NOS) |
| A Schild – AS Calibre 2063 – Part No. 445/1 Setting Iever spring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 2063 – Part No. 705 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 2063 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 2063 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 2063 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 2063 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 2063 – Part No. 771 Mainspring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1155 Lower cock for reduclion gear (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 2063 – Part No. 1470 Reverser spring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1481 Reducrion gear (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1485/1 Reverser, mounled (NOS) |
| A Schild – AS Calibre 2063 – Part No. 1491 Oscillating weight bolt (NOS) |

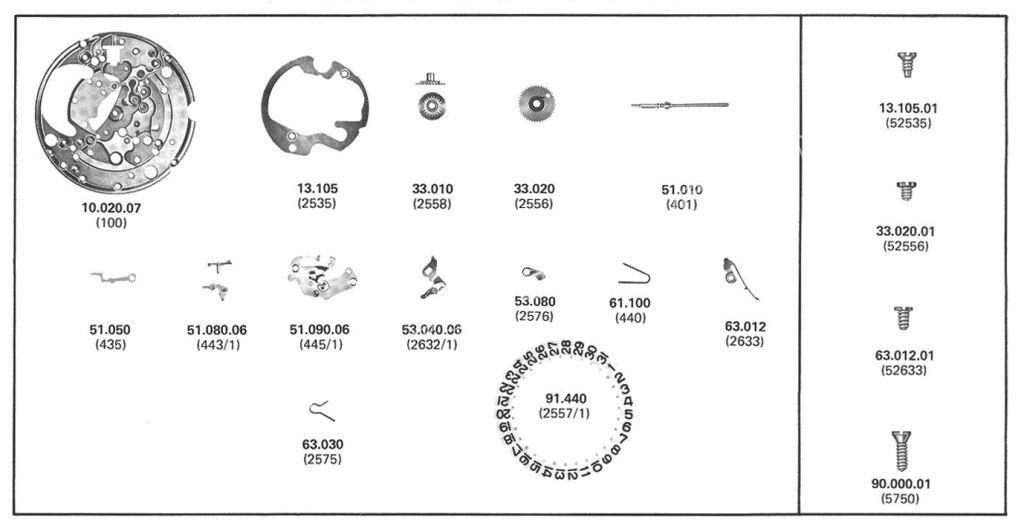

| A Schild – AS Calibre 2063 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2555 Date indicator guard (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2556 Date indicator driving wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 2063 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 2063 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 2063 is a classic Swiss automatic watch movement, revered for its robust construction, precise timekeeping, and reliable quickset date function. Produced between 1969 and 1978, this calibre features a high-quality self-winding mechanism and is popular among collectors and watchmakers for restoration of vintage timepieces.
Key Technical Highlights
Calibre: AS 2063
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 5.20 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 46 hours
Functions: Hours, minutes, sweep seconds, quickset date
Shock Protection: Typically Incabloc
Lift Angle: 52°
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings and barrels for consistent power delivery and durability.
Balance Wheel and Balance Staff: Precision-crafted components crucial for accurate timekeeping and shock absorption; exact fit required.
Pallet Fork and Escape Wheel: Essential escapement parts that wear out; replacements should be genuine or NOS.
Gear Train Wheels: Minute, third, and fourth wheels often replaced due to natural wear; sourced from NOS stock or donor movements.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate and well-fitting parts vital for smooth winding, time-setting, and date adjustment.
Jewels: Synthetic ruby bearings designed to reduce friction and wear; replacements must match the original layout.
Hands and Dial Components: Period-appropriate parts ensure vintage authenticity and collector appeal.
Date Mechanism Parts: Includes date jumper springs, unlocking yokes, and date shutters essential for reliable quickset functionality.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specifically made for AS 2063 to guarantee compatibility and maintain movement quality.
Take care during servicing with delicate components such as the balance assembly, escapement, and automatic winding mechanism.
Apply synthetic watch oils sparingly, following vintage lubrication recommendations for longevity.
Always verify the calibre number on the main plate before ordering parts to prevent errors.
Donor AS 2063 movements are invaluable sources for scarce or difficult-to-source components.
Why AS 2063 Spare Parts Matter
Genuine parts secure the calibre’s accuracy, reliable automatic winding, and smooth quickset date function, essential for long-lasting vintage watch performance.
Using authentic components preserves the historical significance and collector value inherent to these Swiss mechanical watches.
Comprehensive technical documentation and active watchmaker communities streamline repairs and parts replacement.
Maintaining your A. Schild AS 2063 calibre with quality spare parts guarantees dependable operation and upholds its reputation in Swiss horology.
