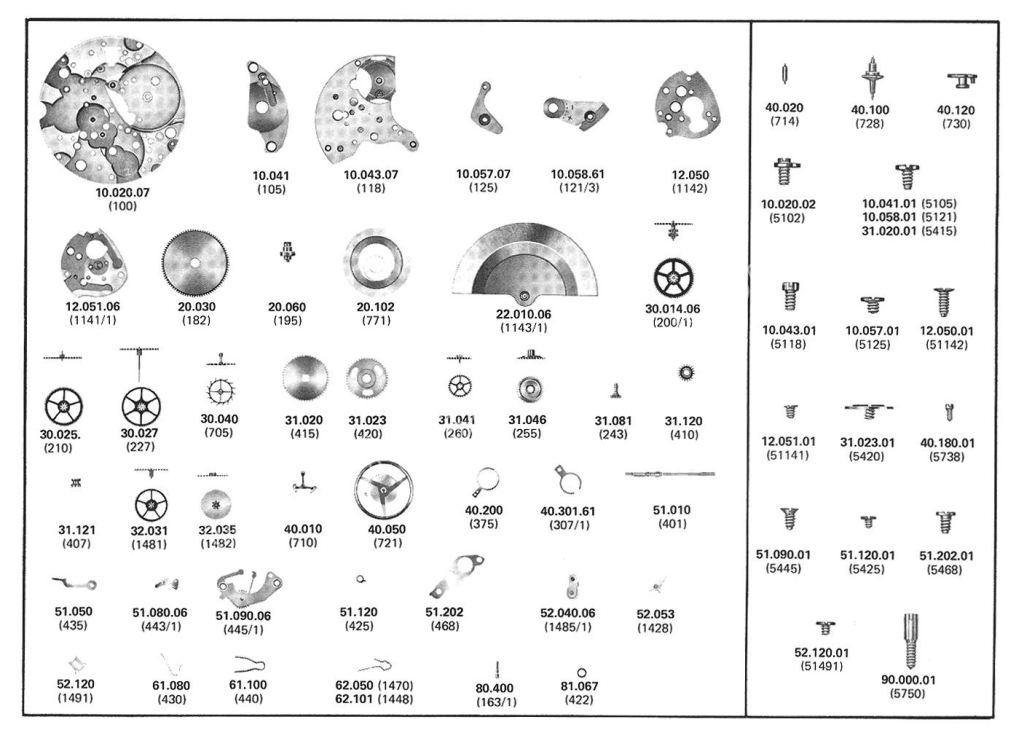

A Schild – AS Calibre 2062 Watch spares Parts List
| A Schild – AS Calibre 2062 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 2062 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 2062 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 2062 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 2062 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 2062 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 2062 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 2062 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 2062 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 2062 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 2062 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 307/1 Regulator for adjustable stud holder (NOS) |
| A Schild – AS Calibre 2062 – Part No. 375 Adlustable stud holder (NOS) |
| A Schild – AS Calibre 2062 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 2062 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 2062 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 2062 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 2062 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 443/1 Setting lever (NOS) |
| A Schild – AS Calibre 2062 – Part No. 445/1 Setting Iever spring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 2062 – Part No. 705 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 2062 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 2062 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 2062 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 2062 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 2062 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1155 Lower cock for reduclion gear (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 2062 – Part No. 1470 Reverser spring (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1481 Reducrion gear (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1485/1 Reverser, mounled (NOS) |
| A Schild – AS Calibre 2062 – Part No. 1491 Oscillating weight bolt (NOS) |
A. Schild (AS) Calibre 2062 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 2062 is a classic Swiss automatic mechanical movement renowned for its reliable day-date function, sweep seconds, and robust construction. Popular in vintage wristwatches from the late 1960s and 1970s, this calibre is favored by collectors and watchmakers for its precision and durability.
Key Technical Highlights
Calibre: AS 2062
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 5.20 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 46 hours
Functions: Hours, minutes, sweep seconds, quickset day/date (via crown manipulation)
Shock Protection: Typically Incabloc or equivalent
Lift Angle: 52°
Period Used: Circa 1969–1978
Common Spare Parts and Components
Mainspring and Barrel: Original or New-Old-Stock (NOS) mainsprings and barrels ensure consistent power transmission and long service life.
Balance Wheel and Balance Staff: Precision parts essential for accurate timekeeping and shock absorption; must be exact replacements.
Rotor and Bearings: Critical for smooth and efficient automatic winding; wear-prone parts regularly replaced from genuine or NOS stock.
Pallet Fork and Escape Wheel: Wear parts in the escapement mechanism; genuine replacements preserve movement integrity.
Gear Train Wheels: Minute, third, and fourth wheels often need replacement; sourced from donor movements or NOS inventory.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fitment is vital for winding, setting, and calendar function operation. Winding stems like Part No. 401 commonly used.
Jewels: Synthetic ruby bearings minimize friction; exact matched parts ensure durability.
Hands and Dial Components: Period-correct parts maintain vintage appearance and collector value.
Date and Day Mechanism Parts: Includes date discs, jumper springs, unlocking yokes crucial to reliable quickset calendar operation.
Sourcing and Maintenance Tips
Always opt for original, NOS, or donor parts tailored for AS 2062 to ensure proper function and compatibility.
Handle intricate parts like the balance assembly, escapement, and automatic system carefully during repair.
Use modern synthetic lubricants appropriately to enhance durability without risking over-lubrication.
Confirm the calibre number printed on the main plate before ordering parts to avoid compatibility issues.
Donor AS 2062 movements remain prime sources for rare or worn components.
Why AS 2062 Spare Parts Matter
Authentic spares maintain the movement’s accuracy, smooth automatic winding, and dependable quickset day/date—hallmarks of this classic calibre.
Genuine restoration safeguards the historical value and collector appeal of vintage Swiss automatics.
Access to detailed technical data and a supportive watchmaker community eases maintenance and parts sourcing.
Proper servicing of the A. Schild AS 2062 with quality spare parts ensures ongoing reliable operation and honors this calibre’s esteemed place in Swiss watchmaking history.
