A Schild – AS Calibre 1996 Watch spares Parts List

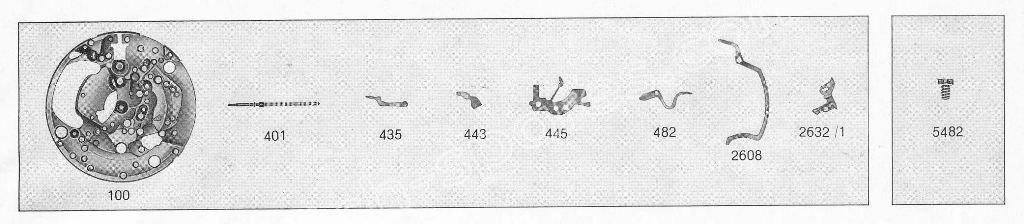

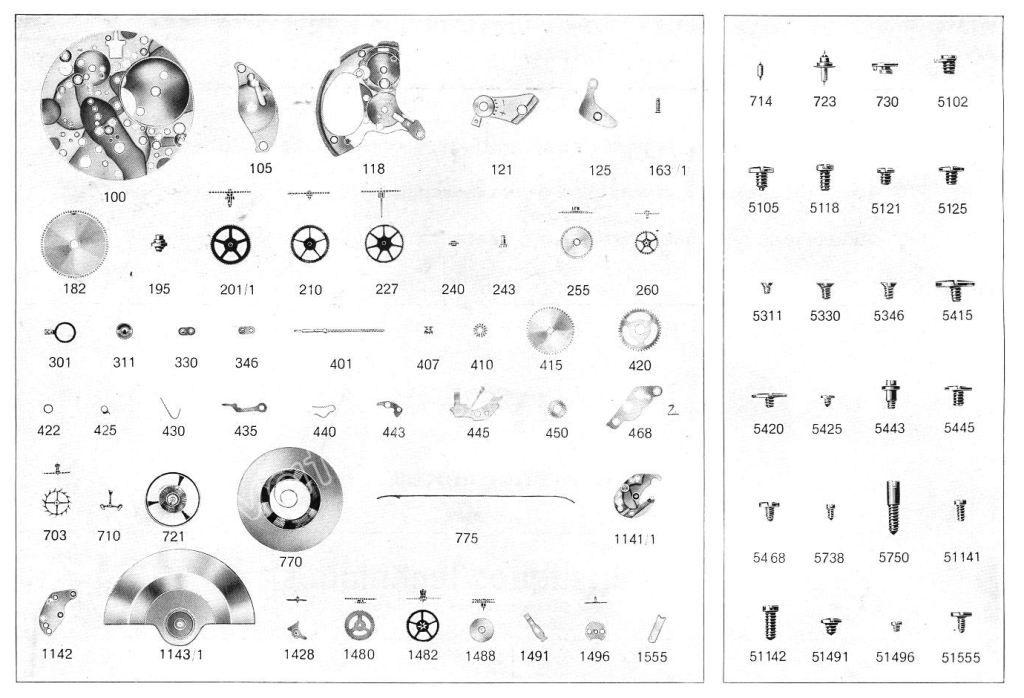

| A Schild – AS Calibre 1996 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1996 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1996 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1996 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1996 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1996 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1996 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1996 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1996 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1996 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1996 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1996 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1996 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1996 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1996 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1996 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1996 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1996 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1996 – Part No. 482 Setting lever return-spring (NOS |
| A Schild – AS Calibre 1996 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1996 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1996 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1996 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1996 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1996 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1480 Winding-up wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1488 Pawl winding wheel, complete (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1496 Oscillating weight axle (NOS) |
| A Schild – AS Calibre 1996 – Part No. 1555 Bolt for winding-up wheel (NOS) |

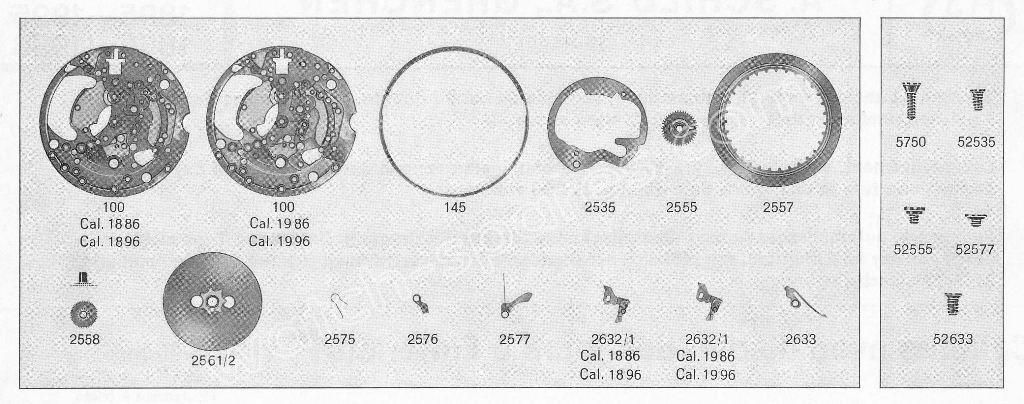

| A Schild – AS Calibre 1996 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2555 Calendar driving wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2608 Unlocking yoke lever (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 1996 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 1996 Watch Spare Parts: Technical Overview and Sourcing Guide

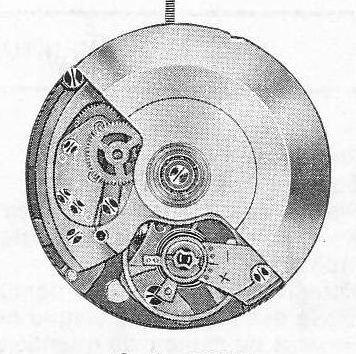

A. Schild (AS) Calibre 1996 is a well-regarded Swiss automatic mechanical movement known for its reliable day/date complication and efficient sweep seconds. Introduced in the mid-20th century, it has become a staple in the collection and restoration of vintage Swiss wristwatches, prized for its engineering and durability.
Key Technical Highlights
Calibre: AS 1996
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 5.25 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 42 hours

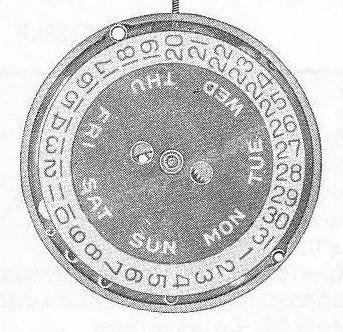

Functions: Hours, minutes, sweep seconds, quickset day/date (date change by time manipulation between 20:20 and midnight)
Shock Protection: Often equipped with Incabloc or an equivalent system
Lift Angle: Around 52°
Common Spare Parts and Components
Mainspring and Barrel: New-old-stock (NOS) or original parts ensure stable power transmission and longevity.
Balance Wheel and Balance Staff: Crucial for precision timekeeping and impact resistance; genuine or NOS replacements maintain accuracy.
Automatic Rotor and Bearings: Key for smooth automatic winding; worn components require genuine or NOS swaps.
Pallet Fork and Escape Wheel: Escapement parts that wear out need authentic replacements for consistent performance.
Gear Train Wheels: Includes minute, third, and fourth wheels; common wear points replaced with NOS or donor movement parts.
Setting Mechanism (Stem, Crown, Levers, Springs): Precision-fitted components facilitate smooth winding, time setting, and date adjustment.
Jewels: Synthetic ruby bearings reduce friction and wear; replacements must match the original layout perfectly.
Hands and Dial Components: Period-accurate parts preserve vintage watch aesthetics and collector value.
Date and Day Mechanism Parts: Date jumper, unlocking yoke, and day star parts essential for smooth calendar operation.
Sourcing and Maintenance Tips
Use only original, NOS, or donor parts specifically designed for the AS 1996 to ensure compatibility and maintain movement integrity.
Handle delicate parts such as balance assembly and escapement carefully during servicing.
Apply synthetic watch oils sparingly and in line with vintage service standards for best longevity.
Always confirm the calibre number on the main plate before ordering parts to prevent mistakes.
Donor AS 1996 movements offer a valuable source for hard-to-find or worn parts.
Why AS 1996 Spare Parts Matter
Genuine parts preserve the calibre’s accuracy, durable automatic winding, and reliable quickset date, essential for long-term vintage watch performance.
Authentic restoration sustains the historical and collector value of these classic Swiss mechanical watches.
Comprehensive documentation and active watchmaking communities help ensure expert repairs and timely parts availability.
Maintaining your A. Schild AS 1996 with authentic spare parts ensures your vintage timepiece continues to perform reliably while honoring Swiss horological tradition.
