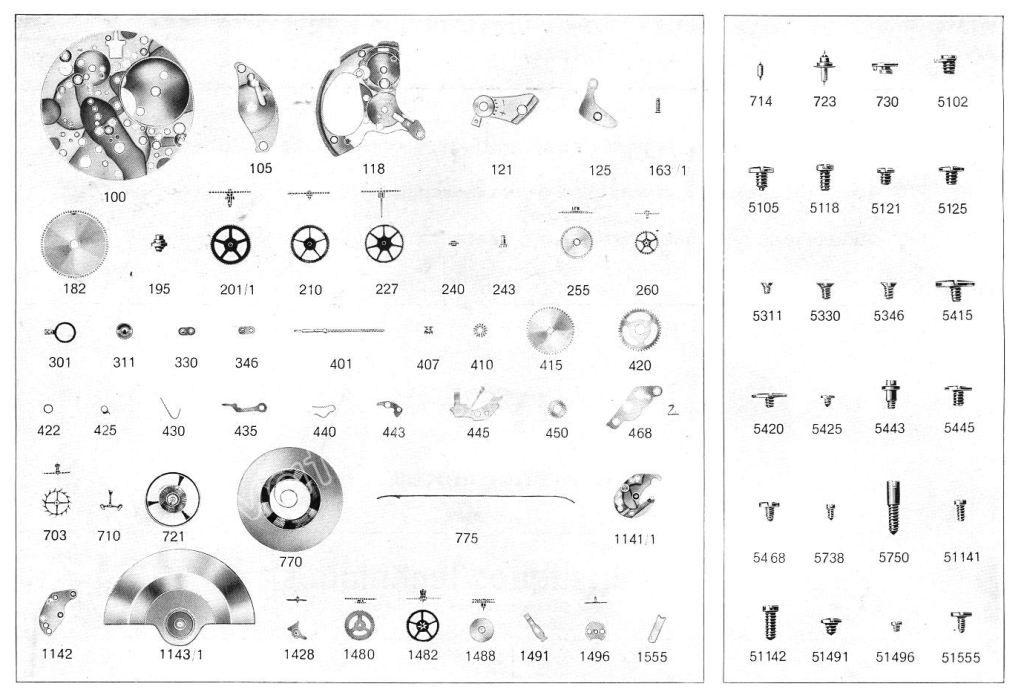

A Schild – AS Calibre 1995 Watch spares Parts List
| A Schild – AS Calibre 1995 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1995 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1995 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1995 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1995 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1995 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1995 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1995 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1995 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1995 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1995 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1995 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |

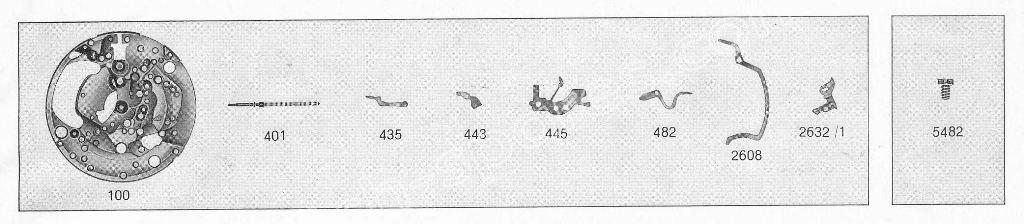

| A Schild – AS Calibre 1995 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1995 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1995 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1995 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1995 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1995 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1995 – Part No. 482 Setting lever return-spring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1995 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1995 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1995 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1995 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1995 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1480 Winding-up wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1488 Pawl winding wheel, complete (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1496 Oscillating weight axle (NOS) |
| A Schild – AS Calibre 1995 – Part No. 1555 Bolt for winding-up wheel (NOS) |

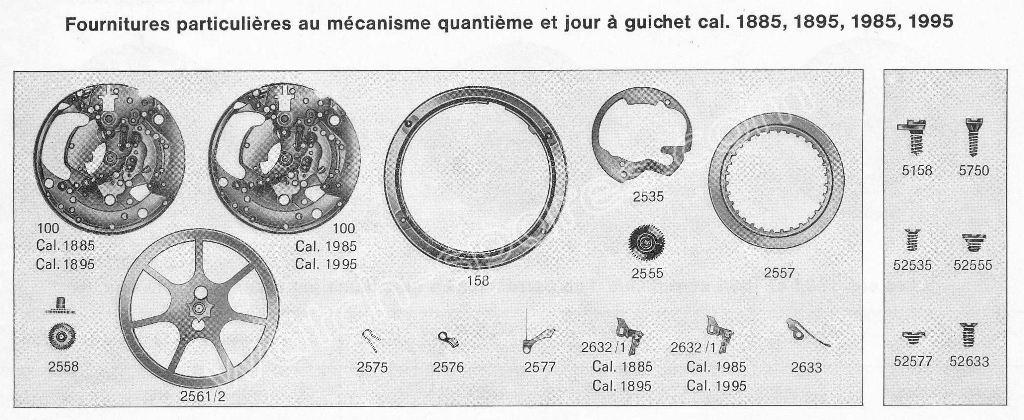

| A Schild – AS Calibre 1995 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2555 Calendar driving wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2608 Unlocking yoke lever (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 1995 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 1995 Watch Spare Parts: Technical Overview and Sourcing Guide

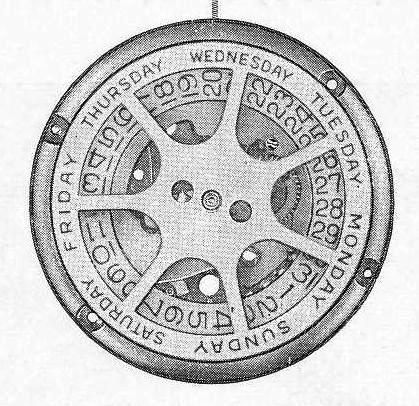

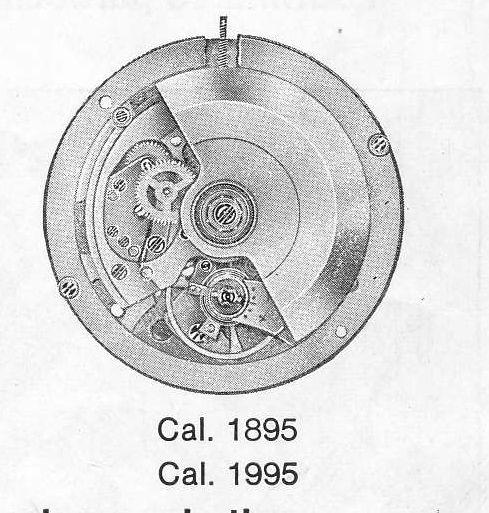

A. Schild (AS) Calibre 1995 is a reliable Swiss automatic mechanical movement well-regarded for its robust construction, day-date complication, and consistent timekeeping. Commonly found in vintage Swiss watches from the 1970s, the calibre remains popular among collectors and watchmakers dedicated to restoring classic timepieces.
Key Technical Highlights
Calibre: AS 1995
Movement Type: Automatic, mechanical
Diameter: 31.00 mm (13.75 lignes)
Height: 5.25 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 42–46 hours
Functions: Hours, minutes, sweep seconds, day (bow-aperture between 11 and 1 o’clock), date with quickset by changing time between 20:20 and midnight
Shock Protection: Incabloc or equivalent
Lift Angle: Approximately 52°
Common Spare Parts and Components
Mainspring and Barrel: Essential for stable power delivery; NOS or original parts recommended.
Balance Wheel and Balance Staff: Precision parts crucial for timekeeping accuracy and shock resistance; must fit exactly.
Rotor and Bearings: Integral to the automatic winding system; replacement of worn components ensures efficient self-winding.
Pallet Fork and Escape Wheel: Escapement parts that often require replacement; sourcing original or NOS is ideal.
Gear Train Wheels (Minute, Third, Fourth): Common wear parts, typically sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fitting components vital for winding, setting, and quickset date adjustments.
Jewels: Synthetic ruby bearings reduce friction; replacements must follow the exact original layout.
Hands and Dial Components: Authentic, period-correct parts enhance watch aesthetics and value.
Date and Day Components: Date jumper, unlocking yoke, and day wheel parts critical for smooth quickset calendar operation.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specific to AS 1995 to ensure compatibility and movement integrity.
Handle delicate parts such as the balance assembly, escapement, and calendar mechanism carefully when servicing.
Apply modern synthetic lubricants sparingly, following vintage service protocols for longevity and optimal function.
Verify the calibre number on the main plate before ordering parts to avoid mistakes.
Donor AS 1995 movements are valuable parts donors, especially for rare or discontinued components.
Why AS 1995 Spare Parts Matter
Original parts keep the calibre’s accuracy, durable automatic winding, and reliable day-date functions, essential for lasting vintage performance.
Using authentic components preserves the historical significance and collector appeal of these classic Swiss automatics.
Comprehensive technical documentation and an active watchmaker community support effective restoration and parts sourcing.
Maintaining your A. Schild AS 1995 with quality, authentic spare parts ensures your vintage timepiece runs reliably and honors its prestigious Swiss heritage.
