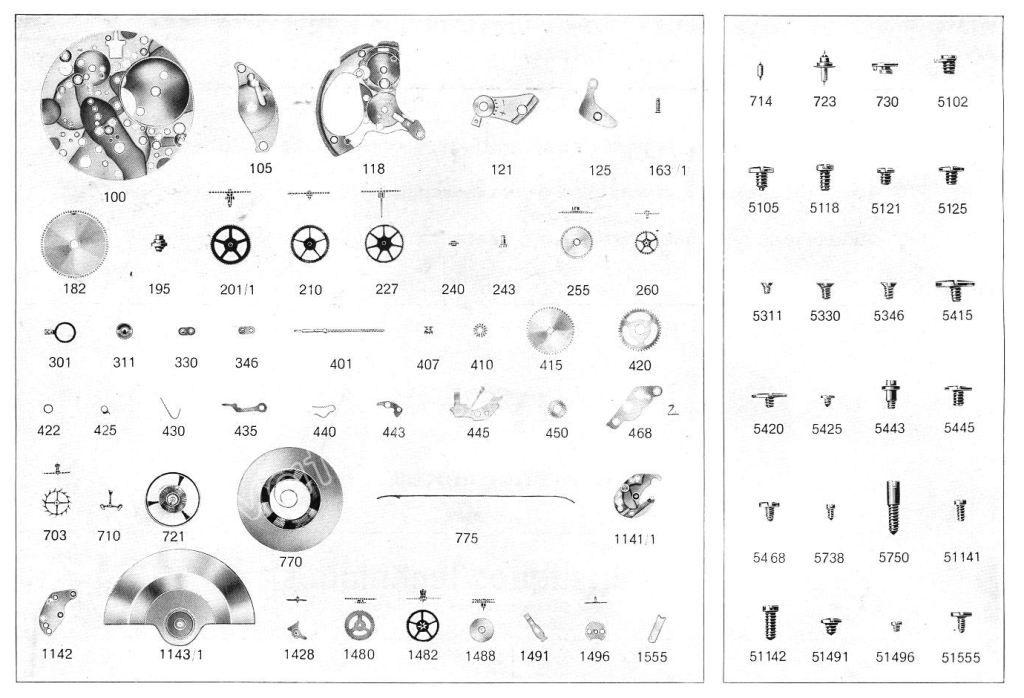

A Schild – AS Calibre 1986 Watch spares Parts List
| A Schild – AS Calibre 1986 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1986 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1986 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1986 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1986 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1986 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1986 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1986 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1986 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1986 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1986 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1986 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1986 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1986 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1986 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1986 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1986 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1986 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1986 – Part No. 482 Setting lever return-spring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1986 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1986 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1986 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1986 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1986 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1480 Winding-up wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1488 Pawl winding wheel, complete (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1496 Oscillating weight axle (NOS) |
| A Schild – AS Calibre 1986 – Part No. 1555 Bolt for winding-up wheel (NOS) |

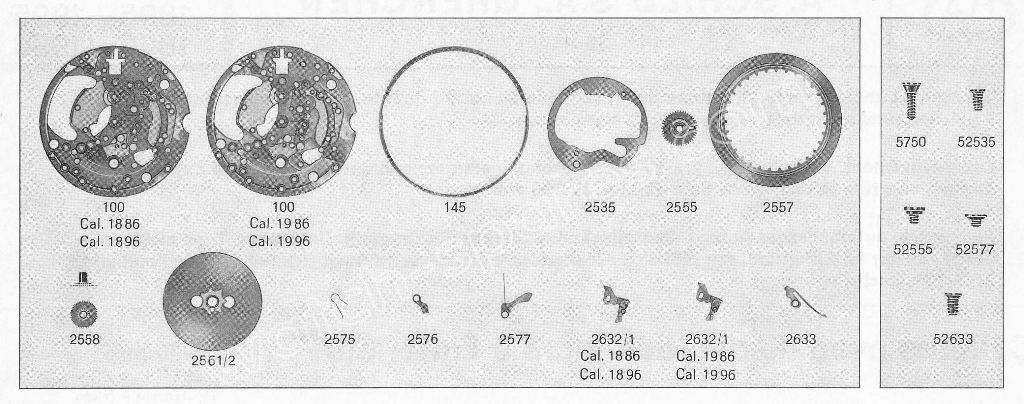

| A Schild – AS Calibre 1986 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2555 Calendar driving wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2608 Unlocking yoke lever (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 1986 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 1986 Watch Spare Parts: Technical Overview and Sourcing Guide

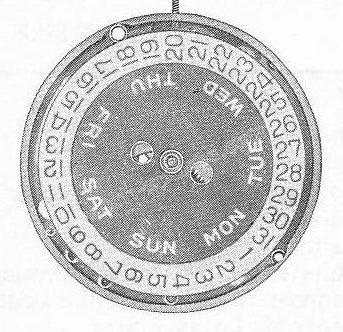

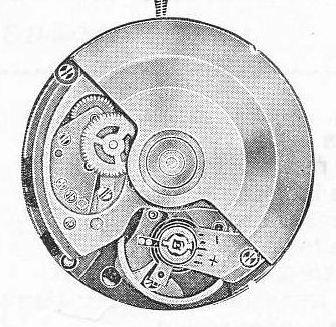

A. Schild (AS) Calibre 1986 is a Swiss automatic movement, renowned for its robust day/date complication and reliable sweep seconds. Introduced circa 1965, it is a mainstay in vintage Swiss wristwatches, admired for its solid engineering and practical period design.
Key Technical Highlights
Calibre: AS 1986
Movement Type: Automatic, mechanical
Diameter: 26 mm (11.5 lignes)
Height: 5.25 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: ~42 hours
Functions: Hours, minutes, sweep seconds, quickset day/date (date set by changing time between ~20:20 and 24h)
Shock Protection: Typically Incabloc or equivalent
Lift Angle: 52°
Common Spare Parts and Components
Mainspring and Barrel: Original or NOS mainspring and barrel enable consistent power delivery and preserve torque stability.
Balance Wheel and Balance Staff: Precision parts, vital for timing accuracy and shock resistance; must match spec exactly.
Automatic Rotor & Bearings: Key for sustained winding action; genuine or NOS replacements ensure smooth operation.
Pallet Fork and Escape Wheel: Escapement components that wear over time; replacing with authentic/NOS parts maintains performance.
Gear Train Wheels: Minute, third, fourth sweep wheels; replacement parts sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fitting for winding, time, and day/date adjustments. Winding stem (part 401) and winding pinion (part 410) are standard spares.
Jewels: Synthetic ruby bearings reduce friction; replacements must fit original layout for movement integrity.
Hands and Dial Components: Period-correct hands, dials, and discs essential for maintaining vintage character and collector value.
Date & Day Components: Includes date indicator guard, calendar driving wheel, date jumper spring, and unlocking yoke for day/date reliability.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts specific to AS 1986 for compatibility and quality.
Handle balance assemblies, escapement, and automatic mechanisms with care when servicing.
Use modern synthetic watch oils sparingly per vintage lubrication guidelines to optimize longevity.
Always confirm the calibre number stamped on the main plate before ordering parts to prevent mismatches.
Donor AS 1986 movements are valuable sources for rare, discontinued, or worn components.
Why AS 1986 Spare Parts Matter
Proper parts ensure accurate timekeeping, reliable automatic winding, and functional day/date complications—key traits for restored, collectible watches.
Using authentic components preserves the historical and collector value fundamental to vintage Swiss horology.
Strong technical documentation and an active restoration community support efficient repairs and parts sourcing.
Maintaining your A. Schild AS 1986 watch with genuine spare parts ensures its longevity, reliability, and enduring value in the Swiss watchmaking legacy.
