A Schild – AS Calibre 1985 Watch spares Parts List

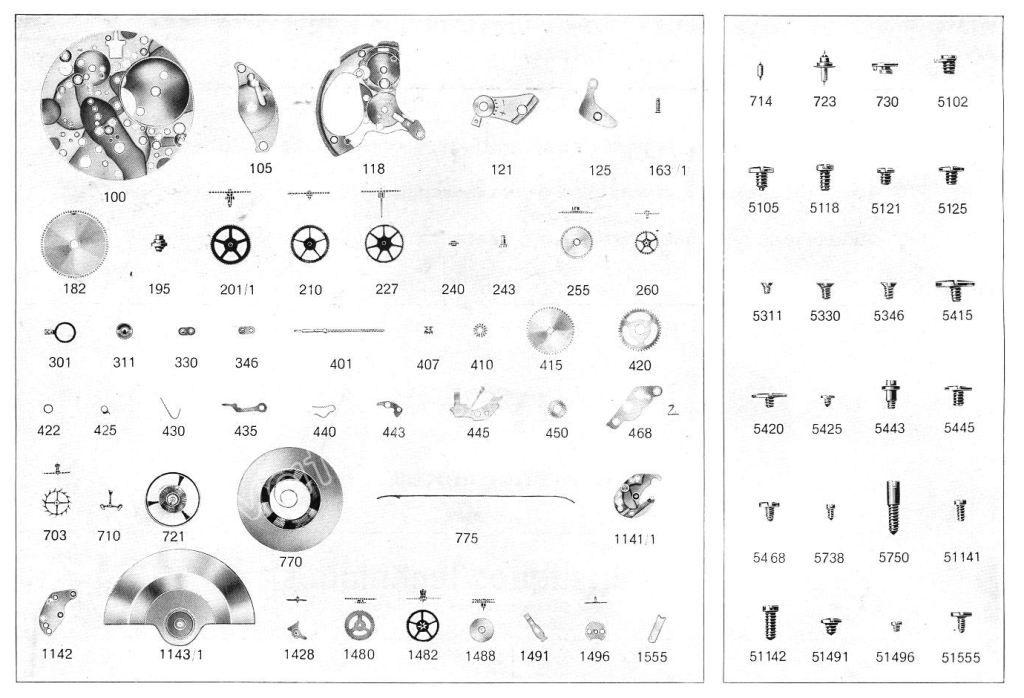

| A Schild – AS Calibre 1985 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1985 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1985 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1985 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1985 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1985 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1985 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1985 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1985 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1985 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1985 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1985 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1985 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1985 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1985 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1985 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1985 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1985 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1985 – Part No. 482 Setting lever return-spring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1985 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1985 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1985 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1985 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1985 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1480 Winding-up wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1488 Pawl winding wheel, complete (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1496 Oscillating weight axle (NOS) |
| A Schild – AS Calibre 1985 – Part No. 1555 Bolt for winding-up wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2555 Calendar driving wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2608 Unlocking yoke lever (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 1985 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 1985 Watch Spare Parts: Technical Overview and Sourcing Guide

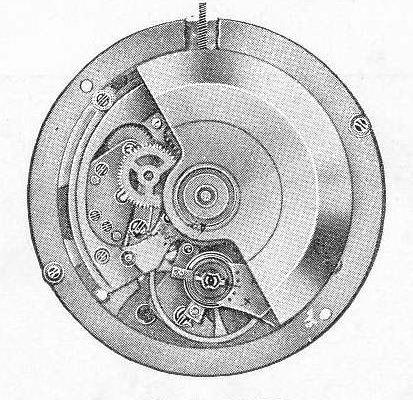

A. Schild (AS) Calibre 1985 is a high-grade Swiss automatic mechanical movement recognized for its robust performance, reliability, and practical quickset date function. Widely used in mid- to late-20th-century wristwatches, the AS 1985 is appreciated by collectors and watchmakers for its practical engineering and lasting durability.
Key Technical Highlights
Calibre: AS 1985
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 5.20 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Around 46 hours
Functions: Hours, minutes, sweep seconds, quickset date (via repeated crown push)
Shock Protection: Typically Incabloc or equivalent
Common Spare Parts and Components
Mainspring and Barrel: NOS or original mainsprings and barrels are critical for steady torque delivery and consistent timekeeping.
Balance Wheel and Balance Staff: Must be an exact fit to ensure optimal accuracy and shock resistance; genuine or NOS parts recommended.
Automatic Rotor and Bearings: Fundamental for efficient self-winding; worn rotors or bearings should be swapped with original or NOS units.
Pallet Fork and Escape Wheel: Escapement parts prone to wear; genuine/NOS replacements keep the escapement smooth and reliable.
Gear Train Wheels: Minute, third, and fourth wheels are commonly replaced due to wear, best sourced from donor movements or NOS stocks.
Setting Mechanism (Stem, Crown, Levers, Springs): Precise-fitting is crucial for winding, setting, and quickset date—winding stem part No. 401 is often compatible.
Jewels: Synthetic ruby bearings correctly positioned for friction reduction and longevity; only authentic replacements maintain movement integrity.
Hands and Dial Components: Period-appropriate hands and dials secure vintage appeal and collector value.

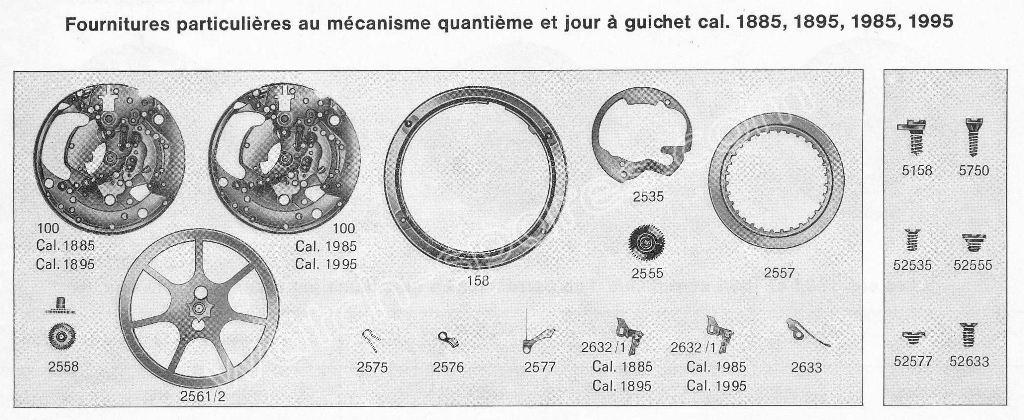

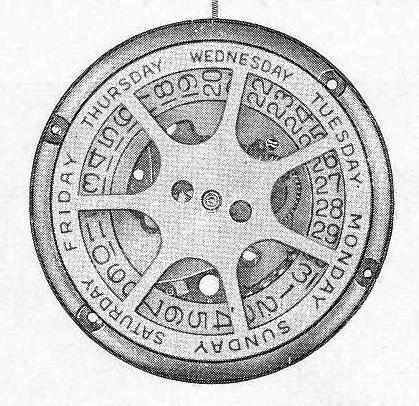

Date Mechanism: Includes date disc, spring, jumper, and unlocking yoke; these are must-haves for reliable quickset date function.
Sourcing and Maintenance Tips
Always secure original, NOS, or donor parts specifically made for AS 1985 to guarantee fit, reliability, and accuracy.
Handle balance assemblies, escapement, and calendar modules with care during service due to their precision.
Minimal, careful lubrication using modern synthetic watch oils—following vintage service guides—prevents premature wear.
Confirm the calibre number on the main plate before ordering to avoid mismatches.
Donor AS 1985 movements provide valuable sources for rare or high-wear items.
Why AS 1985 Spare Parts Matter
Using original components preserves the movement’s accuracy, robust self-winding, and reliable quickset date, vital for lasting vintage performance.
Authentic parts maintain the historical and collector value of these treasured Swiss automatics.
Detailed service documentation and an active restoration community ensure confident repairs and precise sourcing.
