A Schild – AS Calibre 1983 Watch spare parts

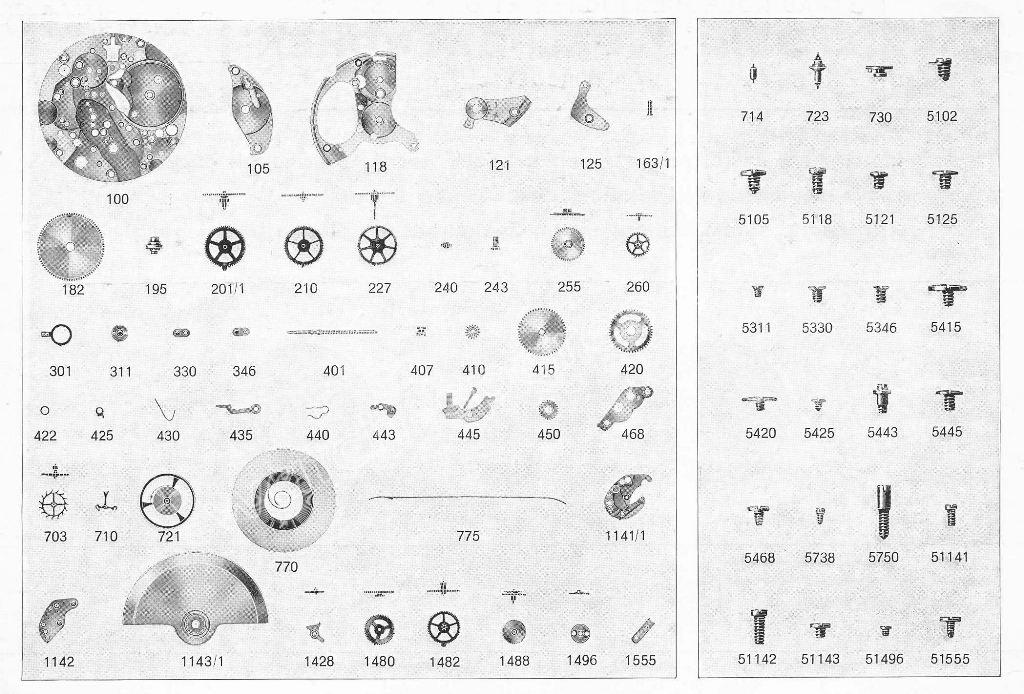

| A Schild – AS Calibre 1983 – Part No. 100 plate |
| A Schild – AS Calibre 1983 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1983 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 1983 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1983 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1983 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 1983 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1983 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1983 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 1983 – Part No. 210 Third wheel |
| A Schild – AS Calibre 1983 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 1983 – Part No. 240 Cannon pinion with clam notch |
| A Schild – AS Calibre 1983 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 1983 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1983 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1983 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1983 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1983 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1983 – Part No. 346 Lower cap jewel with end-piece,for Esc |
| A Schild – AS Calibre 1983 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1983 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1983 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1983 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1983 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1983 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1983 – Part No. 425 Click |
| A Schild – AS Calibre 1983 – Part No. 430 Click spring |
| A Schild – AS Calibre 1983 – Part No. 435 Yoke |
| A Schild – AS Calibre 1983 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1983 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1983 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1983 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1983 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 1983 – Part No. 482 Setting lever return-spring (NOS |
| A Schild – AS Calibre 1983 – Part No. 703 Escape wheel and pinion |
| A Schild – AS Calibre 1983 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1983 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 1983 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1983 – Part No. 730 Roller |
| A Schild – AS Calibre 1983 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1983 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 1983 – Part No. 1142 Upper bridge for automatic device |
| A Schild – AS Calibre 1983 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 1983 – Part No. 1428 Stop click |
| A Schild – AS Calibre 1983 – Part No. 1480 Winding-up wheel |
| A Schild – AS Calibre 1983 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 1983 – Part No. 1488 Pawl winding wheel, complete |
| A Schild – AS Calibre 1983 – Part No. 1496 Oscillating weight axle |
| A Schild – AS Calibre 1983 – Part No. 1555 Bolt for winding-up wheel |
| A Schild – AS Calibre 1983 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 1983 – Part No. 2543lntermediate date wheel |
| A Schild – AS Calibre 1983 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 1983 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 1983 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 1983 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 1983 – Part No. 2608 Unlocking yoke lever |
| A Schild – AS Calibre 1983 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 1983 – Part No. 2633 Unlocking yoke for date indicator |
A. Schild (AS) Calibre 1983 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1983 is a Swiss automatic movement highly valued for its robust construction, reliable automatic winding, and practical quickset date function. Popular in a variety of mid- to late-20th-century Swiss wristwatches, this movement combines precision engineering with day-to-day practicality, making it a favorite for restoration projects and collector-grade repairs.
Key Technical Highlights
Calibre: AS 1983
Movement Type: Automatic, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 4.60 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approx. 46 hours
Functions: Hours, minutes, sweep seconds, date (quickset by repeated crown pushing)
Shock Protection: Typically Incabloc or equivalent
Common Spare Parts and Components
Mainspring and Barrel: Original or new-old-stock (NOS) mainsprings and barrels recommended for stable torque and consistent power delivery.
Balance Wheel and Balance Staff: Precision-critical; authentic or NOS replacements required for accurate timekeeping and shock absorption.
Automatic Rotor and Bearings: Vital for effortless self-winding; these components often wear out and must be replaced with genuine or NOS parts.
Pallet Fork and Escape Wheel: Escapement components prone to wear—replacements should always be genuine or NOS.
Gear Train Wheels: Minute, third, and fourth wheels, sometimes replaced owing to wear and available from donor movements or NOS stocks.
Setting Mechanism (Stem, Crown, Levers, Springs): Correct fit is essential for flawless winding, time setting, and date operation. Stems such as Part No. 401 are generally compatible.
Jewels: Synthetic ruby bearings prevent friction and wear—each bearing must match the original specification.
Hands and Dial Components: Sourcing period-correct parts preserved the watch’s original look and collector value.

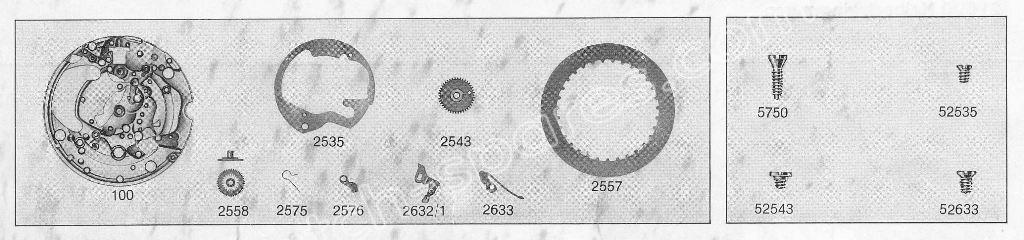

Date Mechanism Components: Date disc, jumper, unlocking yoke, and other related gears critical for the quickset feature.
Sourcing and Maintenance Tips
Use only original, NOS, or donor parts specifically designed for AS 1983 movements for integrity and proper fit.
Handle delicate assemblies such as the escapement, balance, and automatic module with utmost care during service.
Apply modern synthetic lubricants minimally and adhere to period-correct service techniques for the best long-term results.
Double-check the calibre number on the main plate before ordering to avoid mismatched parts.
Donor AS 1983 movements are valuable for securing rare or discontinued parts.
Why AS 1983 Spare Parts Matter
Original components secure the movement’s accuracy, reliability, and smooth automatic operation appreciated by collectors and everyday wearers alike.
Restoration with genuine parts upholds the historical and collector value of these classic automatics.
Ready availability of technical documentation and a global watchmaker community ensures confidence in long-term maintenance.
