A Schild – AS Calibre 1941 Watch spare parts

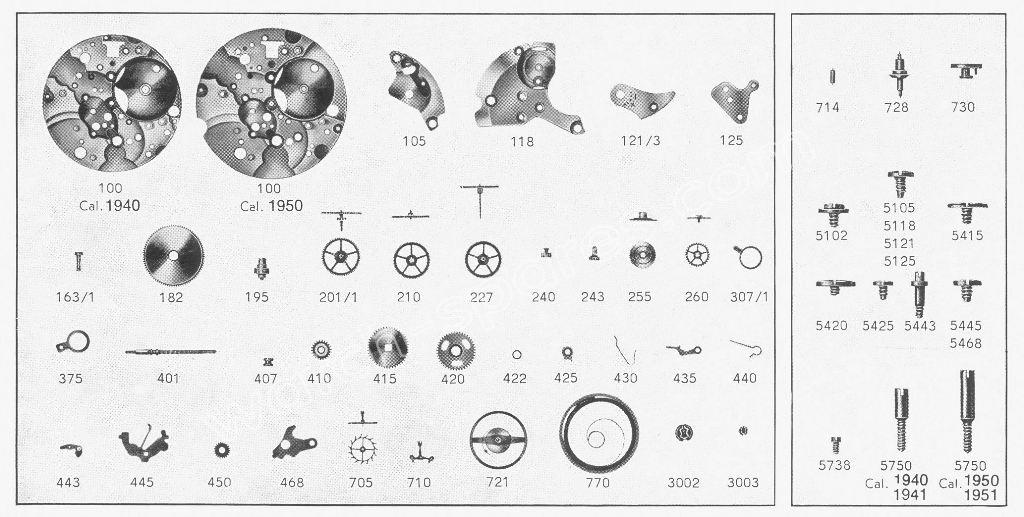

| A Schild – AS Calibre 1941 – Part No. 100 plate |
| A Schild – AS Calibre 1941 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1941 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 1941 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1941 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1941 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1941 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1941 – Part No. 201/1 Large driving wheel |
| A Schild – AS Calibre 1941 – Part No. 210 Third wheel |
| A Schild – AS Calibre 1941 – Part No. 227 Sweep Second Wheel |
| A Schild – AS Calibre 1941 – Part No. 240 Cannon pinion with clam notch |
| A Schild – AS Calibre 1941 – Part No. 243Cannon pinion without clam notch |
| A Schild – AS Calibre 1941 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1941 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1941 – Part No. 307/1 Regulator for flat hairspring |
| A Schild – AS Calibre 1941 – Part No. 375 Adjustable Stud Holder for flat hairspring |
| A Schild – AS Calibre 1941 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1941 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1941 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1941 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1941 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1941 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1941 – Part No. 425 Click |
| A Schild – AS Calibre 1941 – Part No. 430 Click spring |
| A Schild – AS Calibre 1941 – Part No. 435 Yoke |
| A Schild – AS Calibre 1941 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1941 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1941 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1941 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1941 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1941 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1941 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1941 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1941 – Part No. 3002 Shock-Protecting device,Upper |
| A Schild – AS Calibre 1941 – Part No. 3003 Shock-Protecting device,lower |

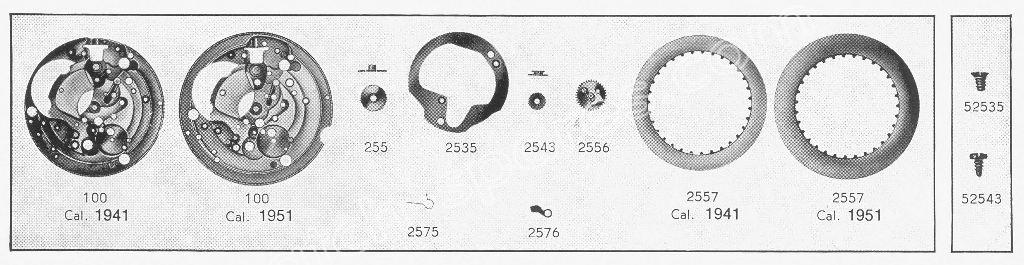

| A Schild – AS Calibre 1941 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 1941 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 1941 – Part No. 2556 Date indicator driving wheel |
| A Schild – AS Calibre 1941 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 1941 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 1941 – Part No. 2576 Date Jumper |
A. Schild (AS) Calibre 1941 Watch Spare Parts: Technical Overview and Sourcing Guide

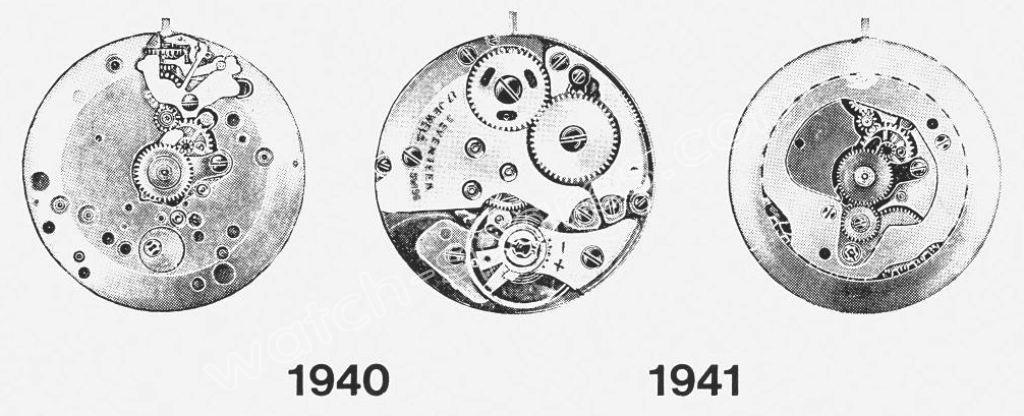

A. Schild (AS) Calibre 1941 is a vintage Swiss manual winding mechanical movement valued for its precision, reliability, and balanced features. Produced primarily in the mid-20th century, it features sweep seconds and a date complication, making it a practical and elegant choice for classic wristwatches. The movement enjoys a solid reputation among collectors and watchmakers for restoration.
Key Technical Highlights
Calibre: AS 1941
Movement Type: Manual winding, mechanical with sweep seconds and date
Diameter: 23.30 mm (10.5 lignes)
Height: 4.50 mm
Jewels: 17 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: Approximately 46 hours
Shock Protection: Typically fitted with KIF or similar anti-shock system
Functions: Hours, minutes, sweep seconds, and date window
Lift Angle: Around 52°
Common Spare Parts and Components
Mainspring and Barrel: Use original or new-old-stock (NOS) mainsprings to ensure consistent power delivery and optimal torque.
Balance Wheel and Balance Staff: Precision components critical for accurate timekeeping and shock resistance; exact fit is essential for reliability.
Pallet Fork and Escape Wheel: Wear-prone escapement parts; authentic or NOS replacements help maintain smooth, precise operation.
Gear Train Wheels: Includes minute, third, and fourth wheels; replacements typically sourced from donor movements or NOS inventory.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fitting parts are crucial for smooth winding, time setting, and date adjustment.
Jewels: Synthetic ruby bearings positioned to minimize friction; replacement jewels must conform exactly to original layout to maintain movement integrity.
Hands and Dial Components: Period-correct parts preserve vintage authenticity and enhance collector appeal.
Date Mechanism Components: Includes date jumper, unlocking yoke, and date indicator guard to ensure reliable date function.
Sourcing and Maintenance Tips
Always choose original, NOS, or donor parts specifically designated for AS 1941 to guarantee full compatibility and preserve movement quality.
Handle delicate components such as the balance assembly, escapement parts, and date mechanism carefully during servicing to avoid damage.
Apply modern synthetic watch lubricants sparingly, adhering to vintage lubrication standards for optimal longevity and performance.
Verify the calibre number stamped on the main plate before ordering parts to prevent mismatches.
Donor AS 1941 movements serve as invaluable sources for rare or worn parts.
Why AS 1941 Spare Parts Matter
Authentic spare parts ensure the calibre’s accuracy, reliable manual winding performance, and smooth date function, which are essential for dependable vintage watch operation.
Proper restoration with genuine components preserves the historical significance and collector value of these classic Swiss manual-wind wristwatches.
Easy access to detailed technical documentation and an active watchmaker community facilitates expert repairs and efficient parts sourcing.
Maintaining the A. Schild AS 1941 calibre with high-quality, authentic spare parts is essential to ensuring these vintage manual-wind watches continue running reliably while honoring their place in Swiss horological heritage.
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
