A Schild – AS Calibre 1986 Watch spares Parts List

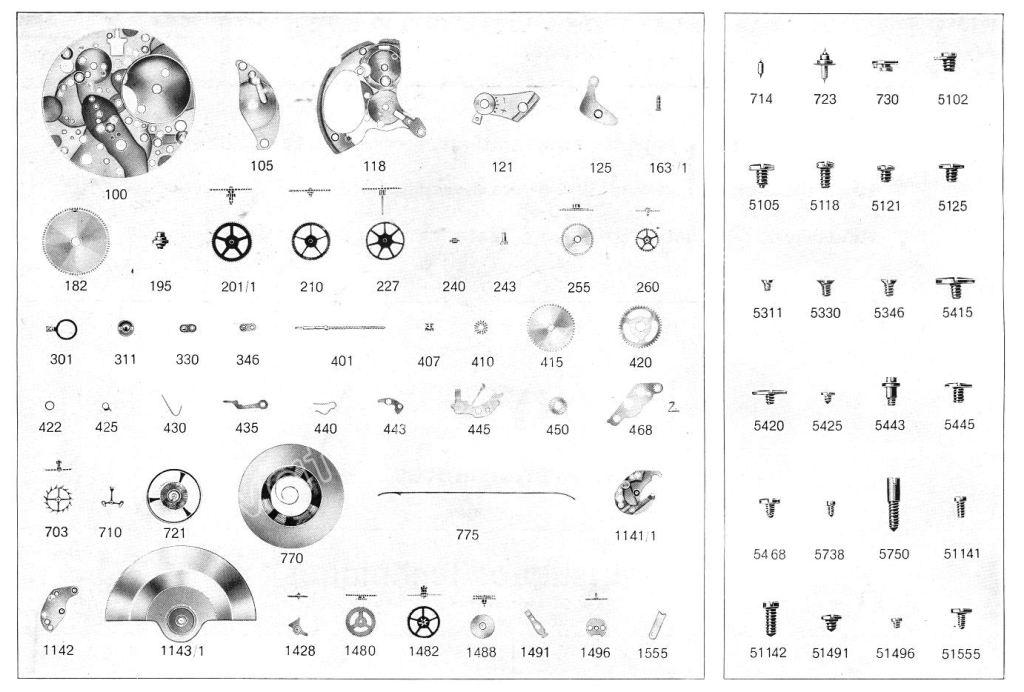

| A Schild – AS Calibre 1886 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1886 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1886 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1886 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1886 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1886 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1886 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1886 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1886 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1886 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1886 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1886 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1886 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1886 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1886 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1886 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1886 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1886 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1886 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1886 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1886 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1886 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1886 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1886 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1480 Winding-up wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1488 Pawl winding wheel, complete (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1496 Oscillating weight axle (NOS) |
| A Schild – AS Calibre 1886 – Part No. 1555 Bolt for winding-up wheel (NOS) |

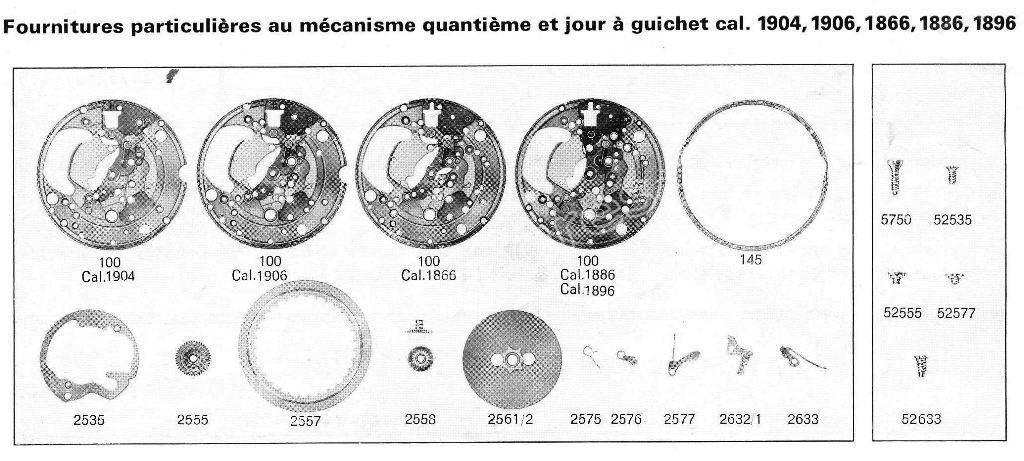

| A Schild – AS Calibre 1886 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2555 Calendar driving wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 1886 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 1886 Watch Spare Parts: Technical Overview and Sourcing Guide

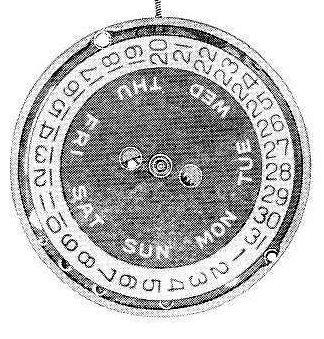

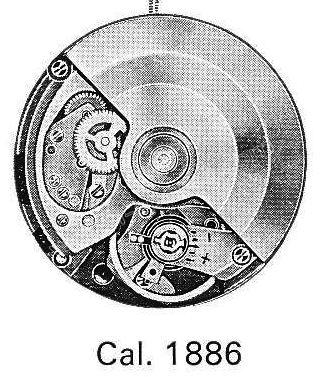

A. Schild (AS) Calibre 1886 is a vintage Swiss automatic mechanical movement known for its robust construction, reliable performance, and practical complications. Produced around the mid-1960s, this calibre features automatic winding, sweep seconds, and day-date functions, making it a versatile choice for mid-20th-century wristwatches.
Key Technical Highlights
Calibre: AS 1886
Movement Type: Automatic, mechanical
Diameter: Approximately 26 mm (11.5 lignes)
Height: About 5.25 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (vph)
Power Reserve: Around 42 hours
Functions: Hours, minutes, sweep seconds, day and date (date set by changing time between 20:20 and midnight)
Shock Protection: Vintage anti-shock system (commonly Incabloc)
Rotor: Ball-bearing type for smooth automatic winding
Notable Features: Large balance wheel and indirect minute hand drive for smooth motion
Common Spare Parts and Components
Mainspring and Barrel: Ensure consistent power delivery; original or new-old-stock (NOS) mainsprings maintain torque and durability.
Balance Wheel and Balance Staff: Precision parts critical for accurate timekeeping and shock resistance; must fit exactly.
Rotor Assembly and Bearings: Central to efficient automatic winding; worn components need genuine or high-quality NOS replacements.
Pallet Fork and Escape Wheel: Wear-prone escapement parts; sourcing original or NOS components preserves smooth operation.
Gear Train Wheels (Minute, Third, Fourth): Frequently replaced due to wear; sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit precisely for smooth winding, time, and day/date adjustments.
Jewels: Synthetic ruby bearings arranged to minimize friction; replacements must match original layout.
Hands and Dial Components: Period-accurate parts uphold vintage authenticity and collector appeal.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specifically marked for AS 1886 to ensure compatibility and preserve movement integrity.
Handle delicate components such as balance assemblies, escapement, and rotor carefully during servicing.
Apply modern synthetic watch oils sparingly, adhering to vintage lubrication standards for longevity and optimal performance.
Always verify the calibre number stamped on the main plate before ordering parts to avoid mismatches.
Donor AS 1886 movements are valuable sources for rare or worn components.
Why AS 1886 Spare Parts Matter
Genuine parts preserve the calibre’s accuracy, reliability, and efficient automatic winding, vital for dependable daily wear.
Proper restoration with authentic components maintains the historical significance and collectible value of these classic Swiss automatics.
Extensive technical documentation and an active watchmaker community support efficient parts sourcing and expert repairs.
Maintaining the A. Schild AS 1886 calibre with quality spare parts is essential to ensure these vintage automatic wristwatches continue to perform reliably while honoring their place in Swiss horological heritage.
