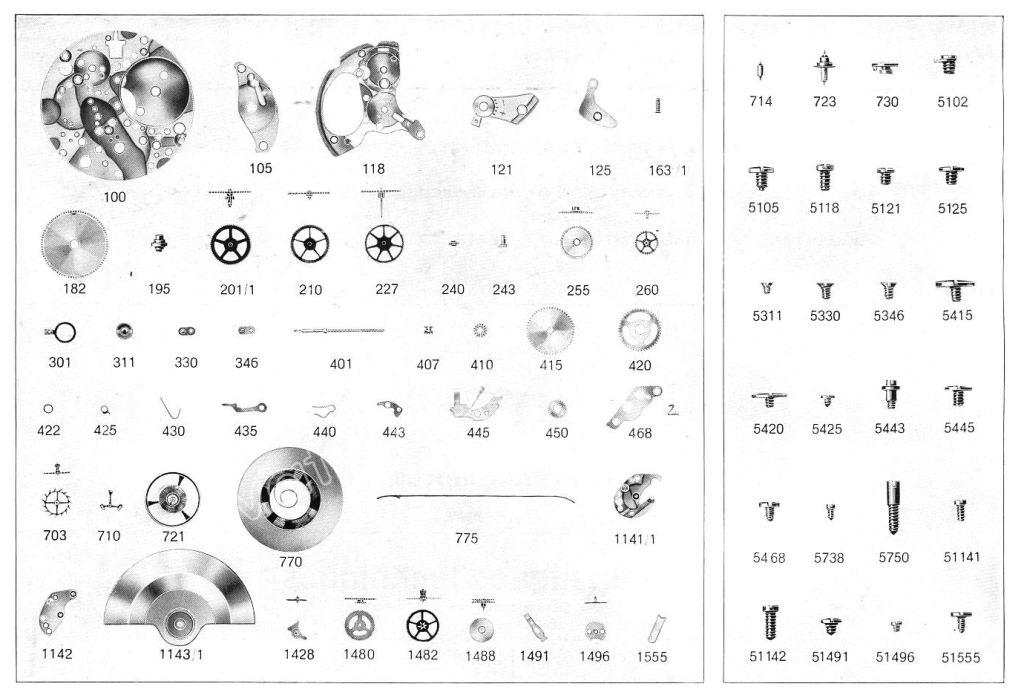

A Schild – AS Calibre 1985 Watch spares Parts List
| A Schild – AS Calibre 1885 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1885 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1885 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1885 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1885 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1885 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1885 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1885 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1885 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1885 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1885 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1885 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1885 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1885 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1885 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1885 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1885 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1885 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1885 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1885 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1885 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1885 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1885 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1885 – Part No. 770 Mainspring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 775 Brake spring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1141/1 Lower bridge for automatic device (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1142 Upper bridge for automatic device (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1143/1 Oscillating weight, mounted (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1428 Stop click (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1480 Winding-up wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1482 Driving gear for crown wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1488 Pawl winding wheel, complete (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1496 Oscillating weight axle (NOS) |
| A Schild – AS Calibre 1885 – Part No. 1555 Bolt for winding-up wheel (NOS) |

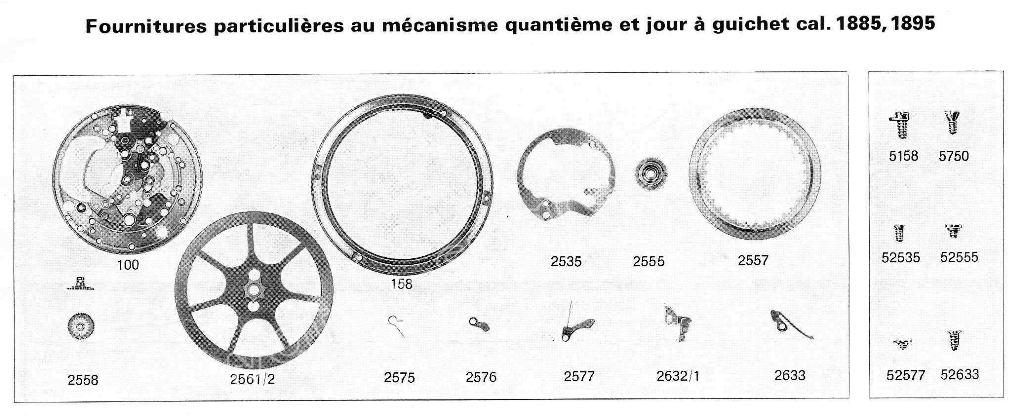

| A Schild – AS Calibre 1885 – Part No. 2535 Date indicator guard (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2555 Calendar driving wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2557 Date indicator (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2558 Double-toothing hour wheel (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2561/2 Day star with disk not transferred (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2575 Date Jumper spring (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2576 Date Jumper (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2577 Day jumper (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2632/1 Unlocking yoke for date indicator, mounted (NOS) |
| A Schild – AS Calibre 1885 – Part No. 2633 Unlocking yoke for date indicator (NOS) |
A. Schild (AS) Calibre 1885 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1885 is a vintage Swiss automatic mechanical movement celebrated for its robust performance and versatile complications. Produced around the 1980s, this calibre is distinguished by its sweep seconds, automatic winding, day and date display with quickset functions, making it a practical choice for mid-to-late 20th-century wristwatches.
Key Technical Highlights
Calibre: AS 1885
Movement Type: Automatic, mechanical
Diameter: 31.00 mm (13.75 lignes)
Height: Approximately 5.25 mm
Jewels: 17, 21, or 25 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (vph)
Power Reserve: About 42 hours
Functions: Hours, minutes, central sweep seconds, day (two languages, quickset), date (quickset by changing time between 20:20 and midnight)
Shock Protection: Vintage anti-shock system (typically Incabloc)
Rotor: Ball-bearing type rotor with a sophisticated excenter self-winding mechanism
Notable: No hairspring stud; hairspring clamped directly on terminal
Common Spare Parts and Components
Mainspring and Barrel: Deliver steady power; original or new-old-stock (NOS) mainsprings ensure consistent torque and longevity.
Balance Wheel and Balance Staff: Precision components vital for accurate timekeeping; must be exact fits with appropriate shock protection.
Rotor Assembly and Bearings: Key to smooth automatic winding; worn rotors or bearings require high-quality or NOS replacement parts.
Pallet Fork and Escape Wheel: Escapement parts prone to wear; sourcing original or quality NOS components preserves reliable operation.
Gear Train Wheels (Minute, Third, Fourth): Often replaced due to wear or damage; typically sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit precisely to allow smooth winding, time, day, and date setting. Winding stems like Part No. 401 are compatible.
Jewels: Synthetic ruby bearings positioned to reduce friction; replacements must match original layout exactly.
Hands and Dial Components: Period-correct parts help maintain vintage originality and collector appeal.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts clearly specified for AS 1885 to ensure compatibility and preserve movement quality.
Handle delicate components such as the balance assembly, escapement, and rotor with care during servicing.
Apply modern synthetic watch oils sparingly, following vintage lubrication protocols for longevity and optimal performance.
Always verify the calibre number stamped on the main plate before ordering parts to avoid mismatches.
Donor AS 1885 movements are valuable sources for rare or worn components.
Why AS 1885 Spare Parts Matter
Authentic parts preserve the calibre’s accuracy, reliability, and effective automatic winding, key for dependable daily wear.
Proper servicing with genuine parts maintains the historical significance and collectible value of these classic Swiss automatic watches.
Well-documented technical specifications and an active watchmaker community support efficient parts sourcing and expert repair.
Maintaining the A. Schild AS 1885 calibre with quality, authentic spare parts is essential for keeping these vintage automatics running smoothly while honoring their place in Swiss horological history.
