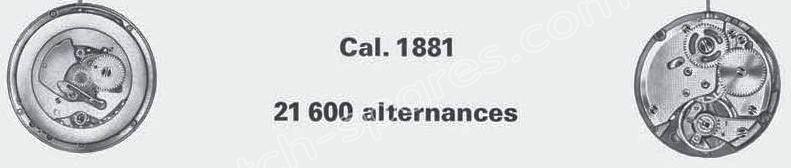

A Schild – AS Calibre 1881 Watch spare parts

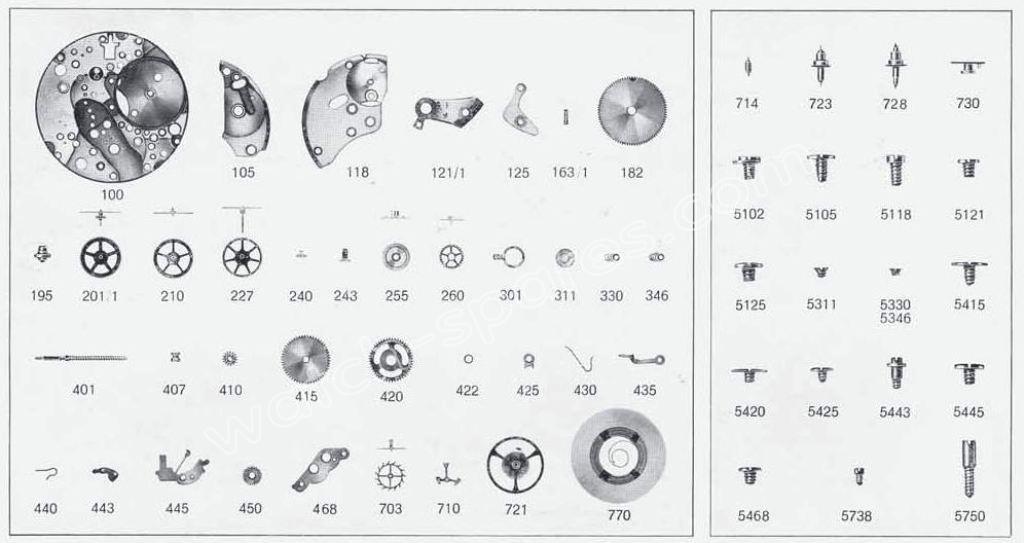

| A Schild – AS Calibre 1881 – Part No. 100 plate |
| A Schild – AS Calibre 1881 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1881 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 1881 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1881 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1881 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 1881 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1881 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1881 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 1881 – Part No. 210 Third wheel |
| A Schild – AS Calibre 1881 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 1881 – Part No. 240 Cannon pinion with clam notch |
| A Schild – AS Calibre 1881 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 1881 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1881 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1881 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1881 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1881 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1881 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1881 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1881 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1881 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1881 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1881 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1881 – Part No. 425 Click |
| A Schild – AS Calibre 1881 – Part No. 430 Click spring |
| A Schild – AS Calibre 1881 – Part No. 435 Yoke |
| A Schild – AS Calibre 1881 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1881 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1881 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1881 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1881 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 1881 – Part No. 703 Escape wheel and pinion |
| A Schild – AS Calibre 1881 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1881 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 1881 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1881 – Part No. 730 Roller |
| A Schild – AS Calibre 1881 – Part No. 770 Mainspring |

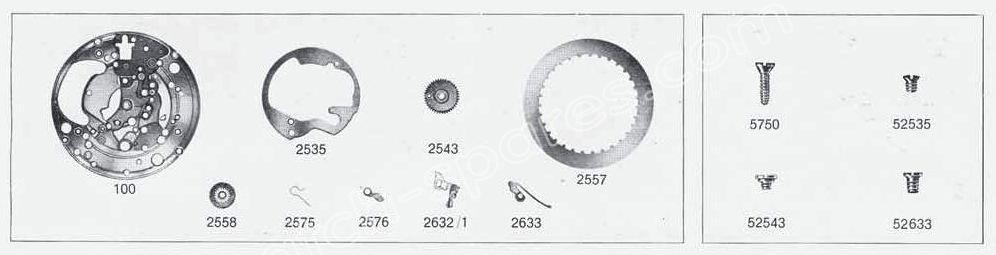

| A Schild – AS Calibre 1881 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 1881 – Part No. 2543 lntermediate date wheel |
| A Schild – AS Calibre 1881 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 1881 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 1881 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 1881 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 1881 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 1881 – Part No. 2633 Unlocking yoke for date indicator |
A. Schild (AS) Calibre 1861 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1861 is a vintage Swiss manual-wind mechanical chronograph movement known for its precision, reliability, and classic design. While it is related to the famous Omega Caliber 1861 (based on Lemania 1873), the AS 1861 itself is notable for manual winding chronograph watches. Proper maintenance with quality spare parts is essential for preserving these vintage timepieces.
Key Technical Highlights
Calibre: AS 1861
Movement Type: Manual winding mechanical chronograph
Diameter: Approximately 26–27 mm (11.5 lignes)
Height: Around 6.87 mm (similar to Omega 1861)
Jewels: 17 to 18 synthetic ruby jewels
Beat Rate: 21,600 vibrations per hour (3 Hz)
Power Reserve: About 46 to 48 hours
Functions: Chronograph (central seconds, 30-minute counter), hours, minutes, small seconds
Shock Protection: Vintage anti-shock system
Lift Angle: 52°
Common Spare Parts and Components
Mainspring and Barrel: Critical for steady and reliable power delivery; original or NOS mainsprings ensure consistent torque and durability.
Balance Wheel and Balance Staff: Precise components needed for accurate timekeeping and shock resilience; replacements must be exact fits.
Chronograph Mechanism Parts: Include column wheel, coupling lever, chronograph brake (often made from Delrin or similar polymers), and minute recorder components; high-quality parts critical for smooth chrono operation.
Pallet Fork and Escape Wheel: Wear-prone escapement parts; sourcing original or NOS components maintains smooth and reliable operation.
Gear Train Wheels (Minute, Third, Fourth): Frequently replaced due to wear or damage; typically sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Accurate fitting parts essential for smooth winding, time setting, and chronograph controls.
Jewels: Synthetic ruby bearings arranged to minimize friction; replacements should match original layout exactly.
Hands and Dial Components: Period-appropriate parts preserve vintage authenticity and collector appeal.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts clearly marked for AS 1861 or compatible vintage chronograph calibers to ensure proper compatibility.
Handle fragile chronograph components and balance assemblies with care during servicing.
Apply modern synthetic watch oils sparingly, following vintage lubrication standards to optimize performance and longevity.
Always verify the calibre number stamped on the movement main plate before ordering parts to avoid mismatches.
Donor AS 1861 or Lemania 1873 movements can be valuable sources for rare or worn components.
Why AS 1861 Spare Parts Matter
Genuine parts preserve the movement’s chronograph precision, mechanical reliability, and durability, vital for dependable vintage watch function.
Proper servicing with authentic components maintains the historical and collector value of watches using this classic manual-wind chronograph calibre.
Thorough technical documentation and an active watchmaker community support expert repairs and reliable parts sourcing.
Maintaining the A. Schild AS 1861 calibre with quality spare parts ensures these prestigious vintage chronographs continue to perform reliably while preserving their esteemed place in Swiss horology.
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
