A Schild – AS Calibre 1816 Watch spare parts

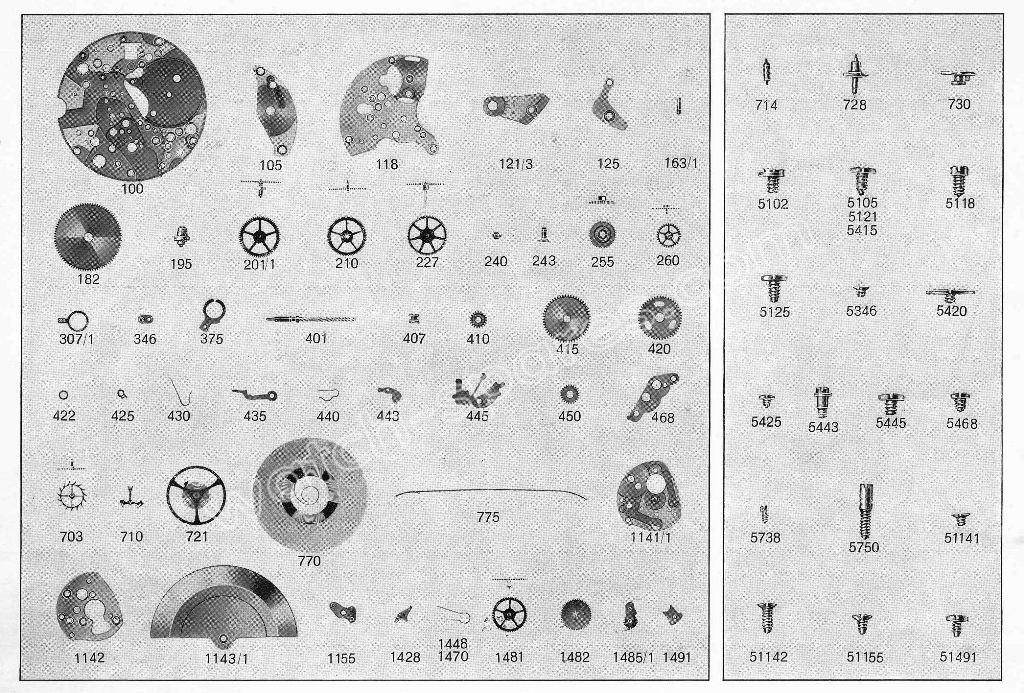

| A Schild – AS Calibre 1816 – Part No. 100 plate |
| A Schild – AS Calibre 1816 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1816 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 1816 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1816 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1816 – Part No. 163/1 Center pipe |
| A Schild – AS Calibre 1816 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1816 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1816 – Part No. 200/1 Large driving wheel |
| A Schild – AS Calibre 1816 – Part No. 210 Third wheel |
| A Schild – AS Calibre 1816 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 1816 – Part No. 240 Cannon pinion with clam notch |
| A Schild – AS Calibre 1816 – Part No. 243 Cannon pinion without clam notch |
| A Schild – AS Calibre 1816 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1816 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1816 – Part No. 307/1 Regulator for adjustable stud holder |
| A Schild – AS Calibre 1816 – Part No. 375 Adlustable stud holder |
| A Schild – AS Calibre 1816 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1816 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1816 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1816 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1816 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1816 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1816 – Part No. 425 Click |
| A Schild – AS Calibre 1816 – Part No. 430 Click spring |
| A Schild – AS Calibre 1816 – Part No. 435 Yoke |
| A Schild – AS Calibre 1816 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1816 – Part No. 443/1 Setting lever |
| A Schild – AS Calibre 1816 – Part No. 445/1 Setting Iever spring |
| A Schild – AS Calibre 1816 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1816 – Part No. 468 Cannon pinion guard |
| A Schild – AS Calibre 1816 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1816 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1816 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 1816 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1816 – Part No. 730 Roller |
| A Schild – AS Calibre 1816 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1816 – Part No. 775 Brake spring |
| A Schild – AS Calibre 1816 – Part No. 1141/1 Lower bridge for automatic device |
| A Schild – AS Calibre 1816 – Part No. 1142 Upper bridge for automatic device |
| A Schild – AS Calibre 1816 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 1816 – Part No. 1155 Lower cock for reduclion gear |
| A Schild – AS Calibre 1816 – Part No. 1428 Stop click |
| A Schild – AS Calibre 1816 – Part No. 1448 Stop click spring NOS) |
| A Schild – AS Calibre 1816 – Part No. 1470 Reverser spring |
| A Schild – AS Calibre 1816 – Part No. 1481 Reducrion gear |
| A Schild – AS Calibre 1816 – Part No. 1482 Driving gear for crown wheel |
| A Schild – AS Calibre 1816 – Part No. 1485/1 Reverser, mounled |
| A Schild – AS Calibre 1816 – Part No. 1491 Oscillating weight bolt |

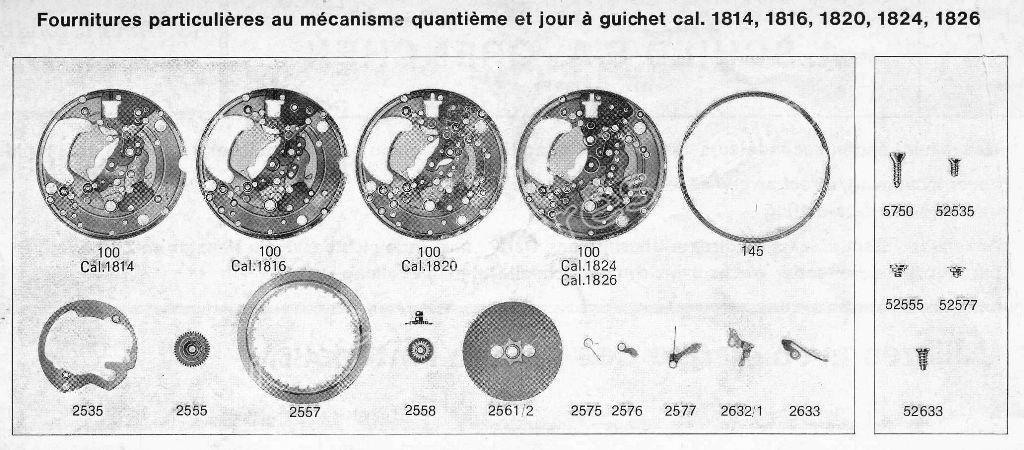

| A Schild – AS Calibre 1816 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 1816 – Part No. 2555 Date indicator guard |
| A Schild – AS Calibre 1816 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 1816 – Part No. 2558 Double-toothing hour wheel |
| A Schild – AS Calibre 1816 – Part No. 2561/2 Day star with disk not transferred |
| A Schild – AS Calibre 1816 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 1816 – Part No. 2576 Date Jumper |
| A Schild – AS Calibre 1816 – Part No. 2577 Day jumper |
| A Schild – AS Calibre 1816 – Part No. 2632/1 Unlocking yoke for date indicator, mounted |
| A Schild – AS Calibre 1816 – Part No. 2633 Unlocking yoke for date indicator |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
A. Schild (AS) Calibre 1816 Watch Spare Parts: Technical Overview and Sourcing Guide

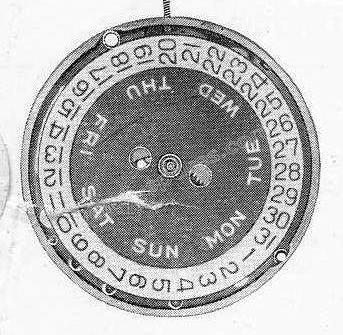

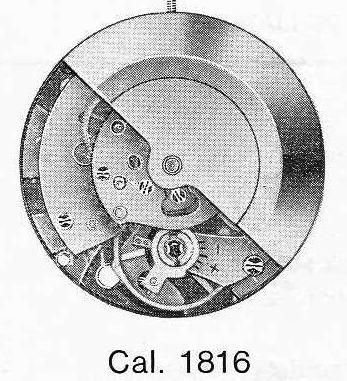

A. Schild (AS) Calibre 1816 is a Swiss automatic mechanical movement introduced around 1965, recognized for its robust construction and inclusion of both day and date complications (day at 6 o’clock, date set by changing the time between 20:00 and 24:00). The movement measures 11.5 lignes (25.60mm) in diameter and around 5.95mm in height, available in 17 or 21 jewel variants and operates at 18,000 vibrations per hour (vph).
Key Technical Highlights
Calibre: AS 1816
Movement Type: Automatic, mechanical
Diameter: 25.60mm (11.5 lignes)
Height: Approximately 5.95mm
Jewels: 17 or 21 synthetic ruby jewels
Beat Rate: 18,000 vph
Functions: Hours, minutes, sweep seconds, day at 6h, date set between 20:00–24:00
Shock Protection: Standard for the era
Common Spare Parts and Components
Mainspring and Barrel: Crucial for steady power delivery; NOS (new-old-stock) mainsprings and barrels (e.g., Part No. 182) are available.
Balance Wheel and Balance Staff: Precision parts vital for accurate timekeeping; require perfect fit for shock resistance and reliability.
Rotor Assembly and Bearings: Core to the automatic winding mechanism; ensure replacements are genuine or high-quality NOS for smooth winding.
Pallet Fork and Escape Wheel: Wear-prone; sourcing original or NOS parts maintains escapement integrity.
Gear Train Wheels (Minute, Third, Fourth): Frequently replaced due to wear or damage; commonly sourced from donor movements or parts stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Must match original dimensions for winding, time, and date setting functions.
Jewels: Synthetic rubies designed to reduce friction; replacements must exactly follow the original configuration.
Hands and Dial Components: Period-correct spares (e.g., 1.50 x 0.90 x 0.21mm) uphold vintage authenticity and value.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts specifically marked for AS 1816 to safeguard compatibility and movement quality.
Handle delicate components like the balance, escapement, and rotor assembly with special care during service.
Apply synthetic watch oils sparingly, adhering to vintage lubrication standards for longevity.
Always confirm the calibre number stamped on the main plate before ordering parts to prevent misfits.
Donor AS 1816 movements are invaluable for sourcing rare or worn parts.
Why AS 1816 Spare Parts Matter
Authentic parts maintain the calibre’s accuracy, reliability, and long-term durability—key for daily wear and collector value.
Proper restoration with correct spares preserves the historical significance of these Swiss automatic watches.
Well-documented specifications and a vibrant watchmaker community make finding parts and repair expertise easier.
Maintaining an A. Schild AS 1816 with high-quality, genuine parts ensures this vintage automatic movement performs faithfully and remains a prized piece of Swiss horological heritage.
