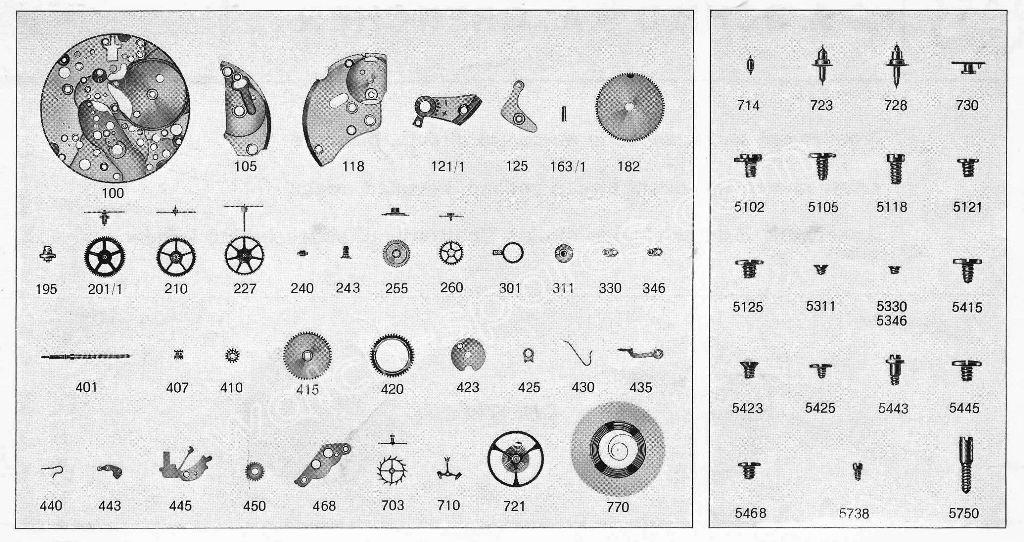

A Schild – AS Calibre 1714 Watch spares Parts List
| A Schild – AS Calibre 1714 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1714 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1714 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1714 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1714 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1714 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1714 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1714 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1714 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1714 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1714 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1714 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1714 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1714 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1714 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1714 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1714 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1714 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1714 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1714 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1714 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1714 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1714 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1714 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1714 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1714 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1714 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1714 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1714 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1714 – Part No. 770 Mainspring (NOS) |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340

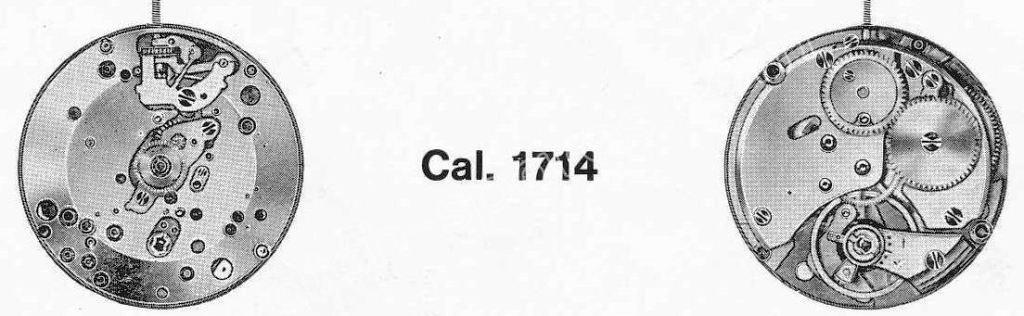

A. Schild (AS) Calibre 1714 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1714 is a vintage Swiss manual-wind mechanical movement, recognized for its compact flat profile and sweep seconds feature. It is valued for reliability and classic design, making it a favored choice for mid-20th-century watch restoration.
Key Technical Highlights
Calibre: AS 1714
Movement Type: Manual winding, mechanical with sweep seconds
Diameter: 25.60 mm (11.5 lignes)
Height: 3.20 mm
Jewels: 17 synthetic ruby jewels
Beat Rate: 18,000 vibrations per hour (vph)
Power Reserve: Approximately 46 hours
Lift Angle: 52 degrees
Functions: Hours, minutes, sweep seconds
Shock Protection: Standard vintage anti-shock system
Common Spare Parts and Components
Mainspring and Barrel: Must closely match original specifications to ensure stable power delivery and optimal torque.
Balance Wheel and Balance Staff: Delicate and precise parts critical for timekeeping accuracy and shock resistance; require exact fit and quality replacement parts.
Pallet Fork and Escape Wheel: Wear-prone escapement components; sourcing original or high-quality new-old-stock (NOS) parts is essential for smooth and reliable operation.
Gear Train Wheels (Minute, Third, Fourth): Frequently replaced due to wear; commonly sourced from NOS stock or donor calibres.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit precisely to guarantee reliable winding and time-setting functionality.
Jewels: Synthetic ruby bearings arranged to reduce friction; replacements must match original layout and count.
Hands and Dial Components: Period-correct parts preserve vintage authenticity and collector value.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts labeled for AS 1714 to ensure perfect fit and maintain movement integrity.
Handle fragile components like balance wheel and escapement with care during servicing.
Apply modern synthetic watch oils sparingly, following vintage lubrication standards to prolong movement life.
Verify the calibre number stamped on the main plate before ordering parts to avoid compatibility issues.
Winding stems and other spare parts are available as original Swiss-made components for this calibre.
Why AS 1714 Spare Parts Matter
Genuine parts preserve the calibre’s accuracy, reliability, and mechanical longevity, crucial for maintaining its classic character.
Proper servicing with authentic components supports the historical value and collector appeal of these vintage manual-wind watches.
The well-documented technical details and active watchmaker community facilitate sourcing and expert repairs.
Maintaining the A. Schild AS 1714 calibre with quality spare parts is essential to keep these refined vintage manual-wind watches running reliably and to preserve their important place in Swiss horology.
