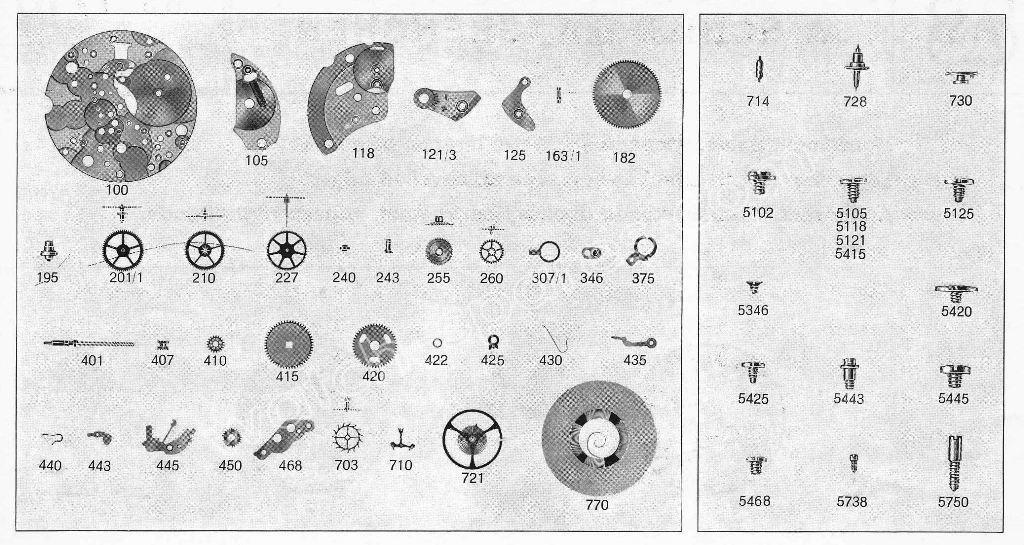

A Schild – AS Calibre 1710 Watch spares Parts List
| A Schild – AS Calibre 1710 – Part No. 100 plate (NOS) |
| A Schild – AS Calibre 1710 – Part No. 105 Barrel bridge (NOS) |
| A Schild – AS Calibre 1710 – Part No. 118 Combined bridge (NOS) |
| A Schild – AS Calibre 1710 – Part No. 121 Balance cock (NOS) |
| A Schild – AS Calibre 1710 – Part No. 125 Pallet cock (NOS) |
| A Schild – AS Calibre 1710 – Part No. 163/1 Center pipe (NOS) |
| A Schild – AS Calibre 1710 – Part No. 182 Barrel and cover (NOS) |
| A Schild – AS Calibre 1710 – Part No. 195 Barrel arbor (NOS) |
| A Schild – AS Calibre 1710 – Part No. 200/1 Large driving wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 210 Third wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 227 Sweep second wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 240 Cannon pinion with clam notch (NOS) |
| A Schild – AS Calibre 1710 – Part No. 243 Cannon pinion without clam notch (NOS) |
| A Schild – AS Calibre 1710 – Part No. 255 Hour wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 260 Minute wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 301 Regulator for flat hairspring (NOS) |
| A Schild – AS Calibre 1710 – Part No. 311 Upper cap jewel with end-piece, for balance (NOS) |
| A Schild – AS Calibre 1710 – Part No. 330 Lower cap jewel with end-piece,for balance (NOS) |
| A Schild – AS Calibre 1710 – Part No. 401 Winding stem (NOS) |
| A Schild – AS Calibre 1710 – Part No. 407 Clutch wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 410 Winding pinion (NOS) |
| A Schild – AS Calibre 1710 – Part No. 415 Ratchet wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 420 Crown wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 422 Crown wheel ring (NOS) |
| A Schild – AS Calibre 1710 – Part No. 425 Click (NOS) |
| A Schild – AS Calibre 1710 – Part No. 430 Click spring (NOS) |
| A Schild – AS Calibre 1710 – Part No. 435 Yoke (NOS) |
| A Schild – AS Calibre 1710 – Part No. 440 Yoke spring (NOS) |
| A Schild – AS Calibre 1710 – Part No. 443 Setting lever (NOS) |
| A Schild – AS Calibre 1710 – Part No. 445 Setting Iever spring (NOS) |
| A Schild – AS Calibre 1710 – Part No. 450 Setting wheel (NOS) |
| A Schild – AS Calibre 1710 – Part No. 468 Cannon pinion guard (NOS) |
| A Schild – AS Calibre 1710 – Part No. 703 Escape wheel and pinion (NOS) |
| A Schild – AS Calibre 1710 – Part No. 710 Jewelled pallet fork (NOS) |
| A Schild – AS Calibre 1710 – Part No. 714 Pallet staff (NOS) |
| A Schild – AS Calibre 1710 – Part No. 721 Complete Balance (NOS) |
| A Schild – AS Calibre 1710 – Part No. 730 Roller (NOS) |
| A Schild – AS Calibre 1710 – Part No. 770 Mainspring (NOS) |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
A. Schild (AS) Calibre 1710 Watch Spare Parts: Technical Overview and Sourcing Guide

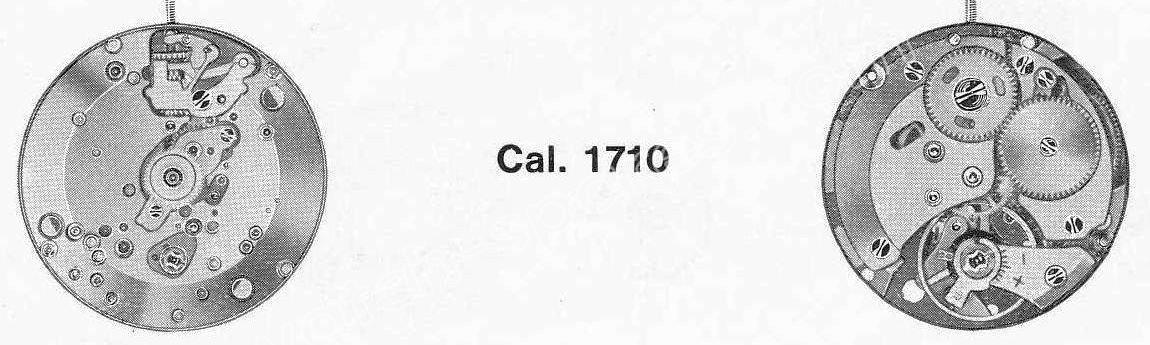

A. Schild (AS) Calibre 1710 is a vintage Swiss manual-wind mechanical movement featuring a sweep seconds hand. Known for its reliability and classic design, this calibre measures approximately 25.60 mm (11.5 lignes) in diameter with a height of about 4.00 mm. It typically contains 17 synthetic ruby jewels and operates at a beat rate of 18,000 vibrations per hour (vph), making it a popular choice for vintage watch collectors and restorers.
Key Technical Highlights
Calibre: AS 1710
Movement Type: Manual winding, mechanical
Diameter: 25.60 mm (11.5 lignes)
Height: 4.00 mm
Jewels: 17 synthetic ruby jewels
Beat Rate: 18,000 vibrations per hour (vph)
Functions: Hours, minutes, sweep seconds
Shock Protection: Standard vintage anti-shock system (typically Incabloc)
Common Spare Parts and Components
Mainspring and Barrel: Vital for energy storage and stable torque; replacements must match original dimensions and strength for consistent power delivery.
Balance Wheel and Balance Staff: Delicate and precision components essential for timing accuracy and shock absorption; require exact fitting and quality replacements.
Pallet Fork and Escape Wheel: Wear-prone escapement parts; sourcing original or high-quality new-old-stock (NOS) ensures smooth functioning.
Gear Train Wheels (Minute, Third, Fourth): Subject to wear and damage; usually sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit precisely for reliable winding and time-setting functionality.
Jewels: Synthetic ruby bearings arranged to minimize friction; replacement jewels must correspond to the original layout and number.
Hands and Dial Components: Period-appropriate parts help maintain vintage authenticity and collector appeal.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts clearly marked for AS 1710 to guarantee compatibility and preserve movement integrity.
Handle delicate parts such as the balance and escapement assemblies with care during servicing to avoid damage.
Apply modern synthetic watch oils sparingly, following vintage lubrication guidelines to maximize movement longevity and performance.
Verify the calibre number stamped on the main plate before ordering parts to avoid mismatches.
Donor movements can be valuable sources for hard-to-find or worn components.
Why AS 1710 Spare Parts Matter
Authentic parts preserve the calibre’s accuracy, mechanical reliability, and vintage character essential for proper function.
Proper servicing with genuine components extends the movement’s longevity and maintains collector value.
The well-documented technical details and active vintage watchmaker community facilitate accurate parts sourcing and expert servicing.
Maintaining the A. Schild AS 1710 calibre with quality spare parts is essential to keep these classic manual-wind watches running reliably and preserving their historic Swiss heritage.
