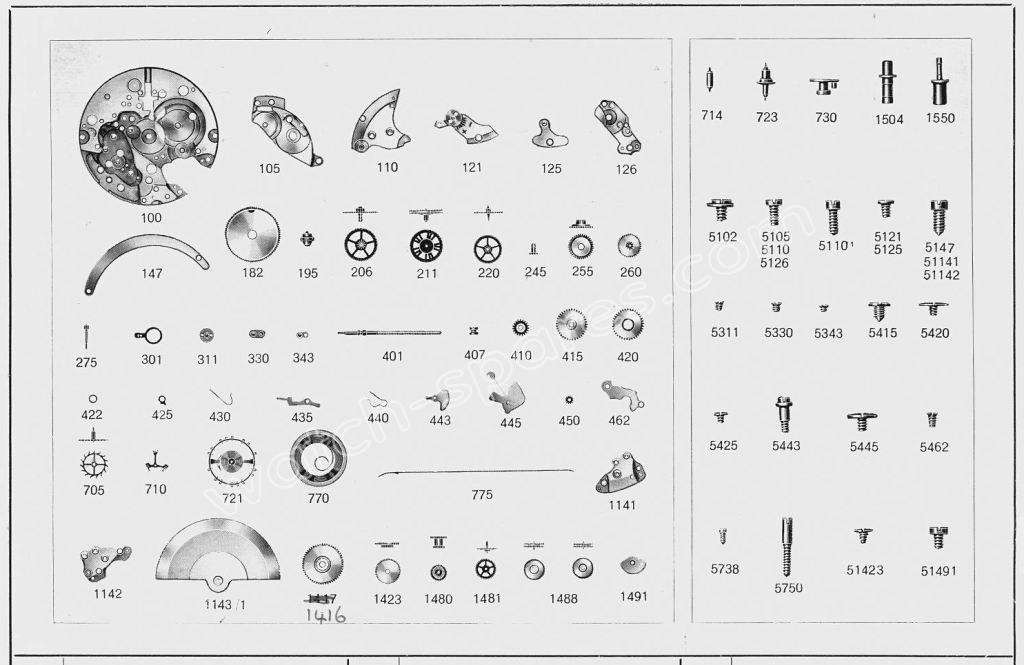

A Schild – AS Calibre 1673 Watch spare parts
| A Schild – AS Calibre 1673 – Part No. 100 plate |
| A Schild – AS Calibre 1673 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1673 – Part No. 118 Combined bridge |
| A Schild – AS Calibre 1673 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1673 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1673 – Part No. 126 Center wheel cock |
| A Schild – AS Calibre 1673 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1673 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1673 – Part No. 206 Center wheel |
| A Schild – AS Calibre 1673 – Part No. 210 Third wheel |
| A Schild – AS Calibre 1673 – Part No. 227 Sweep second wheel |
| A Schild – AS Calibre 1673 – Part No. 245 Cannon pinion |
| A Schild – AS Calibre 1673 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1673 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1673 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1673 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1673 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1673 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1673 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1673 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1673 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1673 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1673 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1673 – Part No. 425 Click |
| A Schild – AS Calibre 1673 – Part No. 430 Click spring |
| A Schild – AS Calibre 1673 – Part No. 435 Yoke |
| A Schild – AS Calibre 1673 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1673 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1673 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1673 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1673 – Part No. 468 Minute wheel cock |
| A Schild – AS Calibre 1673 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1673 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1673 – Part No. 714 Pallet staff |
| A Schild – AS Calibre 1673 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1673 – Part No. 730 Roller |
| A Schild – AS Calibre 1673 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1673 – Part No. 775 Brake spring |
| A Schild – AS Calibre 1673 – Part No. 1141 Lower bridge for automatic device |
| A Schild – AS Calibre 1673 – Part No. 1142 Upper bridge for automatic device |
| A Schild – AS Calibre 1673 – Part No. 1143/1 Oscillating weight, mounted |
| A Schild – AS Calibre 1673 – Part No. 1416 Lower ratchet wheel NOS) |
| A Schild – AS Calibre 1673 – Part No. 1481 Reduction gear |
| A Schild – AS Calibre 1673 – Part No. 1482 Driving gear for ratchet wheel |
| A Schild – AS Calibre 1673 – Part No. 1488 Pawl winding wheel, complete |
| A Schild – AS Calibre 1673 – Part No. 1496 Oscillating weight axle |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340

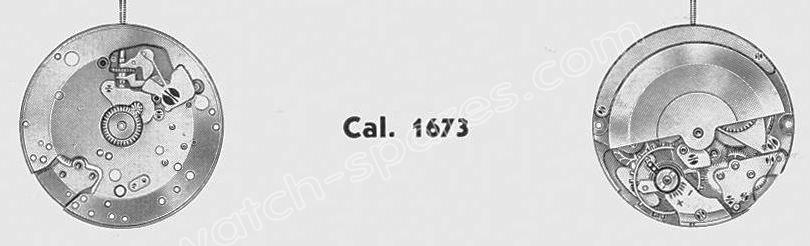

A. Schild (AS) Calibre 1673 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1673 is a vintage Swiss automatic mechanical movement produced between 1955 and 1963. It is valued for its reliability, classic design, and efficient self-winding mechanism. The calibre measures 26 mm (11.5 lignes) in diameter, with a height around 4.5 mm, and operates at 18,000 vibrations per hour (vph). It typically contains 17 to 25 synthetic ruby jewels, depending on the version, and has a power reserve of approximately 40 hours.
Key Technical Highlights
Calibre: AS 1673
Movement Type: Automatic, self-winding mechanical
Diameter: 26 mm (11.5 lignes)
Height: Approximately 4.5 mm
Jewels: 17, 21, or 25 synthetic ruby jewels (varies by version)
Beat Rate: 18,000 vibrations per hour (vph)
Power Reserve: About 40 hours
Shock Protection: Incabloc or equivalent
Functions: Hours, minutes, automatic winding
Production Period: Circa 1955–1963
Common Spare Parts and Components
Mainspring and Barrel: Vital to store and deliver stable power; replacements must exactly match original specs for durability and proper torque.
Balance Wheel and Balance Staff: Delicate, precision parts essential for timing accuracy and shock resistance; require exact fit and compatible shock protection.
Rotor Assembly and Bearings: Crucial for smooth automatic winding; worn rotor bearings or axles need precise compatible replacements.
Pallet Fork and Escape Wheel: Wear-prone escapement components; sourcing original or quality new-old-stock (NOS) parts enhances reliability.
Gear Train Wheels (Minute, Third, Fourth): Commonly replaced due to wear; often sourced from donor movements or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit perfectly for reliable winding and time-setting functions.
Jewels: Synthetic ruby bearings reduce friction; replacements must correspond to original count and arrangement.
Hands and Dial Components: Period-correct to maintain vintage authenticity and collector appeal.
Sourcing and Maintenance Tips
Use original, NOS, or donor parts specifically marked for AS 1673 to secure compatibility and preserve movement integrity.
Handle delicate components, especially balance and rotor assemblies, with care during servicing.
Apply modern synthetic watch oils sparingly following vintage lubrication standards to maximize longevity.
Always verify the calibre number stamped on the main plate before ordering to avoid incompatibility.
Why AS 1673 Spare Parts Matter
Authentic or precisely compatible parts preserve the calibre’s accuracy, automatic winding efficiency, and reliability.
Proper restoration maintains the historical significance and collector value of these classic Swiss automatic watches.
The well-documented design and active watchmaker community support facilitate parts sourcing and expert servicing.
Maintaining the A. Schild AS 1673 calibre with quality spare parts is essential for keeping these vintage automatic movements running reliably and authentically, ensuring their continued appreciation in Swiss horology.
