A Schild – AS Calibre 1608 Watch spare parts

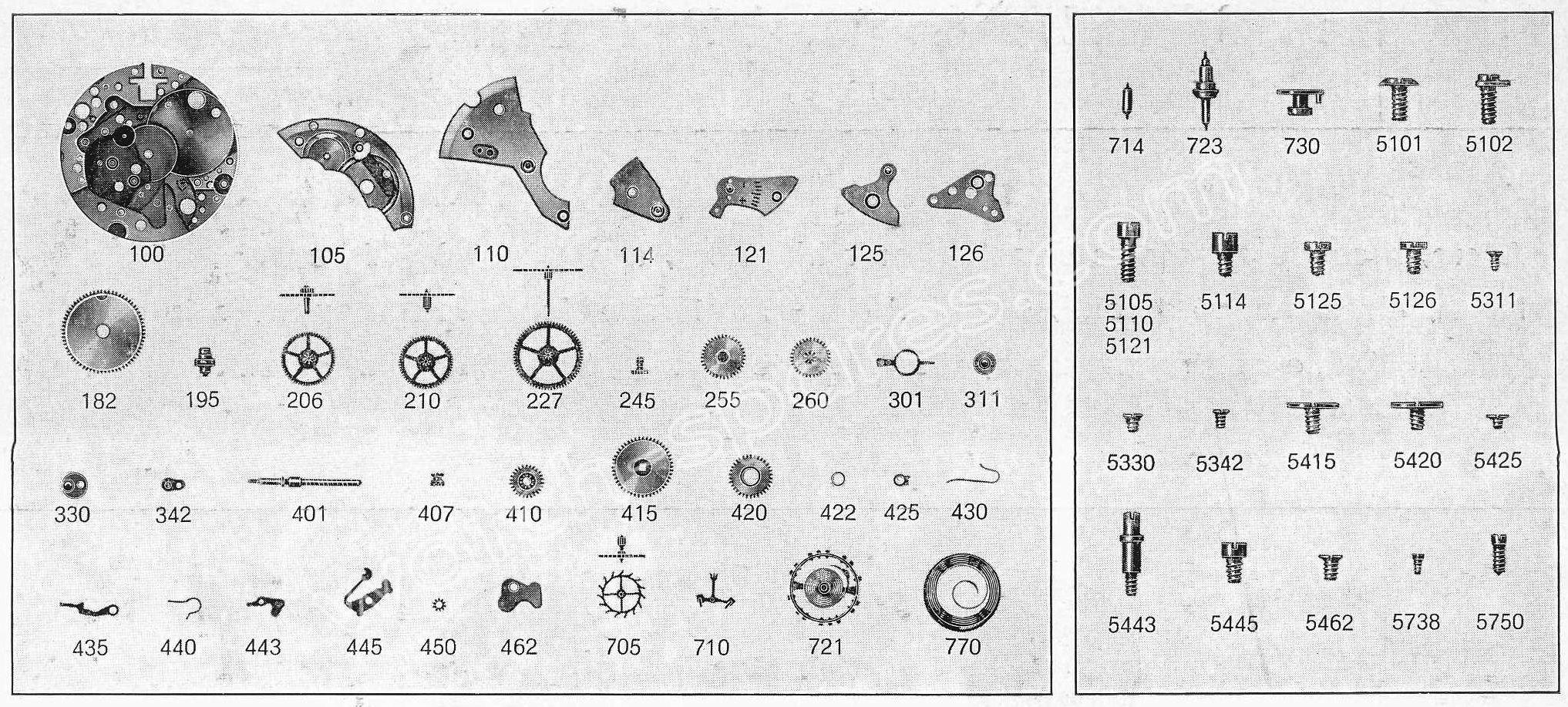

| A Schild – AS Calibre 1608 – Part No. 100 plate |
| A Schild – AS Calibre 1608 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1608 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 1608 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1608 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1608 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1608 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1608 – Part No. 201 Center wheel |
| A Schild – AS Calibre 1608 – Part No. 210 Third wheel |
| A Schild – AS Calibre 1608 – Part No. 224 Fourth wheel |
| A Schild – AS Calibre 1608 – Part No. 240 Cannon pinion |
| A Schild – AS Calibre 1608 – Part No. 250 Hour wheel |
| A Schild – AS Calibre 1608 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1608 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1608 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1608 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1608 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1608 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1608 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1608 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1608 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1608 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1608 – Part No. 425 Click |
| A Schild – AS Calibre 1608 – Part No. 430 Click spring |
| A Schild – AS Calibre 1608 – Part No. 435 Yoke |
| A Schild – AS Calibre 1608 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1608 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1608 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1608 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1608 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1608 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1608 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1608 – Part No. 770 Mainspring |

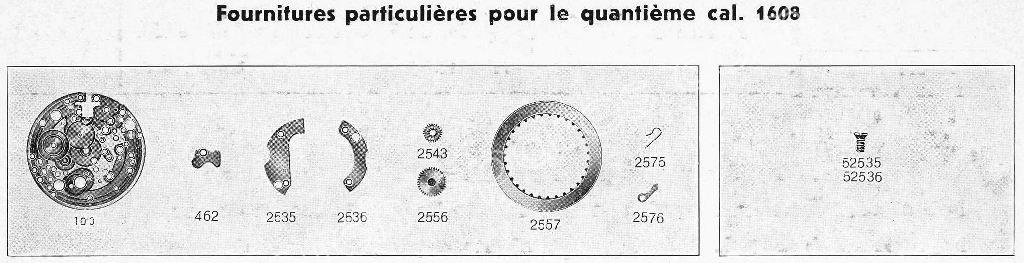

| A Schild – AS Calibre 1608 – Part No. 2535 Date indicator guard |
| A Schild – AS Calibre 1608 – Part No. 2543 Inteimediate date wheel |
| A Schild – AS Calibre 1608 – Part No. 2551 Date plate |
| A Schild – AS Calibre 1608 – Part No. 2556 Date indicator driving wheel |
| A Schild – AS Calibre 1608 – Part No. 2557 Date indicator |
| A Schild – AS Calibre 1608 – Part No. 2575 Date Jumper spring |
| A Schild – AS Calibre 1608 – Part No. 2576 Date Jumper |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
Mobile/WhatsApp: +91- 9841 360 340
A. Schild (AS) Calibre 1608 Watch Spare Parts: Technical Overview and Sourcing Guide

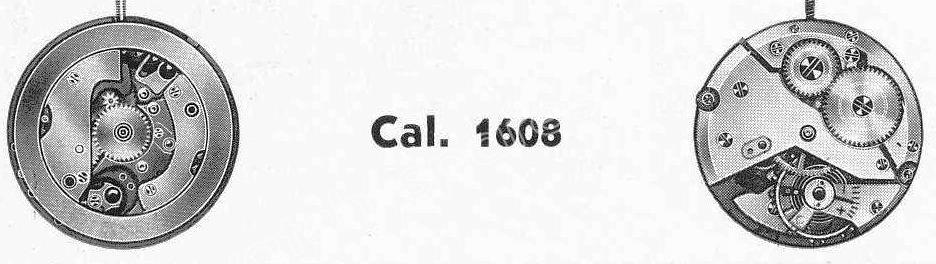

A. Schild (AS) Calibre 1608 is a vintage Swiss manual-wind mechanical movement distinguished by its compact size and reliable sweeping seconds functionality. Produced as a small calibre movement, it is favored by collectors and watchmakers working on vintage watches requiring precise restoration.
Key Technical Highlights
Calibre: AS 1608
Movement Type: Manual winding, mechanical
Diameter: Approximately 19.4 mm (8.75 lignes)
Jewels: 17 synthetic ruby jewels
Beat Rate: 18,000 vibrations per hour (vph)
Functions: Hours, minutes, sweeping seconds
Notable Feature: Compact size suitable for smaller watches
Common Spare Parts and Components
Mainspring and Barrel: Critical for stable power delivery; replacement springs must match original specifications for reliable torque and duration.
Balance Wheel and Balance Staff: Delicate precision parts essential for timing accuracy; require exact fit and shock compatibility.
Pallet Fork and Escape Wheel: Escapement components prone to wear, best replaced with original or high-quality new-old-stock (NOS) parts to maintain smooth operation.
Gear Train Wheels: Includes minute, third, and fourth wheels that may experience wear or damage; often sourced from donor calibres or NOS stock.
Setting Mechanism (Stem, Crown, Levers, Springs): Must fit exactly for reliable winding and time-setting functions.
Jewels: Synthetic ruby bearings reduce friction; replacements must match the original arrangement and count.
Hands and Dial Components: Vintage-correct parts help preserve authenticity and collector value.
Sourcing and Maintenance Tips
Always use original, NOS, or donor parts specifically marked for the AS 1608 calibre to ensure compatibility and preserve movement integrity.
Handle delicate components like the balance assembly and escapement carefully during servicing due to their small size and sensitivity.
Apply modern synthetic watch oils sparingly, adhering to vintage lubrication standards to ensure longevity and optimal performance.
Verify the calibre number stamped on the main plate before ordering parts to avoid mismatches.
Why AS 1608 Spare Parts Matter
Using authentic or precise compatible parts maintains the calibre’s accuracy, reliability, and operational longevity.
Proper restoration with genuine parts preserves the historical character and collector appeal of vintage small-format manual-wind watches.
The well-documented AS 1608 design facilitates easier sourcing and expert servicing within the vintage watchmaker community.
Maintaining the A. Schild AS 1608 calibre with quality spare parts is essential to keep these refined vintage watches running reliably and authentically.
