A Schild – AS Calibre 1590 Watch spare parts

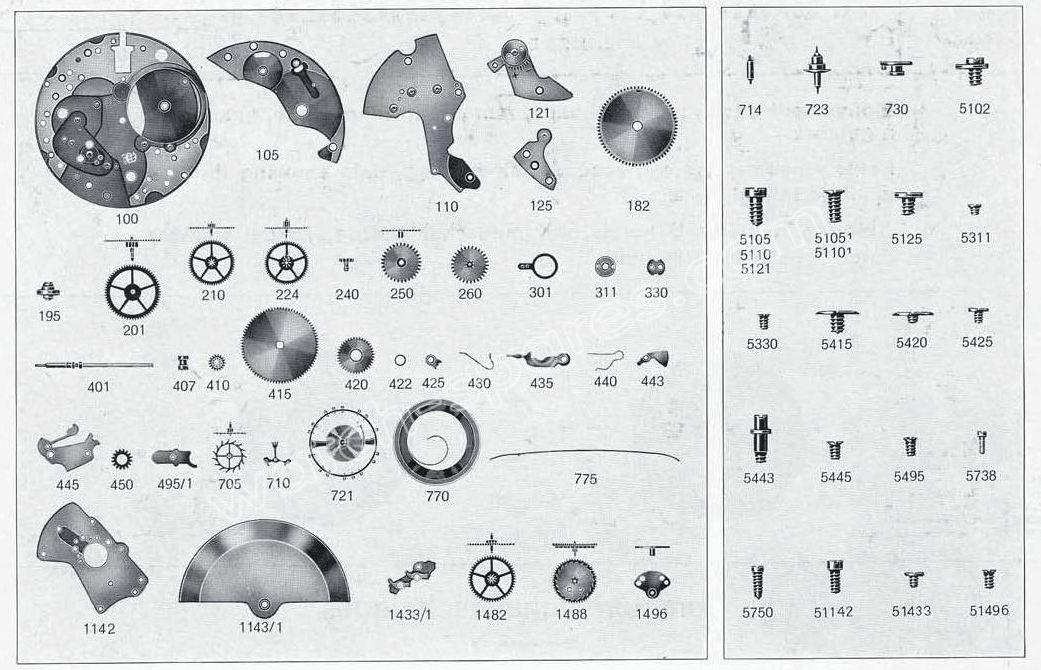

| A Schild – AS Calibre 1590 – Part No. 100 plate |
| A Schild – AS Calibre 1590 – Part No. 105 Barrel bridge |
| A Schild – AS Calibre 1590 – Part No.110 Train-wheel bridge |
| A Schild – AS Calibre 1590 – Part No. 121 Balance cock |
| A Schild – AS Calibre 1590 – Part No. 125 Pallet cock |
| A Schild – AS Calibre 1590 – Part No. 182 Barrel and cover |
| A Schild – AS Calibre 1590 – Part No. 195 Barrel arbor |
| A Schild – AS Calibre 1590 – Part No. 201 Center wheel |
| A Schild – AS Calibre 1590 – Part No. 206 Center wheel and pinion drilled |
| A Schild – AS Calibre 1590 – Part No. 210 Third wheel and pinion |
| A Schild – AS Calibre 1590 – Part No. 227 Sweep second wheel and pinion |
| A Schild – AS Calibre 1590 – Part No. 245 Cannon pinion for sweep second |
| A Schild – AS Calibre 1590 – Part No. 255 Hour wheel |
| A Schild – AS Calibre 1590 – Part No. 260 Minute wheel |
| A Schild – AS Calibre 1590 – Part No. 301 Regulator for flat hairspring |
| A Schild – AS Calibre 1590 – Part No. 311 Upper cap jewel with end-piece, for balance |
| A Schild – AS Calibre 1590 – Part No. 330 Lower cap jewel with end-piece,for balance |
| A Schild – AS Calibre 1590 – Part No. 343 Bearing Plate for Sweep second wheel |
| A Schild – AS Calibre 1590 – Part No. 401 Winding stem |
| A Schild – AS Calibre 1590 – Part No. 407 Clutch wheel |
| A Schild – AS Calibre 1590 – Part No. 410 Winding pinion |
| A Schild – AS Calibre 1590 – Part No. 415 Ratchet wheel |
| A Schild – AS Calibre 1590 – Part No. 420 Crown wheel |
| A Schild – AS Calibre 1590 – Part No. 422 Crown wheel ring |
| A Schild – AS Calibre 1590 – Part No. 425 Click |
| A Schild – AS Calibre 1590 – Part No. 430 Click spring |
| A Schild – AS Calibre 1590 – Part No. 435 Yoke |
| A Schild – AS Calibre 1590 – Part No. 440 Yoke spring |
| A Schild – AS Calibre 1590 – Part No. 443 Setting lever |
| A Schild – AS Calibre 1590 – Part No. 445 Setting Iever spring |
| A Schild – AS Calibre 1590 – Part No. 450 Setting wheel |
| A Schild – AS Calibre 1590 – Part No. 462 Minute work cock |
| A Schild – AS Calibre 1590 – Part No. 495/1 Screw gib |
| A Schild – AS Calibre 1590 – Part No. 705 Escape wheel and pinion |
| A Schild – AS Calibre 1590 – Part No. 710 Jewelled pallet fork |
| A Schild – AS Calibre 1590 – Part No. 721 Complete Balance |
| A Schild – AS Calibre 1590 – Part No. 770 Mainspring |
| A Schild – AS Calibre 1590 – Part No. 775 Brake spring |
| A Schild – AS Calibre 1590 – Part No. 1142 Bridge for automatic device |
| A Schild – AS Calibre 1590 – Part No. 1143/1 Oscillating weight mounted |
| A Schild – AS Calibre 1590 – Part No. 1433/1 Click holder mounted |
| A Schild – AS Calibre 1590 – Part No. 1482 Driving gear for ratchet wheel |
| A Schild – AS Calibre 1590 – Part No. 1488 Pawl winding wheel, complete |
| A Schild – AS Calibre 1590 – Part No. 1496 Oscillating weight axle |
You can confirm the order by making a PayPal payment. My account email address is [email protected]
Watch Parts Enquiry
* If you are unable to fill out any of the required information fields, please type “N/A”.
Stem, Crown, Hands & Spares might be available for this movement.
Email us for rate and availability: [email protected]
A. Schild (AS) Calibre 1590 Watch Spare Parts: Technical Overview and Sourcing Guide
A. Schild (AS) Calibre 1590 is a vintage Swiss automatic mechanical movement notable for its reliable automatic winding system, compact design, and useful features such as small seconds and date display. It is a classic mid-20th-century calibre highly regarded among collectors and watchmakers restoring vintage automatic wristwatches.
Key Technical Highlights
Calibre: AS 1590
Movement Type: Automatic, self-winding mechanical
Diameter: Approximately 29.0 mm (13 lignes)
Height: Around 4.1 mm
Jewels: Typically 17 to 21 synthetic ruby jewels
Beat Rate: 18,000 vibrations per hour (vph)
Power Reserve: About 40 hours
Functions: Central hours and minutes, small seconds subdial at 6 o’clock, date window at 3 o’clock
Shock Protection: Equipped with Incabloc or similar anti-shock system
Production Era: Mid-20th century
Common Spare Parts and Components
Mainspring and Barrel: Essential for energy storage and smooth power delivery; replacements must precisely match original specs to maintain consistent torque.
Balance Wheel and Balance Staff: Critical for accurate timekeeping and shock resistance; require precise fit and high-quality replacements.
Rotor Assembly and Bearings: Integral to automatic winding; rotor bearings or axle replacements must be compatible to maintain winding efficiency.
Pallet Fork and Escape Wheel: Wear-prone escapement components; sourcing original or trusted new-old-stock (NOS) parts helps ensure reliability.
Gear Train Wheels (Minute, Third, Fourth): Often subject to wear or damage; donor movements and NOS parts are typical sources.
Setting Mechanism (Stem, Crown, Levers, Springs): Necessary for smooth winding, time, and date setting; must fit AS 1590 specifications exactly.
Jewels: Synthetic ruby bearings arranged to reduce friction; replacements must match original count and placement.
Hands and Dial Components: Period-correct parts help preserve vintage authenticity and collector appeal.
Sourcing and Maintenance Tips
Prefer original, NOS, or donor parts explicitly designated for AS 1590 to guarantee compatibility and authenticity.
Donor AS 1590 movements serve as valuable resources for rare or worn components.
Handle delicate parts like the balance wheel, rotor assembly, and escapement carefully during servicing.
Use modern synthetic watch oils sparingly and adhere to vintage lubrication standards to extend movement life.
Always verify the calibre number stamped on the main plate before ordering spare parts to avoid mismatches.
Why AS 1590 Spare Parts Matter
Using authentic or precise compatible parts preserves the calibre’s accuracy, automatic winding reliability, and longevity.
Proper part sourcing maintains the historical value and collector appeal of vintage Swiss automatic watches.
The AS 1590’s well-documented technical profile and community support facilitate easier sourcing and expert servicing.
Maintaining the A. Schild AS 1590 calibre with quality spare parts is vital for keeping these dependable vintage automatic movements running reliably and preserving their classic Swiss watchmaking heritage.
