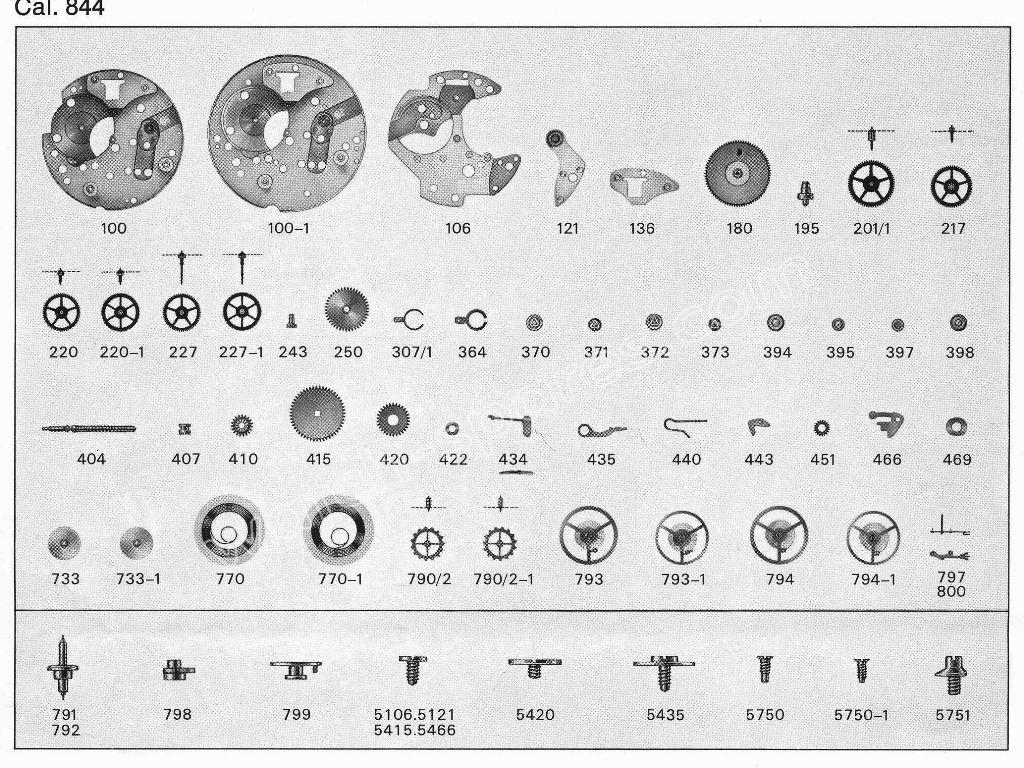

BFG- Baumgartner 844 Watch Movement spare parts
| BFG- Baumgartner 844 – Part No. 100 Plate 10 1/2”’ |
| BFG- Baumgartner 844 – Part No. 100-1 Plate 12”’ |
| BFG- Baumgartner 844 – Part No. 106 3/4 Plate bridge |
| BFG- Baumgartner 844 – Part No. 121 Balance cock |
| BFG- Baumgartner 844 – Part No. 136 Stem cock |
| BFG- Baumgartner 844 – Part No. 180 Barrel with arbor |
| BFG- Baumgartner 844 – Part No. 195 Barrel arbor |
| BFG- Baumgartner 844 – Part No. 201/1 Large driving wheel and pinion without cannon pinion |
| BFG- Baumgartner 844 – Part No. 217 Third wheel and pinion |
| BFG- Baumgartner 844 – Part No. 220 Fourth wheel and pinion without second hand bit 18000 A/h |
| BFG- Baumgartner 844 – Part No. 227 Sweep second wheel and Pinion 18000 A/h |
| BFG- Baumgartner 844 – Part No. 243 Cannon pinion |
| BFG- Baumgartner 844 – Part No. 250 Hour wheel |
| BFG- Baumgartner 844 – Part No. 307/1 Regulator for adjustable stud holder,for flat hairspring |
| BFG- Baumgartner 844 – Part No. 364 Stud holder for flat hairspring |
| BFG- Baumgartner 844 – Part No. 370 Antishock jewelled, upper |
| BFG- Baumgartner 844 – Part No. 371 Antishock jewelled, lower |
| BFG- Baumgartner 844 – Part No. 372 Antishock non jewelled, upper |
| BFG- Baumgartner 844 – Part No. 373 Antishock non jewelled, lower |
| BFG- Baumgartner 844 – Part No. 374 Antishock 1 jewel, upper |
| BFG- Baumgartner 844 – Part No. 394 Bushing jewelled, upper |
| BFG- Baumgartner 844 – Part No. 395 Bushing jewelled, lower |
| BFG- Baumgartner 844 – Part No. 397 Bushing nonjewelled, lower |
| BFG- Baumgartner 844 – Part No. 398 Bushing nonjewelled, upper |
| BFG- Baumgartner 844 – Part No. 404 Winding stem for waterproof case |
| BFG- Baumgartner 844 – Part No. 407 Clutch wheel |
| BFG- Baumgartner 844 – Part No. 410 Winding pinion |
| BFG- Baumgartner 844 – Part No. 415 Ratchet wheel |
| BFG- Baumgartner 844 – Part No. 420 Crown wheel |
| BFG- Baumgartner 844 – Part No. 422 Crown wheel ring |
| BFG- Baumgartner 844 – Part No. 434 Click spring |
| BFG- Baumgartner 844 – Part No. 435 Yoke |
| BFG- Baumgartner 844 – Part No. 440 Yoke spring |
| BFG- Baumgartner 844 – Part No. 443 Setting lever |
| BFG- Baumgartner 844 – Part No. 451 Setting wheel for minute wheel |
| BFG- Baumgartner 844 – Part No. 466 Lid for winding and setting mechanisms |
| BFG- Baumgartner 844 – Part No. 469 Hour wheel guard |
| BFG- Baumgartner 844 – Part No. 733 Colleted hairspring 18000 A/h |
| BFG- Baumgartner 844 – Part No. 733-1 Colleted hairspring 21 600 A/h |
| BFG- Baumgartner 844 – Part No. 770 Mainspring 18000 A/h |
| BFG- Baumgartner 844 – Part No. 770-1 Mainspring 21 600 Aih |
| BFG- Baumgartner 844 – Part No. 790-2 Escape wheel 18000 A/h |
| BFG- Baumgartner 844 – Part No. 790/2-1 Escape wheel 21 600 Aih |
| BFG- Baumgartner 844 – Part No. 791 Balance staff for finger |
| BFG- Baumgartner 844 – Part No. 792 Balance staff for roller |
| BFG- Baumgartner 844 – Part No. 793 Balance with roller, regulated 18000 A/h |
| BFG- Baumgartner 844 – Part No. 793-1 Balance with roller, regulated 21 600 Aih |
| BFG- Baumgartner 844 – Part No. 794 Balance with finger, regulated 18000 A/h |
| BFG- Baumgartner 844 – Part No. 794-1 Balance with finger, regulated 21 600 Aih |
| BFG- Baumgartner 844 – Part No. 797 Pin pallet fork for roller |
| BFG- Baumgartner 844 – Part No. 798 Finger |
| BFG- Baumgartner 844 – Part No. 799 Roller |
| BFG- Baumgartner 844 – Part No. 800 Pin pallet fork for finger |
| BFG- Baumgartner 844 – Part No. 5106 3/4 Plate bridge screw |
| BFG- Baumgartner 844 – Part No. 5121 Balance cock screw |
| BFG- Baumgartner 844 – Part No. 5415 Ratchet wheel screw |
| BFG- Baumgartner 844 – Part No. 5420 Crown wheel screw |
| BFG- Baumgartner 844 – Part No. 5435 Yoke screw |
| BFG- Baumgartner 844 – Part No. 5466 Lid screw, for winding and setting mechanisms |
| BFG- Baumgartner 844 – Part No. 5750 Dial screw 101/2”’ |
| BFG- Baumgartner 844 – Part No. 5750 -1 Dial screw 12”’ |
| BFG- Baumgartner 844 – Part No. 5751 Dial key |
BFG – Baumgartner 844 Watch Spare Parts: Detailed Overview

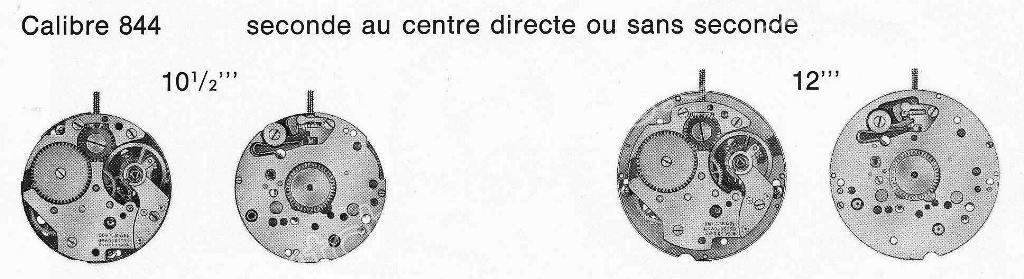

The Baumgartner BFG 844 is a Swiss manual winding watch movement well-regarded for its reliability and classic mechanical design. Typically sized at 10 1/2 lignes (approx. 23.6–23.95 mm diameter), this calibre features a pin lever escapement and basic timekeeping functions with optional date versions.
Key Features and Specifications
Calibre: BFG 844
Movement Type: Mechanical, manual winding
Escapement: Pin lever
Beat Rate: 18,000 vibrations per hour (vph)
Jewels: Variants with 1, 2, or up to 17 jewels
Functions: Hour and minute hands, optional sweeping seconds, and date (CLD variants)
Construction: Pillar construction with yoke winding system
Shock Protection: KIF Trior for balance
Balance: Nickel anular balance beating at 18,000 A/h
Common Spare Parts
Mainspring and Barrel: Original and New Old Stock (NOS) mainsprings and barrels ensure consistent power delivery.
Balance Assembly: Including staff, balance wheel, and regulator crucial for precision and shock resistance.
Pallet Fork and Escape Wheel: Escapement components requiring exact fit for smooth operation.
Gear Train Wheels: Minute, third, and fourth wheels along with cannon pinions.
Setting Mechanism: Includes stems, crowns, clutch and winding levers.
Date Mechanism: Date wheels, correctors, and related springs for CLD variants.
Hands and Dial Components: Authentic or suitable replacements maintain vintage aesthetics.
Screws and Bridges: Structural components key to movement integrity.
Maintenance and Sourcing Tips
Confirm the BFG 844 calibre marking before purchasing parts to ensure compatibility.
Use NOS or donor parts for optimum fit and durability.
Apply lubrication sparingly during servicing, following vintage watch care standards.
Specialist suppliers provide a wide range of Baumgartner BFG 844 parts.
Importance of Genuine Parts
Ensures long-term accuracy, mechanical reliability, and original condition of the watch.
Preserves collector and historical value.
Supports proper restoration and ongoing serviceability.
Using genuine parts to maintain your Baumgartner BFG 844 safeguards its legacy and guarantees dependable performance.
