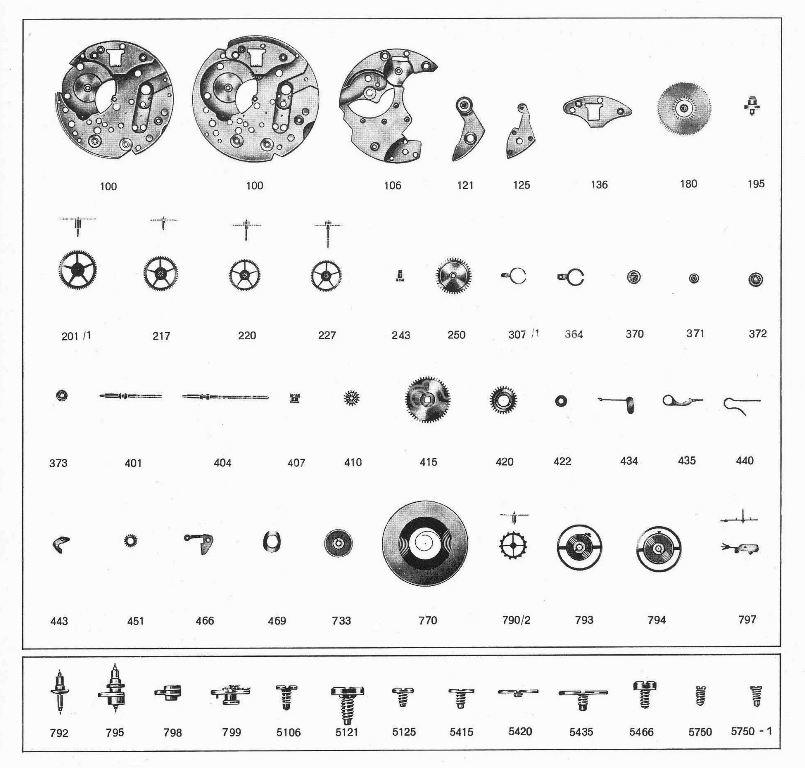

BFG- Baumgartner 896 Watch Movement spare parts
| BFG- Baumgartner 896 – Part No. 100 Plate 10.1/2”’ |
| BFG- Baumgartner 896 – Part No. 100 Plate 11.1/2”’ |
| BFG- Baumgartner 896 – Part No. 106 3/4 plate bridge |
| BFG- Baumgartner 896 – Part No. 121 Balance cock |
| BFG- Baumgartner 896 – Part No. 125 Pin pallet cock |
| BFG- Baumgartner 896 – Part No. 136 Stem cock |
| BFG- Baumgartner 896 – Part No. 180 Barrel with arbor |
| BFG- Baumgartner 896 – Part No. 195 Barrel arbor |
| BFG- Baumgartner 896 – Part No. 201/1 Large driving wheel and pinion without cannon pinion |
| BFG- Baumgartner 896 – Part No. 217 Third wheel and pinion, for upper end-piece |
| BFG- Baumgartner 896 – Part No. 220 Fourth wheel and pinion without second hand bit |
| BFG- Baumgartner 896 – Part No. 227 Sweep second wheel and Pinion |
| BFG- Baumgartner 896 – Part No. 243 Cannon pinion |
| BFG- Baumgartner 896 – Part No. 250 Hour wheel |
| BFG- Baumgartner 896 – Part No. 260 Minute wheel |
| BFG- Baumgartner 896 – Part No. 307/1 Regulator for adjustable stud holder,for flat hairspring |
| BFG- Baumgartner 896 – Part No. 364 Stud holder for flat hairspring |
| BFG- Baumgartner 896 – Part No. 370 Antishock jewelled, upper |
| BFG- Baumgartner 896 – Part No. 371 Antishock jewelled, lower |
| BFG- Baumgartner 896 – Part No. 372 Antishock 2 jewels, upper |
| BFG- Baumgartner 896 – Part No. 373 Antishock 1 jewel, lower |
| BFG- Baumgartner 896 – Part No. 401 Winding stem |
| BFG- Baumgartner 896 – Part No. 404 Winding stem for waterproof case |
| BFG- Baumgartner 896 – Part No. 407 Clutch wheel |
| BFG- Baumgartner 896 – Part No. 410 Winding pinion |
| BFG- Baumgartner 896 – Part No. 415 Ratchet wheel |
| BFG- Baumgartner 896 – Part No. 420 Crown wheel |
| BFG- Baumgartner 896 – Part No. 422 Crown wheel ring |
| BFG- Baumgartner 896 – Part No. 434 Click spring |
| BFG- Baumgartner 896 – Part No. 435 Yoke |
| BFG- Baumgartner 896 – Part No. 440 Yoke spring |
| BFG- Baumgartner 896 – Part No. 443 Setting lever |
| BFG- Baumgartner 896 – Part No. 451 Setting wheel for minute wheel |
| BFG- Baumgartner 896 – Part No. 466 Lid for winding and setting mechanisms |
| BFG- Baumgartner 896 – Part No. 469 Hour wheel guard |
| BFG- Baumgartner 896 – Part No. 733 Colleted hairspring |
| BFG- Baumgartner 896 – Part No. 770 Mainspring |
| BFG- Baumgartner 896 – Part No. 790/2 Pin escape wheel for upper end-piece |
| BFG- Baumgartner 896 – Part No. 792 Balance staff for roller |
| BFG- Baumgartner 896 – Part No. 793 Balance with roller, regulated |
| BFG- Baumgartner 896 – Part No. 794 Balance with finger, regulated |
| BFG- Baumgartner 896 – Part No. 795 Balahce staff with finger |
| BFG- Baumgartner 896 – Part No. 797 Pin pallet fork for roller and fork for finger |
| BFG- Baumgartner 896 – Part No. 798 Finger |
| BFG- Baumgartner 896 – Part No. 799 Roller |
| BFG- Baumgartner 896 – Part No. 5106 3/4 plate bridge screw |
| BFG- Baumgartner 896 – Part No. 5121 Balance cock screw |
| BFG- Baumgartner 896 – Part No. 5125 Pin pallet cock screw |
| BFG- Baumgartner 896 – Part No. 5415 Ratchet wheel screw |
| BFG- Baumgartner 896 – Part No. 5420 Crown wheel screw |
| BFG- Baumgartner 896 – Part No. 5466 Lid screw, for winding and setting mechanisms |
| BFG- Baumgartner 896 – Part No. 5750 Dial screw, aside |
| BFG- Baumgartner 896 – Part No. 5750-1 Dial screw |

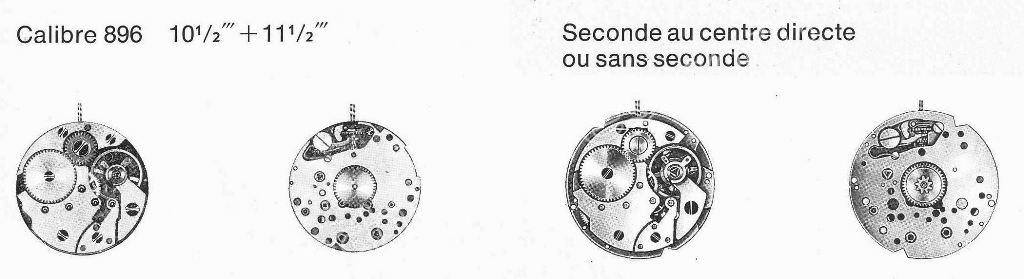

BFG – Baumgartner 896 Watch Spare Parts: Essential Overview
The Baumgartner BFG 896 is a simple, reliable Swiss manual winding movement known for its sturdy pin lever escapement and classic mechanical design. It was produced in several versions, including models with one or two jewels, and some with additional calendar functions (CLD and CLDD variants).
Key Specifications
Calibre: BFG 896
Movement Type: Mechanical manual wind
Size: 10 1/2 lignes (approx. 23.6 mm to 25.6 mm diameter depending on variant)
Beat Rate: 18,000 vibrations per hour (vph)
Jewels: 1 or 2 synthetic jewels
Escapement: Pin lever
Balance: Nickel anular balance without shock protection
Lift Angle: 45°
Winding Mechanism: Yoke winding system
Power Reserve: Approx. 40 hours
Functions: Sweep seconds; optional date (CLD) and day-date (CLDD) complications
Common Spare Parts
Mainspring and Barrel: Genuine or NOS mainsprings designed to ensure consistent power delivery.
Balance Assembly: Balance wheel, staff, regulator for precise timekeeping and stability.
Escape Wheel and Pallet Fork: Core escapement components essential for smooth operation.
Gear Train: Including center, third, and fourth wheels for power transmission.
Setting and Winding Components: Stem, crown, yoke, setting lever, click, and springs for smooth winding and setting.
Day-Date Mechanism (CLDD): Date and day rings, locking levers, springs, and correctors.
Hands and Dial Components: Vintage-style replacements for authentic restoration.
Screws, Bridges, and Plates: Structural parts stabilizing and supporting the movement.
Maintenance and Sourcing Tips
Always verify the BFG 896 calibre marking on the movement before ordering spare parts.
Use NOS or donor movements for hard-to-find components to ensure compatibility.
Handle day-date mechanisms carefully during servicing to prevent damage.
Apply light, appropriate lubrication following vintage watch servicing best practices.
Specialist vintage watch parts suppliers offer a broad selection of Baumgartner BFG 896 parts.
Importance of Genuine Spare Parts
Genuine parts guarantee long-lasting accuracy, durability, and reliable function.
Preserve the watch’s collector value and historical integrity.
Authentic spares are critical for proper restoration and ongoing maintainability.
Maintaining your Baumgartner BFG 896 with authentic spare parts assures dependable performance and respects its esteemed position in Swiss mechanical watchmaking.
